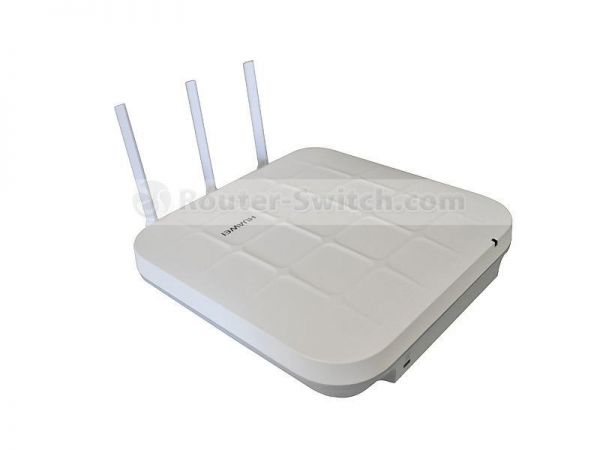

AP5130DN-USA

Product Number

AP5130DN-USA

Bundle

AC/DC adapter(US),United States

Antenna Type/Antenna Gain

Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi

Maximum Number of Users

≤ 256

Maximum Transmit Power

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

Radio Protocol

802.11a/b/g/n/ac

Maximum Speed

1.75 Gbit/s

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

Maximum Power Consumption

12.95W

Operating Temperature

–10℃ to 50℃

Dimensions (H x W x D)

220 mm x 220 mm x 53 mm

Net Weight

2.2 lb. (1 kg)

①

Default button: Restores factory settings if you hold down the button more than three seconds

②

Console interface

③

GE1: 10M/100M/1,000M interface, connects to the wired Ethernet

④

GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply

⑤

Power input interface: 12V DC

⑥

Security slot: Connects to a security lock and protects the AP against theft

⑦

Dual-band antenna port

Model

AP5130DN-USA

AP5130DN

Dedicated Area

United States

N/A

Maximum Number of Users

≤ 256

≤ 256

Maximum Transmit Power

25 dBm (combined power)

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

3 x 3:3

Radio Protocol

802.11a/b/g/n/ac

802.11a/b/g/n/ac

Maximum Speed

1.75 Gbit/s

1.75 Gbit/s

AP5130DN-USA Specifications

Dedicated Area

United States

Technical

Dimensions (H × W × D)

8.7 in. x 8.7 in. x 2.1 in. (220 mm x 220 mm x 53 mm)

Weight

2.2 lb. (1 kg)

System memory

256 MB DDR2

32 MB flash memory

Power

Power input

DC 12V ± 10%

PoE Power: -48V DC

PoE function in compliance with IEEE 802.3af and 802.3at

Maximum power consumption

12.95W

Note: Actual maximum power consumption depends on local laws and regulations.

Environment

Operating temperature

14^oF to 122^oF (-10^oC to 50^oC)

Storage temperature

-40^oF to 158^oF (-40^oC to 70^oC)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

-196.9 ft. to 13,123.4 ft. (-60m to 5,000m)

Radio specifications

Antenna Type

Built-in

Antenna Gain

2.4G: 3.5 dBi

5G: 4 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm

Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

20 MHz: 3

802.11n

20 MHz: 3

40 MHz: 1

5 GHz

802.11a

20 MHz: 5

802.11n

20 MHz: 5

40 MHz: 2

802.11ac

20 MHz: 5

40 MHz: 2

80 MHz: 1

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s

802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s

Receiver Sensitivity

2.4 GHz

802.11b (CCK)

-96 dBm @ 1 Mbit/s

-91 dBm @ 2 Mbit/s

-92 dBm @ 5.5 Mbit/s

-88 dBm @ 11 Mbit/s

2.4 GHz

802.11g (non-HT20)

-91 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-89 dBm @ 12 Mbit/s

-86 dBm @ 18 Mbit/s

-83 dBm @ 24 Mbit/s

-80 dBm @ 36 Mbit/s

-76 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

2.4 GHz

802.11n (HT20)

-91 dBm @ MCS0

-88 dBm @ MCS1

-86 dBm @ MCS2

-81 dBm @ MCS3

-78 dBm @ MCS4

-74 dBm @ MCS5

-72 dBm @ MCS6

-71 dBm @ MCS7

-89 dBm @ MCS8

-88 dBm @ MCS9

-86 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

2.4 GHz

802.11n (HT40)

-88 dBm @ MCS0

-85 dBm @ MCS1

-83 dBm @ MCS2

-78 dBm @ MCS3

-75 dBm @ MCS4

-71 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-88 dBm @ MCS8

-85 dBm @ MCS9

-82 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-71 dBm @ MCS13

-70 dBm @ MCS14

-68 dBm @ MCS15

5 GHz

802.11a (non-HT20)

-89 dBm @ 6 Mbit/s

-88 dBm @ 9 Mbit/s

-86 dBm @ 12 Mbit/s

-83 dBm @ 18 Mbit/s

-80 dBm @ 24 Mbit/s

-77 dBm @ 36 Mbit/s

-73 dBm @ 48 Mbit/s

-71 dBm @ 54 Mbit/s

5 GHz

802.11n (HT20)

-90 dBm @ MCS0

-85 dBm @ MCS1

-84 dBm @ MCS2

-78 dBm @ MCS3

-75 dBm @ MCS4

-71 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-88 dBm @ MCS8

-88 dBm @ MCS9

-85 dBm @ MCS10

-82 dBm @ MCS11

-79 dBm @ MCS12

-74 dBm @ MCS13

-73 dBm @ MCS14

-71 dBm @ MCS15

5 GHz

802.11n (HT40)

-85 dBm @ MCS0

-82 dBm @ MCS1

-79 dBm @ MCS2

-75 dBm @ MCS3

-72 dBm @ MCS4

-68 dBm @ MCS5

-66 dBm @ MCS6

-64 dBm @ MCS7

-87 dBm @ MCS8

-84 dBm @ MCS9

-81 dBm @ MCS10

-79 dBm @ MCS11

-76 dBm @ MCS12

-71 dBm @ MCS13

-70 dBm @ MCS14

-68 dBm @ MCS15

5 GHz

802.11ac (VTH20)

-89 dBm @ MCS0NSS1

-86 dBm @ MCS1NSS1

-84 dBm @ MCS2NSS1

-80 dBm @ MCS3NSS1

-77 dBm @ MCS4NSS1

-73 dBm @ MCS5NSS1

-71 dBm @ MCS6NSS1

-70 dBm @ MCS7NSS1

-65 dBm @ MCS8NSS1

5 GHz

802.11ac (VTH40)

-85 dBm @ MCS0NSS1

-83 dBm @ MCS1NSS1

-78 dBm @ MCS2NSS1

-77 dBm @ MCS3NSS1

-73 dBm @ MCS4NSS1

-69 dBm @ MCS5NSS1

-68 dBm @ MCS6NSS1

-67 dBm @ MCS7NSS1

-66 dBm @ MCS8NSS1

-60 dBm @ MCS9NSS1

5 GHz

802.11ac (VTH80)

-82 dBm @ MCS0NSS1

-79 dBm @ MCS1NSS1

-77 dBm @ MCS2NSS1

-74 dBm @ MCS3NSS1

-73 dBm @ MCS4NSS1

-66 dBm @ MCS5NSS1

-65 dBm @ MCS6NSS1

-64 dBm @ MCS7NSS1

-59 dBm @ MCS8NSS1

-57 dBm @ MCS9NSS1
