Overview

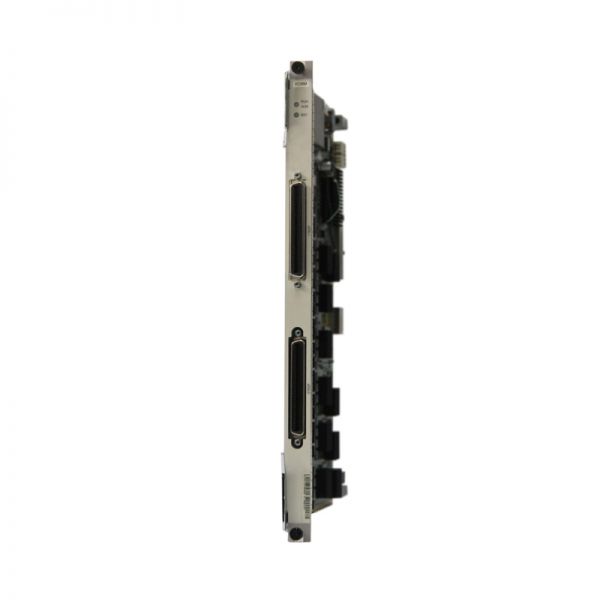

The H80BVCMM is a 48-port VDSL2 over POTS service board. It works with the VDSL transceiver unit-remote end (VTU-R) through the VDSL port to support the VDSL2 service and supporting vectoring.

Quick Spec

Table 1 shows the quick spec.

Models

H80BVCMM

Applicable Line

VDSL2 over POTS

G.INP

Yes

VDSL2 PTM Bonding

Yes (Two-pair, adjacent ports (port IDs: 2n and 2n+1); either port can be specified as the master port. n values 0, 1, 2, and so on.)

INM

Yes

SELT

Yes

MELT

No

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a

Compare to Similar Items

Table 2 shows the comparison.

Models

H805VDMF

H80BVCMM

Applicable Line

VDSL2 over POTS

VDSL2 over POTS

G.INP

Yes

Yes

VDSL2 PTM Bonding

Yes (Two-pair, adjacent ports (port IDs: 2n and 2n+1); either port can be specified as the master port. n values 0, 1, 2, and so on.)

Yes (Two-pair, adjacent ports (port IDs: 2n and 2n+1); either port can be specified as the master port. n values 0, 1, 2, and so on.)

INM

Yes

Yes

SELT

Yes

Yes

MELT

No

No

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a

Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a

Get More Information

Do you have any question about the H80BVCMM

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

H80BVCMM Specification

Applicable Line

VDSL2

G.INP

Yes

VDSL2 PTM Bonding

Yes (Two-pair, any ports (port IDs: 2n and 2m+1); only the port with an even-number ID can be specified as the master port. n and m value 0, 1, 2, and so on.)

INM

Yes

SELT

Yes

MELT

Yes

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, and 17a

Annex Type

G.992.1 Annex A

G.992.3 Annex A/B/J/L/M

G.992.5 Annex A/B/J/M

G.993.2 Annex A/B

Flexible Configuration Modes

Supports TR129, TI, and TR-165/TR-252.

Built-in Splitter

No

Temperature Query and High-temperature Alarm

Yes

Automatic Power Shutdown in Case of a High Temperature

Yes

Connector

Champ 64-pin
