Position：Home / Products / Optical Access Network / Huawei OLT

  • H80DCSPE
  • H80DCSPE

H80DCSPE

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

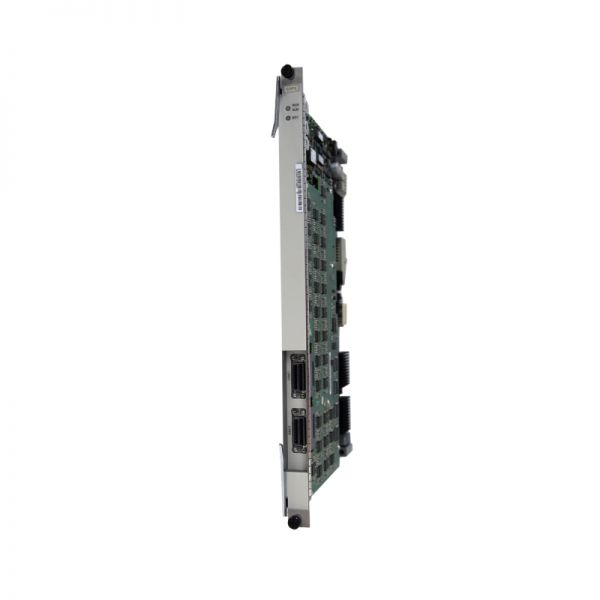

The H80DCSPE board is a 64-port VDSL2 & POTS combo board with the highest density in the industry, providing 64 channels of VDSL2 and POTS access services and supporting SuperVector.

Quick Spec

Table 1 shows the quick spec.

Model

H80DCSPE

Connector

Delander 64-pin

Built-in splitter

600 ohms

Bandwidth

6.4Gbit/s (with SCUN/SCUK)

1Gbit/s (with SCUB)

Maximum Frame Size

PTM: 2000 bytes

ATM: 1800 bytes

IPv6

Supported

N:1 VMAC

Supported

1:1 VMAC

Supported

Product Details

H80DCSPE provides these benefits:

High precision of MELT for POTS lines

Three-in-one solution

Be suitable for scenarios requiring voice and broadband services

Highest density in the industry

Saves space of the telecommunications room

CAPEX and OPEX decrease

- Fewer devices

- Easier engineering

- Less occupied MDF area (1/3 remaining)

- Fewer board types and spare parts

- Lower power consumption

- Easier maintenance

H80DCSPE provides these external interfaces:

2x32 VDSL2 & POTS lines

- G.993.2 (VDSL2 over POTS)

- G.997.1 (physical layer management)

- G.998.2 (Ethernet-based multi-pair bonding)

- G.998.4 (INP for DSL)

- G.994.1 (handshake procedures)

- BF TR-129 (protocol-independent management model)

- BF TR-159 (management framework for xDSL bonding)

Get More Information

Do you have any question about the H80DCSPE

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

H80DCSPE Specification

Connector

Delander 64-pin

Built-in splitter

600 ohms

Bandwidth

• 6.4Gbit/s (with SCUN/SCUK)
• 1Gbit/s (with SCUB)

Maximum frame size

• PTM: 2000 bytes
• ATM: 1800 bytes

IPv6

Supported

N:1 VMAC

Supported

1:1 VMAC

Supported

Operating temperature

-40° C to +65° C

Power consumption (the convergence ratio is 25%)

With 17a profiles:
• Static: 36 W
• Maximum: 100 W

With 35b profiles:
• Static: 36 W
• Maximum: 103 W

Automatic shutdown at high temperature

Supported

Annex

• G.992.1 (Annex A)
• G.992.3 (Annex A/L/M)
• G.992.5 (Annex A/M)
• G.993.2 (Annex A/B)

Profile

8a/8b/8c/8d/12a/12b/17a/35b

VDSL2 PTM Bonding

4 pairs
8 pairs

Line

VDSL2 and POTS combo

Configuration mode

TR129/TR165

Built-in splitter

Supported

Temperature query and high temperature alarm

Supported

G.INP

Supported

INM

Supported

Virtual noise

Supported

VDSL MELT

Not supported

Built-in SELT

Supported

Category

Specification

DSP channel (G.711)

64

Codec

G.711A
G.711U
G.729
G.723
G.726

Polarity of wires a and b

a+ b

Short loop

Supported

Polarity reversal

Supported

16/12 KC

Not supported

Power supply at high voltage (for a long distance)

Supported

Port current

20 mA / 25 mA / 30 mA / 35 mA / 40 mA

POTS MELT

Supported

MELT precision

High
