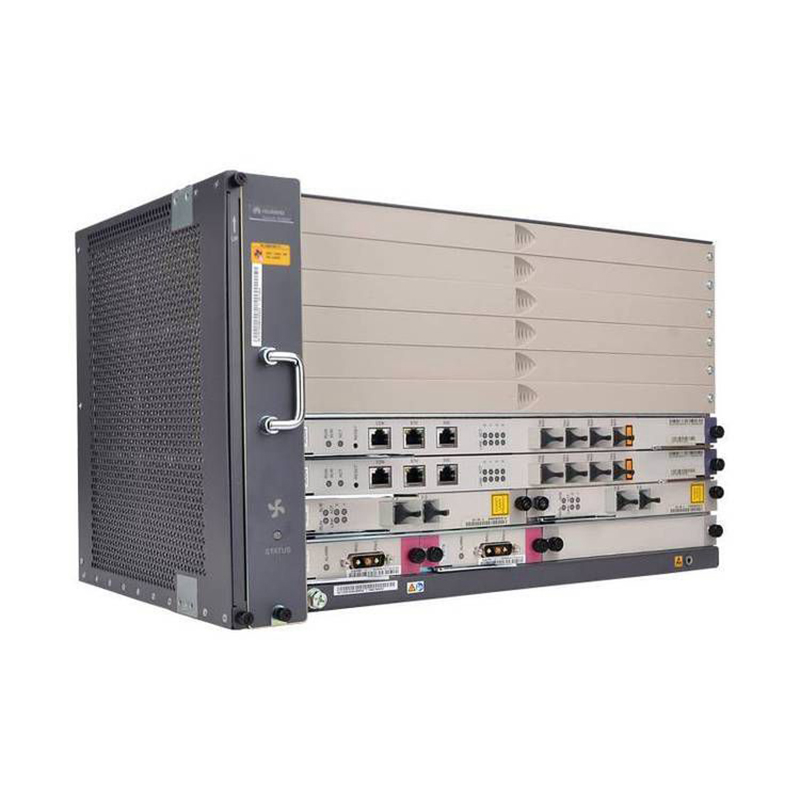

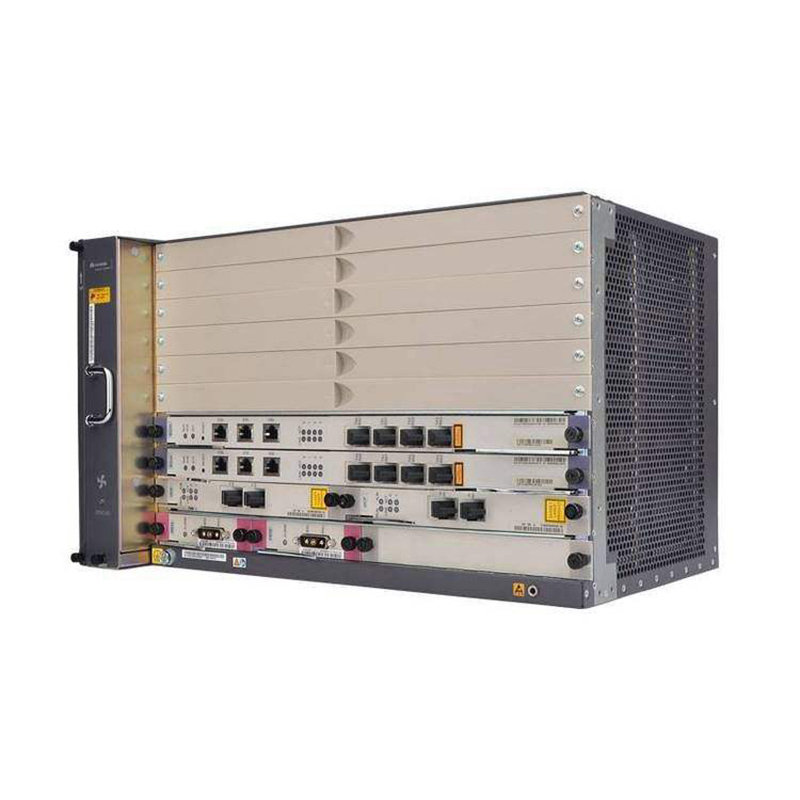

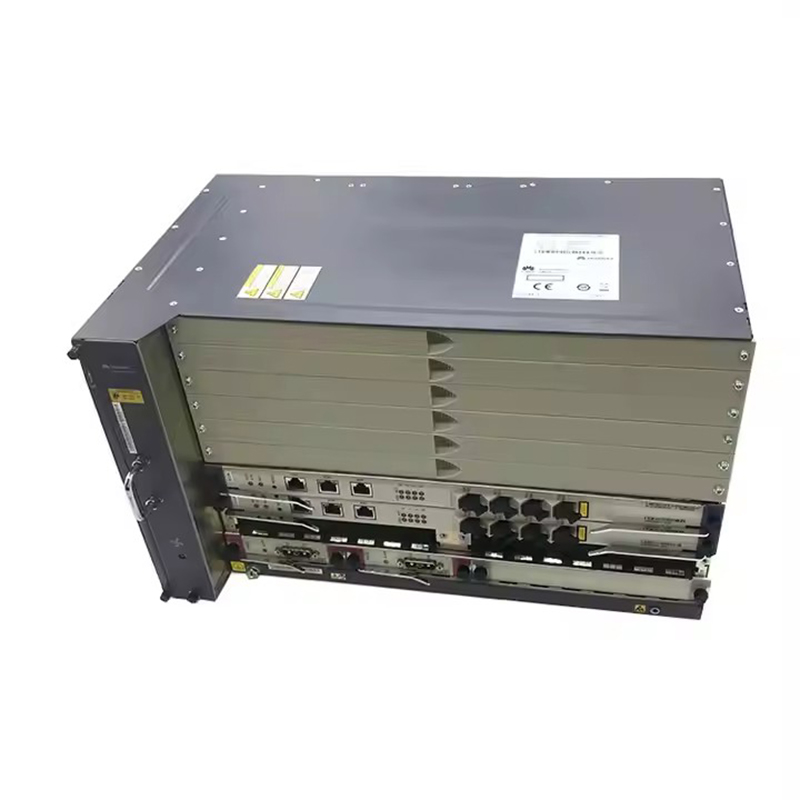

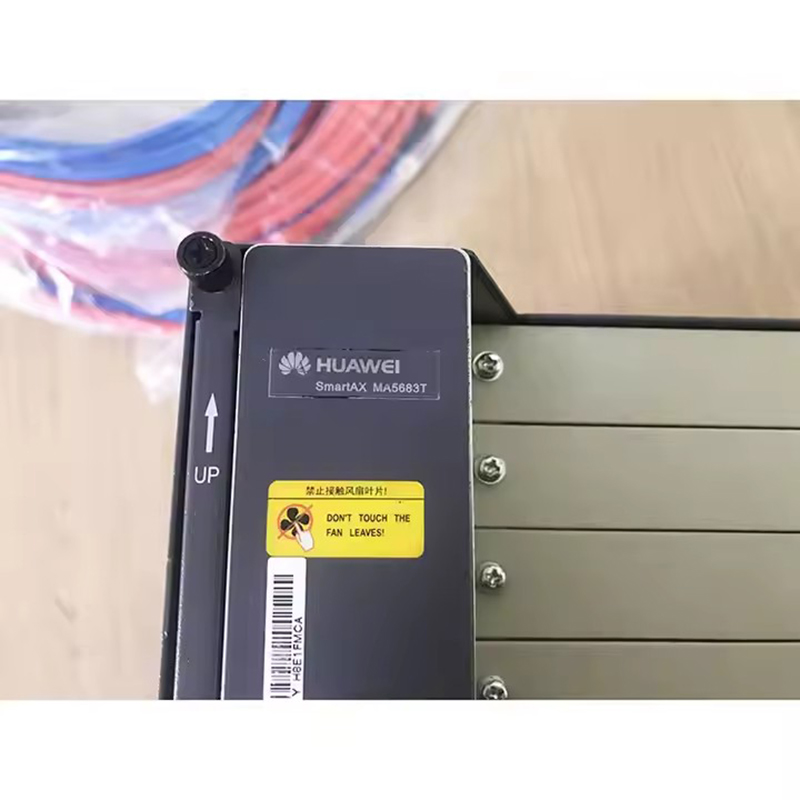

Huawei SmartAX MA5683T GPON OLT

Brand Name: Huawei
Type: Mini OLT
Model Number: MA5683T
Place of Origin: Guangdong, China
Port: 8 ports
Application: FTTH FTTX FTTB Network
Warranty: 1 Year
GTGOG: 8*GPON Port service card
Power Supply: -48V DC (-40V~-57V)
Service: voice/CATV/Ethernet/NGN
GTGHG: 16*GPON Port service card
Uplink Interface: GE/10GE/E1/STM
Dimensions (W x D x H): 442mm*264mm*268.7mm
Function: Distribution Fiber System (FTTH)
Other info: SmartAX Fiber Optic Equipment GPON EPON GEPON Optical Line Terminal OLT MA5683T
Overview

Huawei SmartAX MA5683T OLT is a aggregation Optical Line Terminal (OLT), it supports up to 6 service slots and can support maximum 12,000 subscribers (GPON). MA5683T has GICF/X2CS Uplink Board available for selection, and two power slot redundancy for DC power input. Besides that, Thunder-link.com also offers more bundle line, to meet your different requirement on various scenario. In addition, Thunder-link.com provides self configuration page, where you can configure your own MA5683T by selecting boards and items yourself. With our professional technical support to rich your experience.

Quick Spec

Table 1 shows the quick spec.

Model

MA5608T

(W/D/H) mm

442233.588

Cabinet

Indoor: N63E-22
Outdoor: F01S200

Configuration

control board: 2
Service board: 2
Power interface board: 1

MTBF

45 years

Switching Capacity of
the Backplane Bus

720Gbit/s

Switching Capacity of
the Control Board

N/A

Access Capacity

8*10G GPON
32*GPON
96*GE

Maximum uplink port
(GIU)

-

Product Details

The Huawei SmartAX 5600T provide these features:

  • Huawei MA5683T GPON OLT H802MABO subrack equipped with 2xH801SCUN, 2xH801PRTE
  • Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package
  • Huawei MA5683T GPON OLT system
  • DC power supply
  • Chassis supports 6 Service Slots
  • Two power slot redundancy for DC power input
  • Two slot redundancy for main control board
  • Two slot for uplink board
  • Support 10 GPON, GPON, EPON and P2P service
  • Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
  • Support GPON split ration 1:128
  • Support GE uplink board (GICF) or 10GE uplink board (X2CS)

Feature and Application

1. Aggregate Access:

  • Ultra-high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity;
  • Ultra-high-density cascade capability, maximum support for 44-channel 10GE or 768 GE access, no additional investment aggregation switch.

2. High Reliability:

  • Highly reliable networking capabilities, support OLT dual hot backup, off-site capacity,upgrade business is not interrupted
  • Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers.
  • End-to end high reliability design, uplink support BFD/Smart Link/LACP redundancy protection, support EPON TypeB / TypeD and GPON TypeB / TypeC line protection.

3. Multi-scene access:

  • A variety of E1 line access, support Native TDM or CESoP / SAToP function.
  • Support E-LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications.
  • Support IPTV users without convergence access, single-frame support 8000 multicast users and 4000 multicast channels.

4. Smooth Evolution:

  • EPON / GPON / 10G PON / 40G PON common platform to support smooth evolution, to meet the ultra-wideband access.
  • Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPv6.

5. Green Technology:

  • Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W.
  • Support free board automatic power, fan intelligent speed, effectively reduce the idle power consumption.

Details

1. Control Board (SCUN):
  • H802SCUN the function of each module are as follows:
  • Control module to achieve the management of the board and the business board, and by expanding the serial port and fan frame and other communications.
  • The power supply module provides working power for each function module in the board
  • The clock module provides the working clock for each function module in the board
  • The switch module provides GE /10GE interface to implement services switching and aggregation based on Layer 2 or Layer 3.
  • Provides 4 GE for upstream uplink interface
  • Provide up to 2 GE / 10GE for GE /10GE exchange with each LPU
  • Provide 2 10GE, load sharing with spare H802SCUN(supported by V800R011C00 and above)

2. 1G Uplink Board (GICF):
The basic principles of H801GICF are described below:

  • The control module completes the function control such as software loading, running control, management and so on.
  • Conversion module to achieve data transmission.
  • The power supply module provides working power for each function module in the board.
3. 10G Uplink Board (X2CS):
The basic principles of H801X2CS are described below:
  • The control module is used to report the status information and manufacturing information of the board, and provide the interface information. In addition, the control module also has the management of the module within the board, the alarm information processing functions.
  • The interface module provides 2 10GE external interfaces.
  • Synchronize the Ethernet clock module to extract the clock signal in the 10GE signal and synchronize it to the master 8K clock.
  • The power module provides the working power for each function module in the board.
  • The clock module provides the working clock for each function module in the board.
4. Power Board (PRTE):
The function of each module of the H801PRTE board is as follows:
  • H801PRTE board by a 3V3 power connector to introduce a road -48V power supply, through the filter circuit and current limiting protection circuit output to the backplane for the chassis other power supply.
  • Check the reported circuit to the protection of the fuse for fault detection, the detected signal and the board in-position signal together reported to the main control board, and through the light display.
  • Detection report circuit detection input undervoltage and input power supply.
  • E2PROM circuit is used to store the board manufacturing information.
  • Introduce the 5V / 3.3V power supply from the backplane to power the internal chip in the board.

Supported Boards

Table 2 shows the recommended boards of this model.

Category

Model

Description

Control Boards

H801SCUH

Huawei SmartAX MA5600 Super Control Unit Board

H801SCUV

Huawei SmartAX MA5600 Super Control Unit Board

H801SCUN

Huawei SmartAX MA5600 Super Control Unit Board

H801MCUD

Huawei SmartAX MA5600 Control Unit Board (GE Uplink)

H801MCUD1

Huawei SmartAX MA5600 Control Unit Board (GE/10GE Uplink)

H801SCUK

Huawei SmartAX MA5600 Super Control Unit Board

Services Boards

H806GPBH

Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board

H807GPBH

Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board

H801GPMD

Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board

H805GPFD

Huawei SmartAX MA5600 16-port GPON OLT Interface board

H801XGBD

Huawei SmartAX MA5600 8-port XG-PON OLT Interface board

H802XGBC

Huawei SmartAX MA5600 4-port XG-PON OLT Interface Board

H801SPUF

Huawei SmartAX MA5600 Multifunctional Service Process Board

H801ETHB

Huawei SmartAX MA5600 Ethernet Service Access Board

Power Boards

H801PRTA

Huawei SmartAX MA5600 Power Transfer Board

H801PRTE

Huawei SmartAX MA5600 Power Transfer Board

H801PRTG

Huawei SmartAX MA5600 Power Transfer Board

Fan Boards

H831FCBB0

Huawei SmartAX MA5600 MA5608T fan tray

Compare to Similar Items OLTs

Table 3 shows the comparison.

Model No.
MA5680T
MA5683T
MA5608T
Dimension
490*275.8*447.2mm
442*283.2*263mm
442*233.5*88mm
Operating Environment
Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing)
Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)
Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)
Power Supply Parameters
-48V DC input Supports dual power protection
Working Voltage range  -38.4V~-72V
-48V DC input Supports dual power protection
Working Voltage range  -38.4V~-72V
-48V DC input Supports dual power protection
Working Voltage range  -38.4V~-72V Support 220V / 110V AC input
Backplane Exchange capacity
3.2Tbit/s
1.5Tbit/s
720Gbit/s
Control Board Exchange Capacity
1920 Gbit/s
960Gbit/s
512Gbit/s
Access Capacity
128*10G EPON
64*10G GPON
128*EPON
256*GPON
768*GE
48*10G EPON
24*10G GPON
48*EPON
96*GPON
288*GE
16*10G EPON
8*10G GPON
16*EPON
32*GPON
96*GE
Access Type
Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
System Performance
Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance

Get More Information

Do you have any question about the MA5683T or other Huawei OLT machines

Contact us now via WhatsApp: +86 136 9226 0946 or Contact@huatenmax.com.

Specification

Huawei MA5683T OLT Specification

Switching capacity (backplane bus)

1.5 Tb/s

L2 packet forwarding rate

726 Mp/s in Active / Standby mode
1452 Mp/s in Load sharing mode

Switching capacity of the control board

480 Gb/s in active / standby mode
960 Gb/s in load sharing mode

BER at full load

< 10 e-7

Availability (in standard configuration)

> 99,999%

MTBF

≈45 years

Management ports

Out of band Rj45 Console

Upstream / uplink ports

2x SFP on GICF board
2x SFP+ on X2CS board
(2 SFP slots and 2 SFP+ slots in total)

Method of power supply

DC

Permissible operating temperature

From -25 to 65 degrees C

Permissible air humidity
5%-95% RH
Dimensions
482.6 x 283.2 x 263.9 mm
Weight (housing only)
7 kg
SCUN (control board)
Switching capacity
480 Gb/s in active / standby mode
960 Gbps in load sharing mode
Total capacity
10 Gbps in active / standby mode
20 Gbps in load sharing mode
MAC Address Table
32768
Max. number of users
8192
Max. number of multicast users
8192
Max. number of multicast channels
4096
Max. number of simultaneous multicast channels
2000
IPv4 routing table
5120
IPv6 routing table
5120
ARP table
8192
Number of ACL rules
1024
Max. frame size
2052 bytes
Using the jumbo frame function
9216
VRF (L3 VPN)
Yes
Power consumption
Static: 30 W
Maximum: 50 W
Dimensions(mm)
25.40 (W)x 237.00 (D) x 395.40(H)
Weight(kg)
0.5
X2CS (uplink board)
Port
2 * 10GE Uplink Ports
Pluggable Module
SFP+ Module
Corresponding Control Board
SCUF/SCUN/SCUL/SCUH
Power Consumption
Static: 17.6 W
Maximum: 18 W
Maximum Frame Size

2052 bytes

After jumbo frame function is enabled, a maximum of 9216 bytes can be supported

Operating temperature
-25°C to +65°C
PRTE (power board)
Port
3V3 power port
Function
Provides the -48 V power input
Connection
Use a -48 V feeder cable to connect the port to the power distribution unit (PDU).
Power Consumption
Static: 1.5 W
Maximum: 1.5 W
Dimensions (mm)
25.40 (W) x 237.00 (D) x 105.10 (H)
