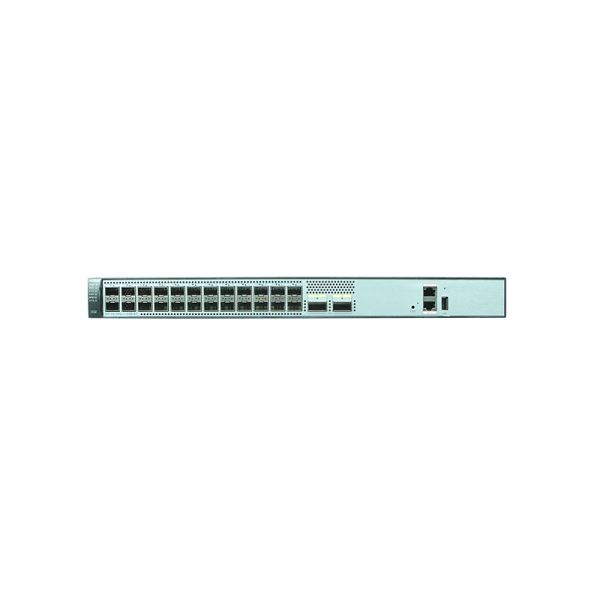

S6720-26Q-LI-24S-AC

Product Code

S6720-26Q-LI-24S-AC

Fixed ports

24x10GE port, 2x40GE port

Dimensions (W x D x H, mm)

420 x 220 x 43.6

Chassis height(U)

1U

CPU Frequency

1 GHz

CPU Cores

2

Memory (RAM)

1 GB

Rated voltage range

AC: 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

AC: 90 V AC to 264 V AC; 47-63 Hz

Maximum input current

3 A

Minimum power consumption

100.2 W

Model

Description

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)

CWDM-SFPGE-1471

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)

CWDM-SFPGE-1491

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)

DWDM-SFPGE-1560-61

DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

SFP-10G-BXU1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)

Product Code

S6720-26Q-LI-24S-AC

S6720S-26Q-LI-24S-AC

Fixed ports

24x10GE port, 2x40GE port

24x10GE port, 2x40GE port

Dimensions (W x D x H, mm)

420 x 220 x 43.6

420 x 220 x 43.6

Chassis height(U)

1U

1U

CPU Frequency

1 GHz

1 GHz

CPU Cores

2

2

Memory (RAM)

1 GB

1 GB

Rated voltage range

AC: 100 V AC to 240 V AC, 50/60 Hz

AC: 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

AC: 90 V AC to 264 V AC; 47-63 Hz

AC: 90 V AC to 264 V AC; 47-63 Hz

Maximum input current

3 A

3 A

Minimum power consumption

100.2 W

100.2 W

S6720-26Q-LI-24S-AC Specification

Physical specifications

Chassis dimensions (W x D x H, mm)

420 x 220 x 43.6

Chassis height

1 U

Fixed port

10GE port

24

40GE port

2

Management port

ETH management port

Supported

Console port (RJ45)

Supported

USB port

USB 2.0

CPU

Frequency

1 GHz

Cores

2

Memory

Memory (RAM)

1 GB

Flash

Hardware: 512 MB, of which 240 MB is available for users

Power supply system

Power supply type

Built-in AC

Power supply redundancy

Built-in single power supply and RPS in 6:1 mode

RPS

Supported

Rated voltage range

AC: 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

AC: 90 V AC to 264 V AC; 47-63 Hz

Maximum input current

3 A

Maximum power consumption of the device

100.2 W

Heat dissipation system

Heat dissipation mode

Air-cooled heat dissipation and intelligent fan speed adjustment

Number of fan modules

3

Airflow

Air flows in from the left side and front panel, and exhausts from the right side.

Maximum heat dissipation of the device (BTU/hour)

342

Environment parameters

Long-term operating temperature

0-1800 m: 0°C to 45°C

1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude.

Storage temperature

-40°C to +70°C

Relative humidity

5%-95% (non-condensing)

Operating altitude

5000 m

Noise under normal temperature (sound power)

46.5 dB(A)

Noise under high temperature (sound power)

72.9 dB(A)
