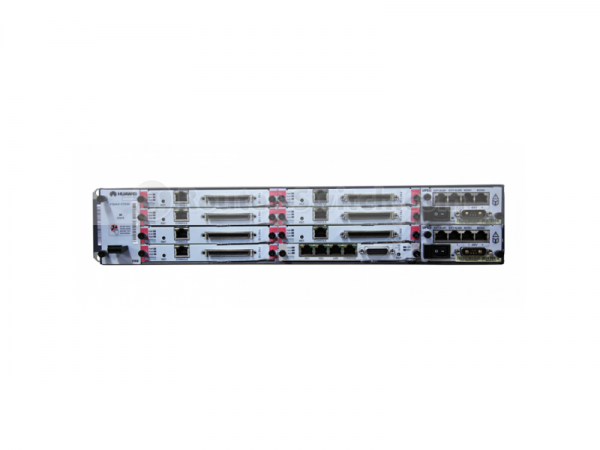

U13Z01ACEQ-Huawei UC Gateways-HuaTenMax

Product Code	U13Z01ACEQ
Part Number	02355932
Description	eSpace U1930 AC Integrated Host
Product Series	eSpace U1930(CRS V3)
Maximum number of users	300 (a maximum of 224 FXS ports for analog users or 300 SIP users)
Terminal type	Analog phones, IP phones, video phones and soft clients
Port	60 FXO ports or 2 E1/T1 ports
Trunk protocol	SS7, R2, PRI, QSIG, and SIP
Codec	G.711A/μ, G.729a/b, and iLBC
Number of meeting participants	A maximum of 12 meeting participants which can be allocated to 4 meeting halls (each hall can support up to 12 participants by maximum)
Power Supply	AC: 100 V to 240 V, 50 Hz/60 Hz DC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup
Maximum power consumption	220 W(full configuration)
UOM	PCS
Pack Weight(kg)	11
Pack Volume(m^3)	0.050469
*Pack Dimension(DWH mm)*	597447195
*Net Dimension(DWH mm)*	31044286
Typic Power(W)	36.5

Product Code	U11Z02ACEQ	U13Z01ACEQ	U16Z05ACEQ
Part Number	02355928	02355932	02350AGH
Description	eSpace U1910 AC Integrated Host	eSpace U1930 AC Integrated Host	eSpace U1960 AC Integrated Host(1 SCU,1 MTU)
Product Series	eSpace U1910(CRS V3)	eSpace U1930(CRS V3)	eSpace U1960(CRS V3)
Maximum number of users	100 (a maximum of 96 FXS ports for analog users or 100 SIP users)	300 (a maximum of 224 FXS ports for analog users or 300 SIP users)	1,000(a maximum of 192 FXS ports for analog users or 1,000 SIP users)
Terminal type	Analog phones, IP phones, video phones and soft clients	Analog phones, IP phones, video phones and soft clients	Analog phones, IP phones, video phones and soft clients
Port	24 FXO ports or 1 E1/T1 port	60 FXO ports or 2 E1/T1 ports	72 FXO ports or 14 E1/T1 ports
Maximum power consumption	200 W (full configuration)	220 W(full configuration)	220 W (full configuration)
Typic Power(W)	36.5	36.5	75

U1930 Specifications
Maximum number of users		300 (a maximum of 224 FXS ports for analog users or 300 SIP users)
Terminal type		Analog phones, IP phones, video phones and soft clients
Port		60 FXO ports or 2 E1/T1 ports
Trunk protocol		SS7, R2, PRI, QSIG, and SIP
Codec		G.711A/μ, G.729a/b, and iLBC
Number of meeting participants		A maximum of 12 meeting participants which can be allocated to 4 meeting halls (each hall can support up to 12 participants by maximum)
Power Supply		AC: 100 V to 240 V, 50 Hz/60 Hz DC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup
Maximum power consumption		220 W(full configuration)
Dimensions (H * W * D)		Standard 19-inch 2 U subrack 86.1 mm * 442 mm * 310 mm
Weight		10 kg (full configuration)
Environment	Temperature	Storage temperature: –40° C to +70° C Long-term operating temperature: 0° C to 45° C Short-term operating temperature: –5° C to +55° C
	Relative humidity	5% to 95% (without condensation)
	Dustproof	Less than 180 mg/m³ dust in the air. (Dustproof measures should be taken in the work environment)
System reliability		99.995%
Maintainability		Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST)
Manageability		Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment

U13Z01ACEQ
