Position：Home / Products / Video Surveillance / Huawei Video Surveillance / Huawei Video Cloud Node

  • VCN520-32
  • VCN520-32

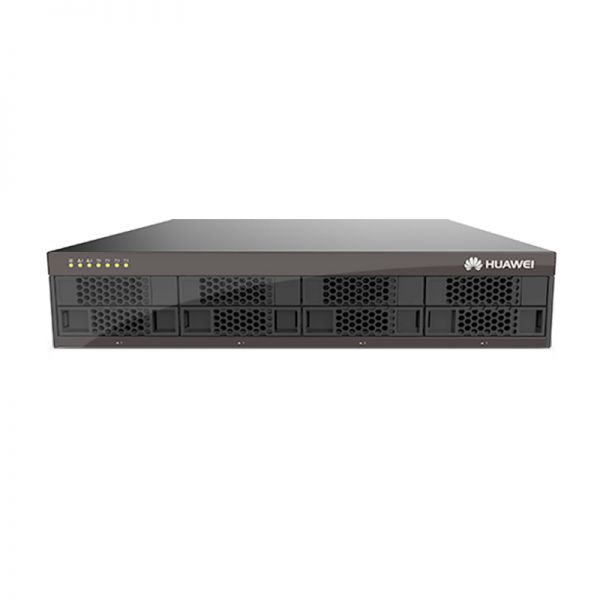

VCN520-32

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

Huawei's VCN520-32 is a robust network video recorder optimized for safety and surveillance systems. With its 4 bays and 32 channel access, it is ideal for large-scale video surveillance installations, ensuring seamless security management. This product is perfect for IT professionals and security management teams looking for a powerful and reliable recording solution.


VCN520-32 Product Highlights

  • 4 bays for HDDs
  • 32 channel video access
  • 150W AC power supply
  • Reliable performance
  • Scalable system

Product Features Comparison

Feature Huawei VCN520-32 Dahua NVR5416-4KS2 Hikvision DS-9632NI-I8 UNV NVR302-32S Axis S1148 QNAP VS-8132U-RP Pro+ Synology RackStation RS2818RP+
Number of Bays 4 4 8 4 12 8 16
Channel Access 32 16 32 32 48 32 28
Power Supply AC 150W DC 12V AC 280W AC 65W AC 250W AC 300W AC 500W
Max Storage Up to 40TB Up to 24TB Up to 64TB Up to 32TB Up to 80TB Up to 64TB Up to 192TB
Management Interface Web-based GUI Web-based Web-based Web GUI QNAP QTS DSM

VCN520-32 Product Application Scenarios

  • Corporate surveillance systems
  • Public safety infrastructures
  • Retail store security systems

Optional Add-ons

Model Description
Seagate SkyHawk 8TB Optimized HDD for NVR
Hikvision DS-1280ZJ-S Wall Mount Bracket
Huawei UPS2000-A-2KRTL Uninterruptible Power Supply

Get More Information

Discover unbeatable prices and fast shipping for the Huawei VCN520-32. Access the detailed VCN520-32 datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

VCN520-32 Specifications

Product Name VCN520-32
Bays 4
Channel Access 32
Power Supply AC 150W
Brand Huawei
Power Input 100-240V AC
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Relative Humidity 5% to 95%, non-condensing
Dimension 444mm x 442mm x 88mm
Mounting Rack Mount
Network Interface 2x 10/100/1000 Mbps
Video Output Interface 1x VGA, 1x HDMI
USB Interface 2x USB 2.0, 1x USB 3.0
Audio Input/Output 1x Line In, 1x Line Out
Compliance CE, FCC, RoHS
Supported Protocols TCP/IP, DHCP, DNS, HTTP, HTTPS
Remote Management Web-based interface
Hard Drive Compatibility SATA III
Max Storage Capacity Up to 40TB
