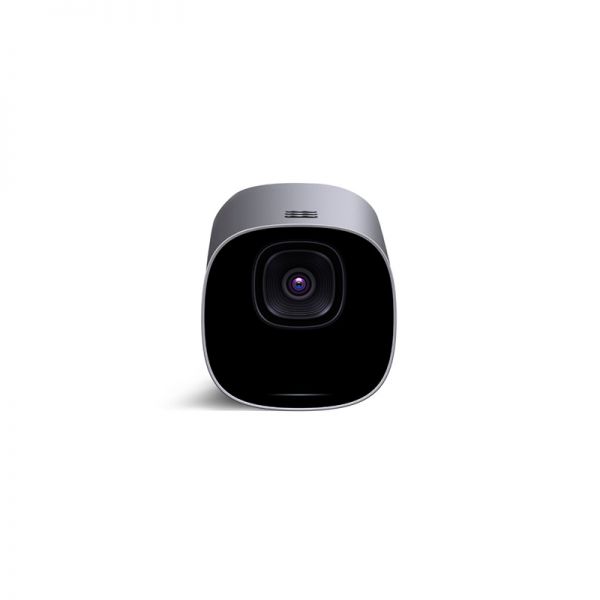

TE10-720P30-U0

TE10-720P30-U0 Specification

Communication Protocols

Multimedia Frame Protocols

ITU-T H.323, IETF SIP

Video Encoding and Decoding Protocols

H.264 BP, H.264 HP

Audio Encoding and Decoding Protocols

G.711A, G.711U, and G.722

Dual-stream Protocol

ITU-T H.239, BFCP

Other Communication Protocols

H.350, LDAP, and LDAPS

Network Transmission Protocols

FTP, FTPS, DHCP, DNS, SNMP, Telnet, SSH, HTTP, HTTPS, SNTP, TR-069, RTP, and RTCP

Wi-Fi Standards

IEEE802.11a/b/g/n, WPA, and WPA2

Video Features

Video Resolution

720p30 (minimum bandwidth required: 384 kbit/s)

4 SIF/4 CIF (minimum bandwidth required: 128 kbit/s)

SIF/CIF (minimum bandwidth required: 64 kbit/s)

Presentation Resolution

Wireless access: 1080p5/720p15

Video & Presentation Resolution

720p30 + 1080p5 or 720p30 + 720p15

Built-in HD Camera

Built-in 1080p camera

2.0 megapixels

3x digital zoom

Automatic White Balance (AWB)

Automatic Exposure (AE)

Other Video Features

Various display modes, such as Picture-in-Picture (PiP) and Picture-out-Picture (PoP)

Audio Features

Audio Features

Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), VoiceClear, AudioEnhancer, and lip synchronization

Stability and Security

Network Adaptability

Super Error Concealment (SEC), Packet Loss Retransmission (ARQ), and Forward Error Correction (FEC)

Security Management

TLS-/SRTP-based encryption

Conference access password, conference control password, and administrator password

SSH/HTTPS and dual-stream encryption

Bandwidth

IP

64 kbit/s to 2 Mbit/s

Ports

Audio Input Ports

1 x built-in microphone array, and Bluetooth

Audio Output Ports

1 x 3.5 mm, 1 x HDMI (audio supported), 1 x speaker, and Bluetooth

Video Input Port

1 x built-in camera

Video Output Port

1 x HDMI

USB Port

1 x USB 2.0 Host

Network Port

IP: 10/100/1,000 Mbit/s Base-T, 1 x RJ45

Wireless: built-in Wi-Fi

Conferencing Features

Languages

Simplified Chinese, English, French, German, Japanese, and Spanish

Special Features

Interconnection with third-party cloud platforms

Plug-and-play configuration via USB device

Built-in speaker

Connection to a keyboard or mouse

Bluetooth speaker

RF remote control

Dual-band Wi-Fi (2.4 GHz and 5 GHz)

IPv6/IPv4

AirPresence

LDAP/Network address book

Seamless integration with the IMS

Third-party APIs

Customized startup animation

Maintenance and Management

Maintenance Methods

Using the remote control: Compact remote control and flat, lightweight interactive UI

Using the network management system: SNMP and TR-069 protocols supported

Using the web interface: Embedded web server and graphic maintenance and diagnostics

Using command lines: Telnet and SSH supported

Maintenance Functions

Automatic sleep and wake-up using the remote control

Logging and log query and export

Factory settings restoration

Embedded local loopback

Embedded audio and video testing

Dimensions and Weight

Dimensions (H x W x D)


Weight

Endpoint dimensions: 90 mm x 90 mm x 90 mm

Package dimensions: 110 mm x 160 mm x 158 mm

Net weight: 0.5 kg

Gross weight: 1.6 kg

Electricity Supply Requirements

Working voltage: 100V to 240V AC or 12V DC

Working frequency: 50 Hz to 60 Hz

Maximum power consumption: 8W

Environmental Requirements

Temperature: 0°C to 40°C (working state), –40°C to 70°C (non-working state)

Relative humidity: 10% to 80% (working state), 0% to 95% (non-working state)

Ambient noise: < 6 dBA SPL

Minimum illumination: 7 lux

Recommended illumination: > 300 lux

Certifications

CCC, CE (RoHS/REACH), UL, FCC, and Radio Type Approval Certification
