Position：Home / Products / Routers / Service Provider Edge Routers / Juniper SRX Service Gateways

  • SRX5K-MPC
  • SRX5K-MPC

SRX5K-MPC

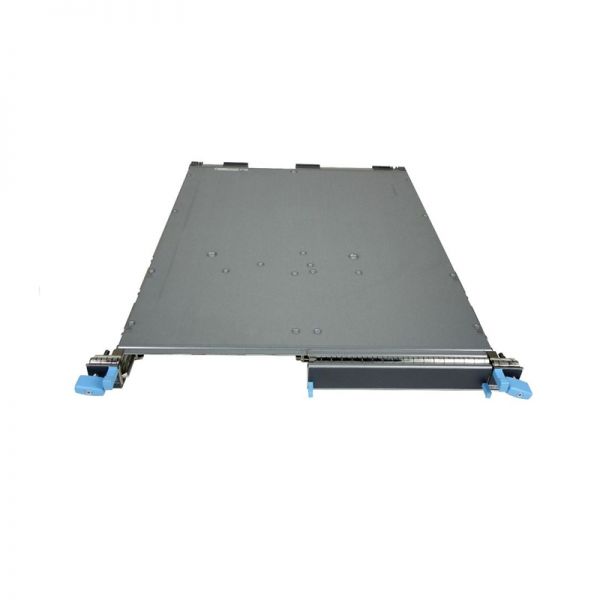

Model:SRX5K-MPC - Juniper SRX Series Service Gateways
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

Introducing the Juniper SRX5K-MPC interface card, a highly efficient solution for expanding network capacity with two slots that accept MICs. Ideal for large enterprises and data centers, it enhances network flexibility and scalability. Optimized for high-performance environments, the SRX5K-MPC ensures seamless connectivity and robust security.

SRX5K-MPC Product Highlights
  • ● High-density interface card
  • ● Two MIC slots
  • ● Enhanced network scalability
  • ● Ideal for data centers
  • ● Seamless connectivity
Product Features Comparison
Features SRX5K-MPC SRX5800 SRX4600 SRX4200 SRX340 SRX300 MX10008
Interface Slots 2 MIC slots 5 SCBs 4 SPCs 2 NPUs 1 NPU 1 NPU 8 slots
Network Capacity High Very High High Medium Low Low Very High
High Availability Yes Yes Yes No No No Yes
Power Consumption Moderate High Moderate Low Low Low High
Form Factor Modular Chassis-based Chassis-based 1U 1U 1U Rack-mountable
Routing Protocols BGP, OSPF BGP, OSPF, IS-IS BGP, OSPF BGP OSPF OSPF BGP, OSPF, IS-IS
SRX5K-MPC Product Application Scenarios
  • ● Data center interconnects
  • ● Enterprise-grade networks
  • ● High-performance security applications
Optional Add-ons
Accessory Model Description
MIC-3D-20GE-SFPP 20x 1/10GbE SFP+ MIC
MIC-3D-40GE-TX 40x 1GbE RJ45 MIC
MIC-3D-2X100GE-CFP 2x 100GbE CFP MIC
Get More Information

Discover unbeatable prices and fast shipping for the Juniper SRX5K-MPC. Access the detailed SRX5K-MPC datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

SRX5K-MPC Specifications

Brand Juniper
Product Name SRX5K-MPC
Product Type Interface card
Slot Number Two slots
MIC Compatibility Accepts MICs (Modular Interface Cards)
Compatibility SRX5000 Series Services Gateways
Ports per Slot Dependent on the MIC installed
Maximum Ports Varies with MIC options
Bandwidth per Slot Up to 80 Gbps per slot with supported MICs
Routing Capability Supports high-performance routing
Redundancy Support Yes
Hot Swappable Yes
Chassis Dimensions Based on SRX5000 series
Power Consumption Depends on installed MICs
Cooling Based on chassis configuration
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operational) 10% to 85% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Warranty 1 year limited hardware warranty
