Position：Home / Products / Firewalls / Palo Alto Firewalls / Palo Alto Firewalls Appliance

  • M-200
  • M-200

M-200

Model:PAN-M-200 Appliance
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Palo Alto Networks M-200 and M-600 appliances are multi-function appliances that you can configure to function in Panorama Management mode, Panorama Management-only mode, Panorama Log Collector mode, or PAN-DB Private Cloud mode (M-600 only).

Quick Specs

Table 1 shows the Quick Specs.

Product Code

PAN-M-200

Description

Palo Alto Networks M-200, 16TB RAID storage (4 8TB RAID certified drives preinstalled). Rack mount rails included.

Power Supplies

Two 750W AC power supplies; the second power supply is for redundancy.

Input voltage and frequency

100-240VAC (50-60Hz)

Power consumption

330W

Maximum current consumption

9.5A@100VAC

Maximum inrush current (per power supply)

35A


Product Details

Figure 1 shows the front panel of PAN-M-200
Palo Alto Networks M-200 Management Appliance | PaloGuard.com.auNote:

①

System drive

⑥

Power LED

②

Unique Identification (UID) button

⑦

Reset button

③

System information (overheat and UID) LED

⑧

Power button

④

Network activity LEDs

⑨

Hard-disk drives (HDDs)

⑤

Hard-disk drive (HDD) LED

⑩

Hard-disk drive (HDD) LEDs

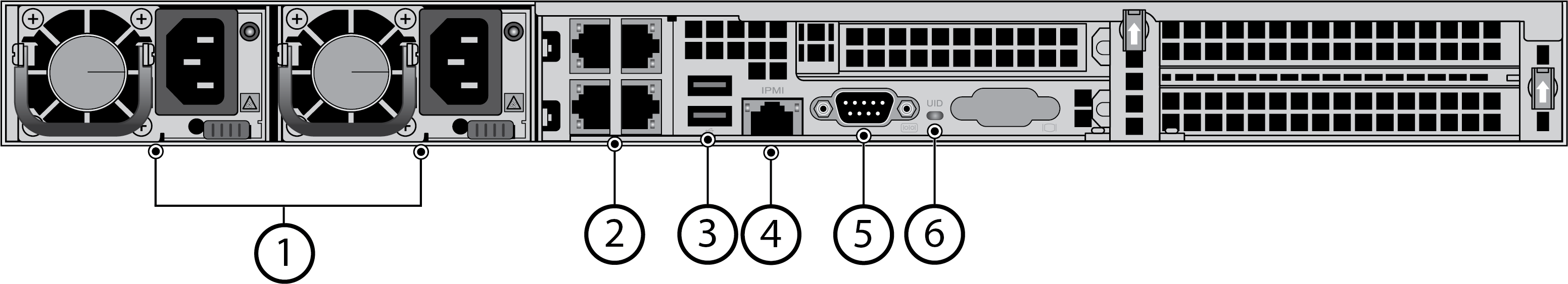

Figure 2 shows the back panel of PAN-M-200
M-200 Appliance Back Panel DescriptionNote:

①

Power supplies

④

IPMI port

②

Ethernet ports

⑤

Console port

③

USB ports

⑥

Unique Identification (UID) LED


Compare to Similar Items

Table 4 shows the comparison

Model

PAN-M-200

PAN-M-600

Description

Palo Alto Networks M-200, 16TB RAID storage (4 8TB RAID certified drives preinstalled). Rack mount rails included.

Palo Alto Networks M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails

Power Supplies

Two 750W AC power supplies; the second power supply is for redundancy.

Two 750W AC power supplies; the second power supply is for redundancy.

Input voltage and frequency

100-240VAC (50-60Hz)

100-240VAC (50-60Hz)

Power consumption

330W

486W

Maximum current consumption

9.5A@100VAC

4.5A@240VAC

Maximum inrush current (per power supply)

35A

35A


Get More Information

Do you have any question about the PAN-M-200

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

PAN-M-200 Specification

Model

PAN-M-200

Physical Specifications

Rack units (U) and dimensions

Rack unit—1U

Dimensions—1.7” H x 29” D x 17.2” W

(4.32cm H x 73.67cm D x 43.69cm W)

Electrical Specifications

Power Supplies

Two 750W AC power supplies; the second power supply is for redundancy.

Input voltage and frequency

100-240VAC (50-60Hz)

Power consumption

330W

Maximum current consumption

9.5A@100VAC

Maximum inrush current (per power supply)

35A

Environmental Specifications

Operating temperature range

41°F to 104°F (5°C to 40°C)

Non-operating temperature

-40°F to 140° F ( -40° to 60° C)

Humidity tolerance

Operating relative humidity (noncondensing)—8% to 90%

Non-operating relative humidity (noncondensing)—5% to 95%

Airflow

Front-to-back

Maximum BTU/hr

1,114BTU/hr (127VAC) and

1,090BTU/hr (240VAC)

Electromagnetic Interference (EMI)

FCC Part 15, EN 55032, CISPR 32

Maximum operating altitude

7,500ft (2,286m)
