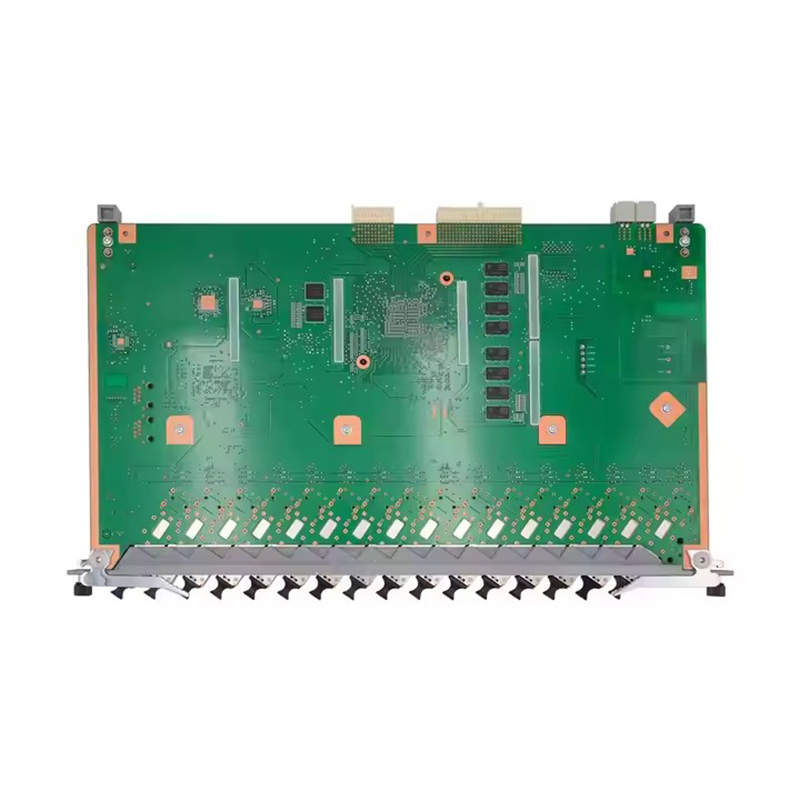

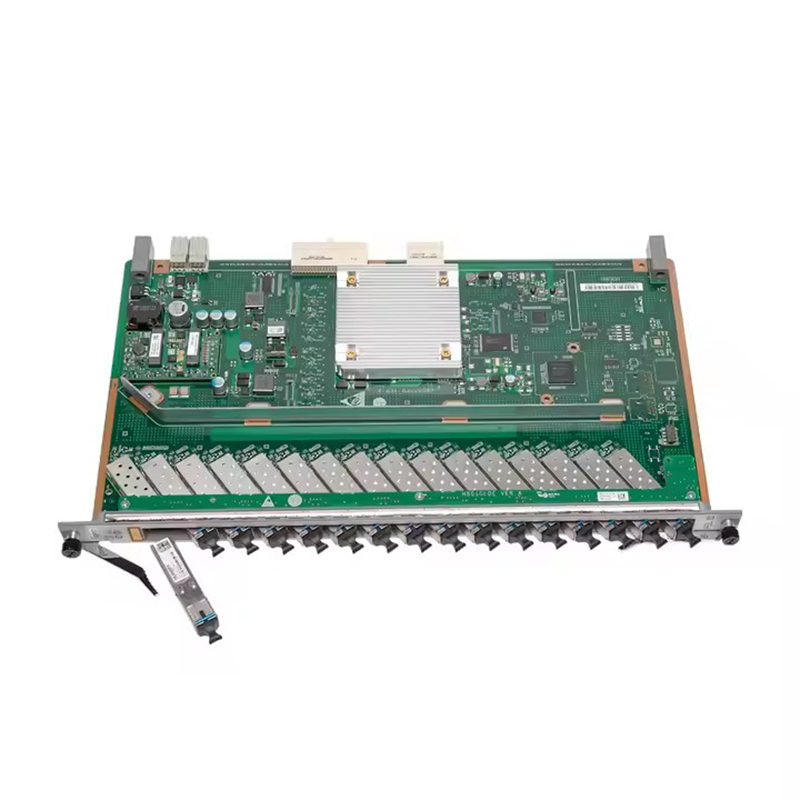

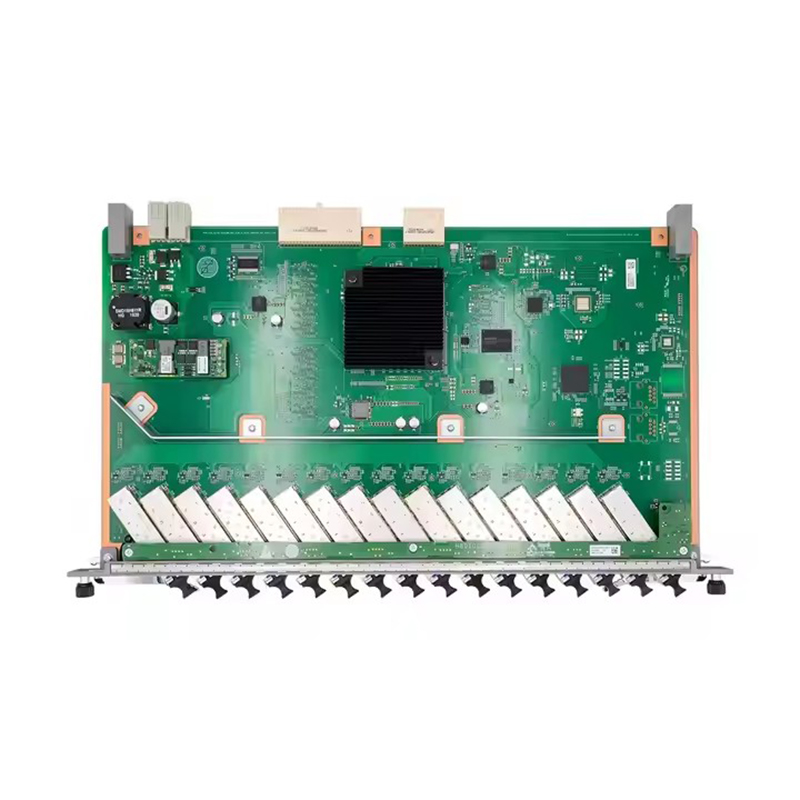

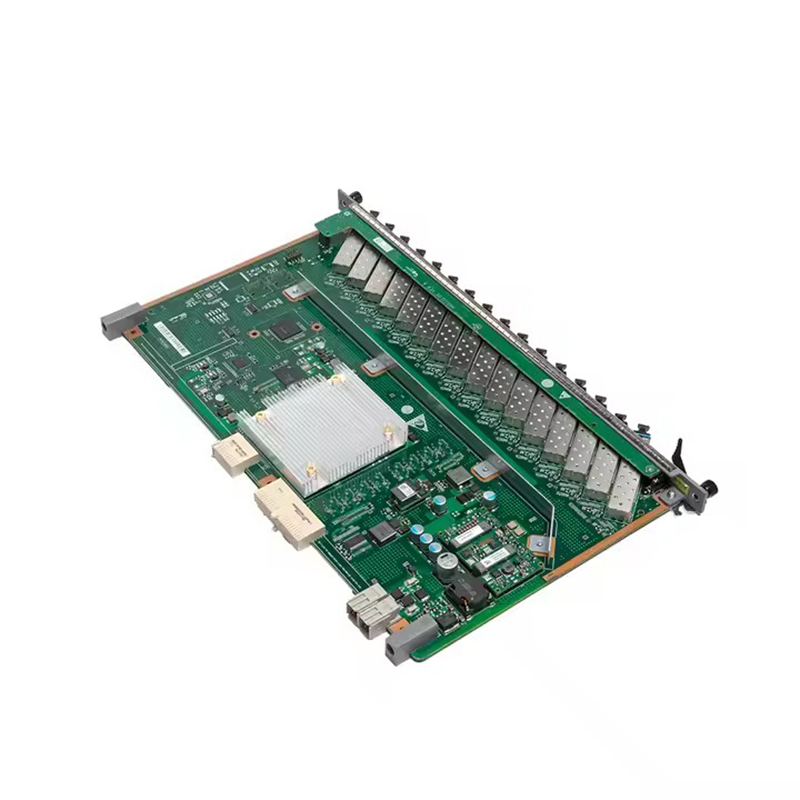

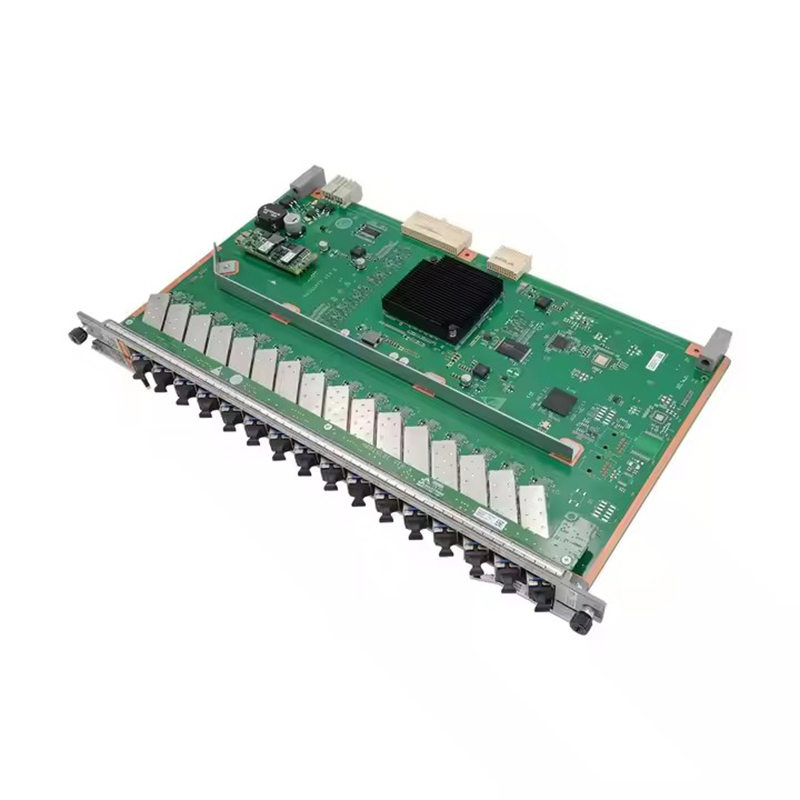

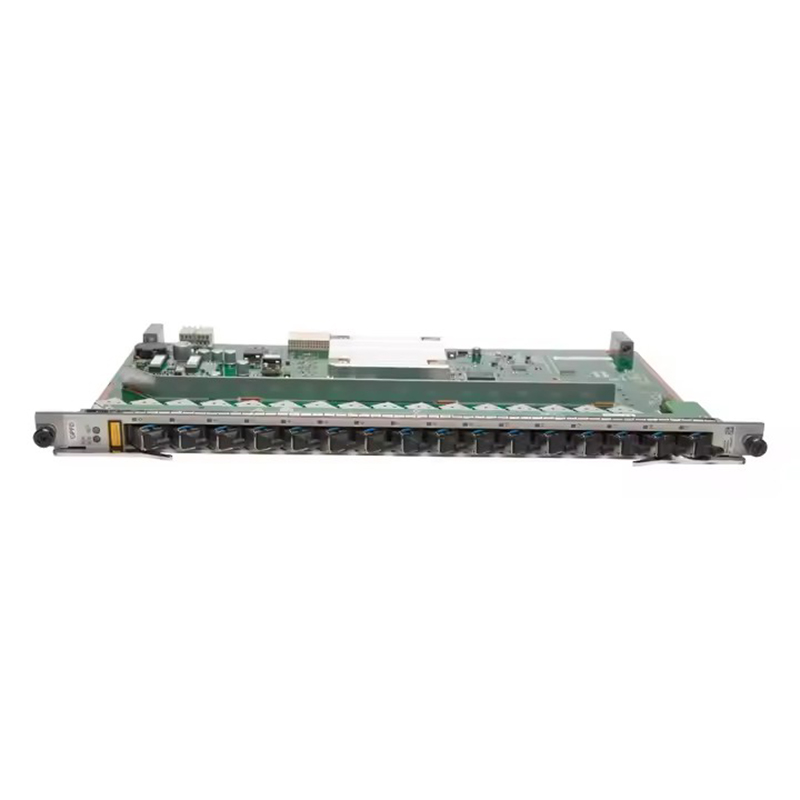

Huawei GPFD Service Board is a 16 port GPON interface card This board offers GPON service access from ONT which get maximum access 16*128 GPON subscribers. The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.
SmartAX MA5680T/MA5683T/MA5608T equipment is a GPON/EPON integrated optical access product launched by Huawei Technologies Co., Ltd. It has ultra-high aggregation switching capacity, 3.2T backplane capacity, 960G switching capacity, 512K MAC address capacity, and supports up to 44 channels of 10 GE or 768 GE access.The software versions of the three specifications are fully compatible with the user board, saving the types and quantity of spare parts and reducing maintenance costs.
Key Advantages
- High port density: As many as 16 GPON ports in a single module, saving space and resources for the OLT platform.
- Mass customer support: Up to 2,048 ONT terminals can be connected from a single card, supporting dynamic network growth.
- Cost optimization: Large 1:128 split ratio reduces the cost of building the physical network layer.
- Stability and reliability: Wide operating temperature range and low power consumption translate into lower operating costs and service continuity.
- Proven compatibility: Full interoperability with Huawei's key OLT platforms (MA5608T, MA5680T, MA5683T).
- Support for Triple Play services: High bandwidth helps deliver internet, TV and voice services at the highest level.
Quick Spec
Main Features
- Huawei 16-GPON Port Interface Card with B+/C+/C++ SFP module
- Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
- Available at 3 versions: H802GPFD, H803GPFD, H805GPFD
- Support split ratio 1:128
- Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
- Interface Type: SC/PC
- Max Transmit Distance: 20KM
- Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
- Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
- C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
- Exchanging module to achieve the convergence of 16 GPON port signals.
- Controlling modules to complete single board software loading, operation control, management and other functions.
- providing a working power supply for each function module in a single board.
- Realizing the mutual conversion between GPON optical signal and Ethernet message.
- Providing a working clock for each function module in a single board.
Huawei GPFD Service Board and Related Board Datasheet
Board Model
| GPON Type
| Port NO.
| Optical Module
| Maximum Split Ratio
| ONU based
shaping
|
H802GPBD
| 1G-GPON
| 8
| SFP (Class B+ and Class C+)
| 0.130555556
| NO
|
H805GPBD/H806GPBD
| 1G-GPON
| 8
| SFP (Class B+ and Class C+)
| 0.130555556
| Yes
|
H802GPFD/H803GPFD/H805GPFD
| 1G-GPON
| 16 | SFP (Class B+ and Class C+)
| 0.130555556
| Yes
|
H806GPBH/H807GPBH
| 1G-GPON
| 8
| SFP (Class B+ and Class C+)
| 0.130555556
| Yes
|
H802XGBC
| 10G-GPON
| 4 | XFP
| 0.130555556
| Yes
|
Huawei GPFD Service Board and Related Boards
GPBD
| 8*GPON Port (SFP Optical Module:Class B+,C+,C++), Version 802/805/806/807
|
GPBH
| 8*GPON Port (SFP Optical Module:Class B+,C+,C++),Version 806/807
|
EPBD
| 8*EPON Port (SFP Optical Module:PX20+),Version 802/808/809
|
EPSD
| 8*EPON Port (SFP Optical Module:PX20+)
|
GPFD
| 16*GPON Port (SFP Optical Module:Class B+,C+,C++)
|
EPFD
| 16*EPON Port (SFP Optical Module:PX20+)
|
XGBD
| 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2)
|
XEBD
| 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30)
|
GPHF
| 16*GPON Port (SFP Optical Module:Class B+,C+,C++)
|
GPSF
| 16*GPON Port (SFP Optical Module:class B+,C+,C++)
|
GPLF
| 16*GPON Port (SFP Optical Module:class B+,C+,C++)
|
EPHF
| 16*EPON Port (SFP Optical Module:PX20+)
|
XEHD
| 8*10G EPON Port (SFP Optical Module:PX30 PRX30)
|
XELD
| 8*10G EPON Port (SFP Optical Module:PX30 PRX30)
|
XGHD
| 8*XG-PON Port (SFP Optical Module:XGPON N1)
|
XGLD
| 8*XG-PON Port (SFP Optical Module:XGPON N1)
|
XGLF
| 16*XG-PON Port (SFP Optical Module:XGPON N1)
|
XGSF
| 16*XG-PON Port (SFP Optical Module:XGPON N1)
|
Difference between GPON B+, C+ and C++ GPON transceiver
The different are described below:
| Model | B+ Module
| C+ Module
| C++ Module
|
Type
| One-fiber bi-directional optical module,class B+
| One-fiber bi-directional optical module,class C+
| One-fiber bi-directional optical module,class C++
|
Operating Wavelength
| Tx: 1490 nm Rx: 1310 nm | Tx: 1490 nm Rx: 1310 nm | Tx: 1490 nm Rx: 1310 nm |
Encapsulation Type
| SFP
| SFP
| SFP
|
Port Rate
| Tx: 2.49 Gbit/s Rx: 1.24 Gbit/s | Tx: 2.49 Gbit/s Rx: 1.24 Gbit/s | Tx: 2.488Gb/s Rx: 1.244Gb/s |
Minimum Output Optical Power
| 1.50 dBm
| 3.00 dBm
| 6.00 dBm
|
Maximum Output Optical Power
| 5.00 dBm
| 7.00 dBm
| 10.00 dBm
|
Maximum Receiver Sensitivity
| -28.00 dBm
| -32.00 dBm
| -35.00 dBm
|
Optical Connector Type
| SC/PC
| SC/PC
| SC/UPC
|
Optical Fiber Type
| Single-mode
| Single-mode
| Single-mode
|
Reach
| 20.00 km
| 20.00 km
| 20.00 km
|
Overload Optical Power
| -8.0 dBm
| -12.0 dBm
| -15.0 dBm
|
Extinction Ratio
| 8.2 dB
| 8.2 dB
| 8.2 dB
|
ApplicationHuawei GPFD is used in a wide range of FTTx solutions, providing stable and fast broadband connections. It can be used in:
- FTTH (Fiber to the Home) – fiber optic access for individual customers
- FTTB (Fiber to the Building) – fiber optic networks in residential and office buildings
- FTTO (Fiber to the Office) – High-performance connections for businesses
- FTTM (Fiber to the Mobile) – data transmission for mobile network base stations
The Huawei H802GPFD card provides operators with flexibility in expanding and modernizing their network infrastructure, supporting the development of modern broadband services.
