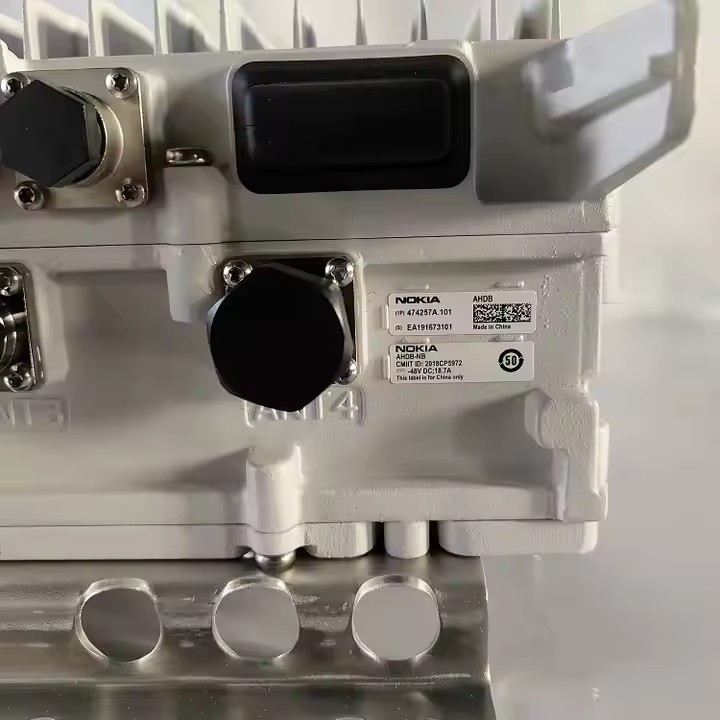

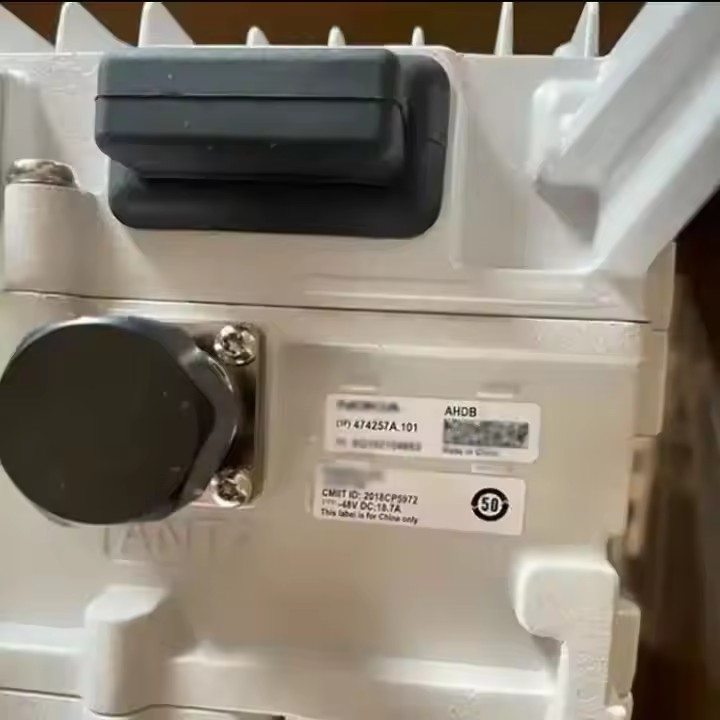

NOKIA AHDB 474257A RRU (Radio
Remote Unit) is a key component in Nokia communication equipment and is mainly
used in the base station part of the wireless communication network. RRU is
usually used together with BBU (Building Baseband Unit, baseband processing unit)
to form the wireless part of the base station. Designed for low power
consumption, reducing operational costs. Easy to install and integrate into
existing network infrastructure. Support
network expansion and upgrades with minimal disruption.
The main functions of RRU include the
sending and receiving, modulation and demodulation of radio frequency signals.
It receives the baseband signal from the BBU, converts it into a radio
frequency signal and transmits it through the antenna; at the same time, it
also receives the radio frequency signal from the antenna, converts it into a
baseband signal and sends it to the BBU. This division of labor and cooperation
makes the base station design more flexible, and the location and number of
RRUs and BBUs can be adjusted as needed.
NOKIA AHDB RRU, as a product of Nokia,
usually has the characteristics of high performance, high reliability and good
compatibility. It may support multiple wireless standards and frequency bands
and can adapt to the needs of different operators and scenarios. At the same
time, as a leader in the communications industry, Nokia's RRU products usually
adopt advanced technology and design to ensure stable network operation and
high-quality services.
Quick Spec

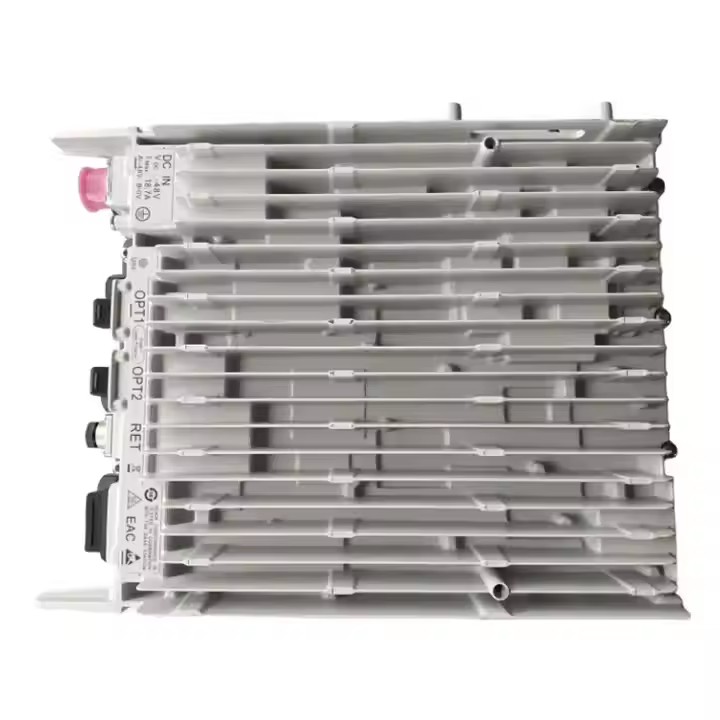

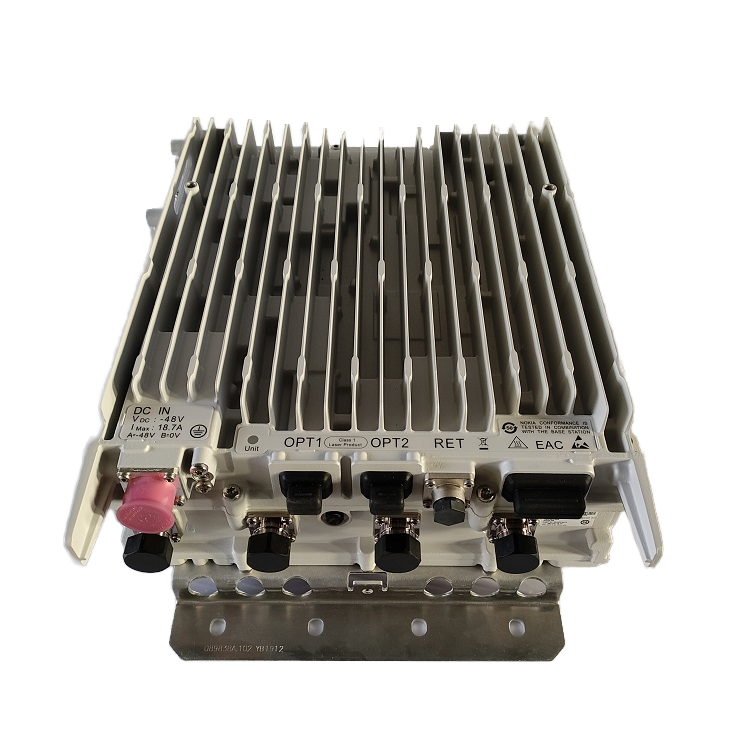

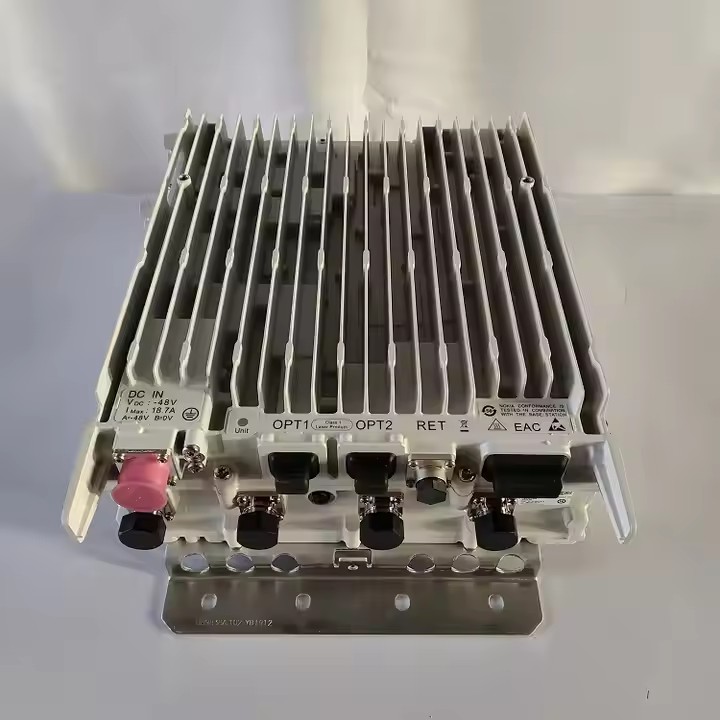

Interfaces
Interface
| Label on the HW | Number of interfaces | Connectot type | Additional information |
Power Connector
| DC IN
| 1 | Low power circular
| APPA, APPB, APPC
|
Antenna connector
| ANT
| 4 | 4.3-10
| - |
Remote Electrical Tilt
| RET
| 1 | 8-pin circular
| RS-485
|
Optical interface
| RET
| 2 | SFP+
| 9.8 Gbps, CPRI; Nokia IP seal
|
External Alarm Connection
| EAC
| 1 | MDR26
| 4 alarm inputs and 1 control output
|
Grounding
| GND
| 1 | M8 or dual M5 screws
| - |
Products DetailsSingle band AirScale RRH solution for 900
MHz
Benefits for the operator
− Lean Site solution
− Reduced Opex
− PIM cancellation
− CPRI support
− No external filters required to handle
transmitter spurious emission and blocking
Feature description
Radio characteristics
− RF Output Power: 2x60W
− 2TX & 4RX. 4* 4.3-10 connectors
− Band 8 (top 26 MHz): TX 934-960 MHz, RX
889-915 MHz
− Fullband iBW&oBW
− 5G ready
Other characteristics
− Supported Technologies: GSM/WCDMA/FDD-LTE
− Supported System Module: FSMF, AirScale SM
− Optical Interface Type: 2* 9.8 Gb/s CPRI
with compression

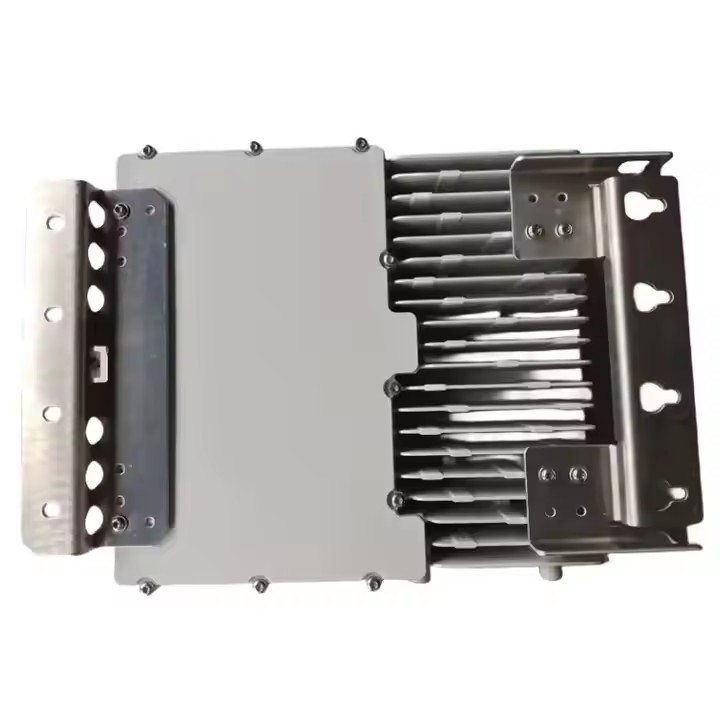

− Mount: Wall, Pole, Book, RAS, horizontal with
Fan
Related Options Items
APAA AirScale AC-DC Power Unit 760W (473936A).
AMAA AirScale 2 casing for RRH aux-units (474141A):
APAC AirScale AC PDU 1 to 3 (474142A)
APAA AirScale AC-DC Power Unit 760W(473936A) - maximum three units per one AMAA.
AMGC AirScale 2 cover 300 x 101-125 (474269A)
AMBF AirScale book mount kit 126-150 (474278A).
FPKA Flexi Pole Mounting Kit (30-120 mm) (471649A).
FPKC Flexi Pole Mounting Kit (60-300 mm) (472821A)
AMPA Pole Mounting Kit (30-120 mm) (473879A)
AMFA AirScale 2 FPKx fixing adapter (474289A)
AMFN AirScale 2 casing adapter RRH 300 (474664A).
AMRA AirScale one clip bracket 51-125(474580A).
AMRC AirScale one clip rail 600 mm (474583A)
ASAA AirScale 2 MDR26-open EAC cable 5 m (474288A).
APPA AirScale 2 26A DC plug 3.3-10 mm (474281A).
APPB AirScale 2 55A DC plug 3.3-10 mm (474282A).
APPC AirScale 2 55A DC plug 10-16 mm (474283A)
