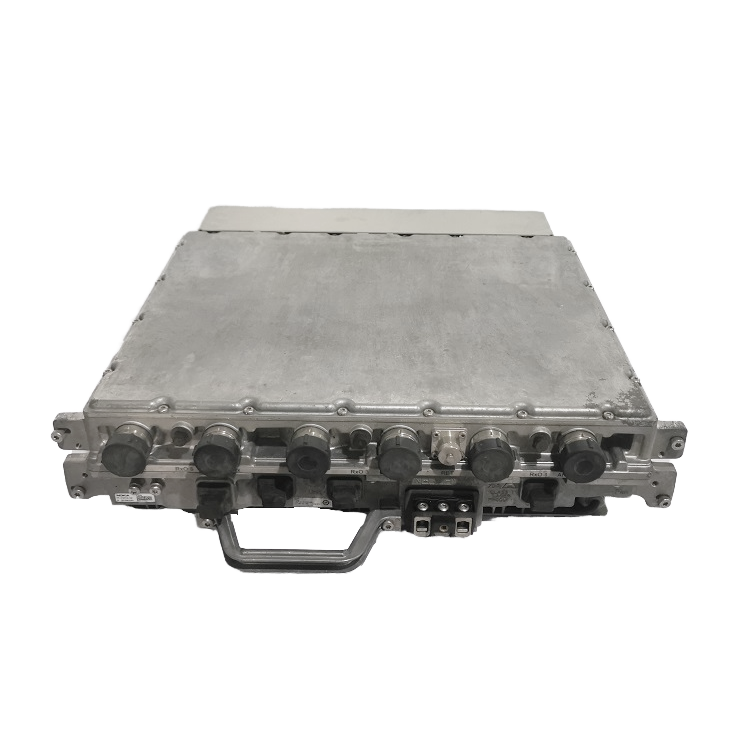

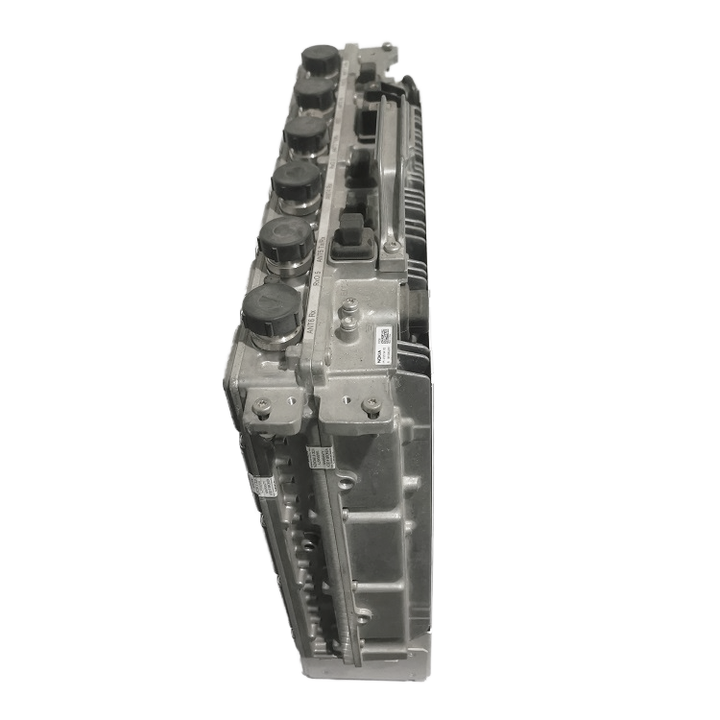

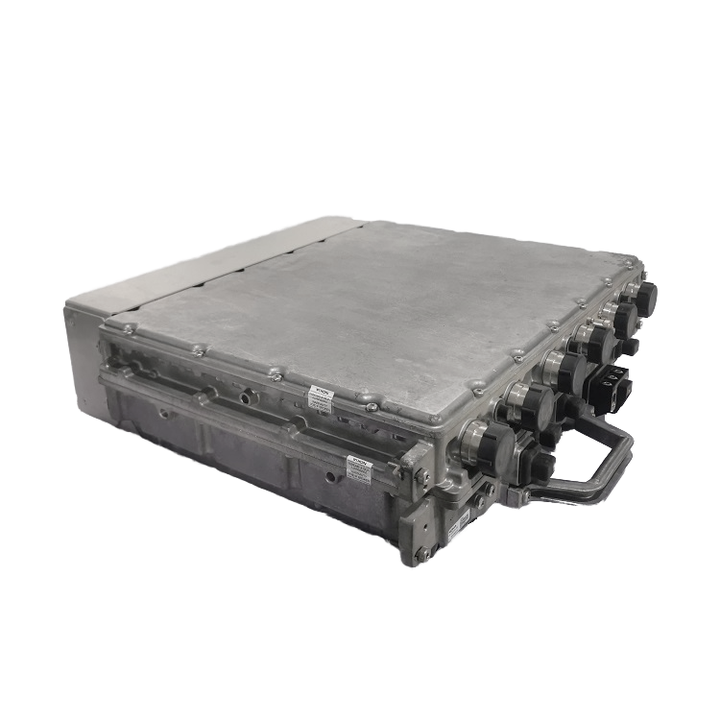

Nokia FXDB 472573A is the 3-branch radio transceiver module. The module consists of three independent branchesdesigned to transmit and receive Multicarrier signals of multiple radio technologies concurrently. Eachbranch within FXxB is completely independent of each other and can be separately shut down. Thereis a common baseband part for all three branches within the system modules.
- Up to 6 GSM carriers with 400 KHz minimum carrier separation
- Up to 4 WCDMA carriers with 4.6 MHz minimum carrier separation
- Multi-carrier LTE signal with 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz, and 35 MHz carrier bandwidth
- Multi RAT operation with combination of GSM, WCDMA, and LTE
The RF Modules FXDA, FXDJ, FXEA, FXCA, and FXFA/ FXFB are referred to as 70W RF Module variants. RF Modules FXEB and FXDB are referred to as 90 W RF Module variants. Each branch consists of a transmitter and two receiver chains. FXxA and FXFB (70W) variants have front end software tunable filters (STuF). 90 W RF Module variants have fixed full band filters. FXxx is a 3U high module with an integrated, replaceable 3-fan assembly for module cooling. The supported functions are:
- Chaining up to three RF Modules with OBSAI RP3_01
- 2-way receive diversity in the receiver chains
- Integrated antenna line supervision
- MHA, Antenna Hopping, EGPRS2, and VAMOS support
- Digital and control circuitry, optical interface, DC/DC power conversion, and other necessary functionalities
- Integrated DC line OVP, Class II rated to 5kA pulse (FXFB, FXDB/FXEB)
- Remote Electrical Tilt (RET) support (FXFB, FXDB/FXEB)
Flexi Multiradio BTS GSM/EDGE modules are equipped with an integrated air guide plate providing full thermal compliance without casings. This allows installation of the modules without casings in Flexi cabinets and enclosed 19″ racks. Casings and covers are recommended in standalone 19″ racks (no cabinet) for safety reasons. Casings are not part of the FXxx delivery package. If the configuration requires casings, Flexi BTS Module Casing (EMHA) kits must be ordered.
Quick Spec

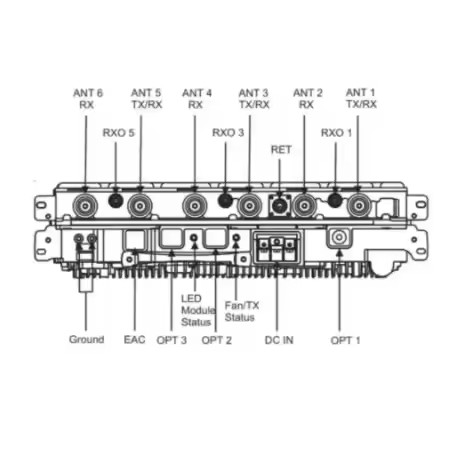

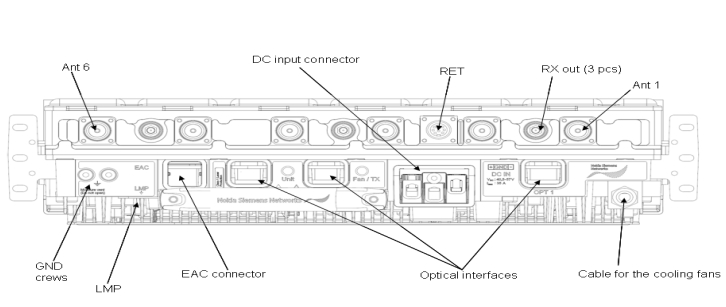

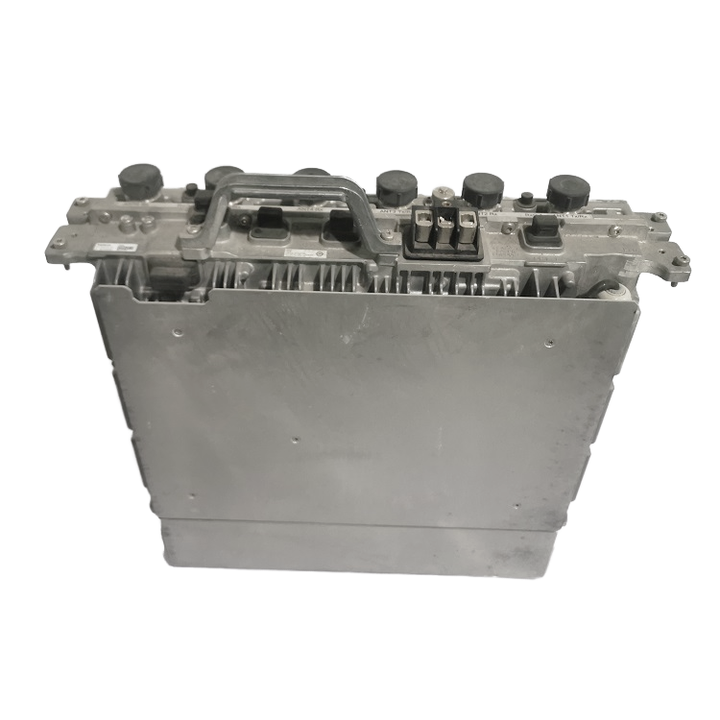

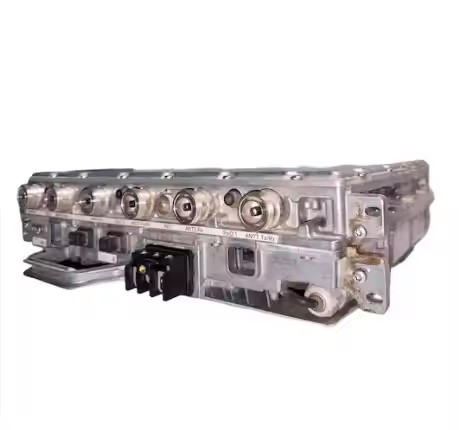

Interfaces
Interface
| Label on the HW | Number of interfaces | Connectot type | Additional information |
Power Connector
| DC IN
| 1 | Screw-interminal
| APPA, APPB, APPC
|
Antenna connector
| ANT
| 6 | 7/16
| - |
RF output connector
| RxO
| 3 | QMA
| -
|
Remote Electrical Tilt
| RET | 1 | 8-pin circular
| -
|
External Alarm Connection
| EAC
| 1 | RJ45
| -
|
Grounding
| OPT
| 3 | SFP
| 3 Gbps or 6 Gbps |
Products Details• 1 RF module for 3-sector site, 18 carrier (3x6) capacity with integrated Duplex Filters
• 3 x 80W at antenna connector
• Available in 900, 850,1900 and 1800 Band
• Active bandwidth software tunable for Full band@ 900 and 850 band and 35MHz IBW for 1800MHz and 1900 band
• 3 RP3 01 OBSAI Interfaces, for System Module connectivity and RRFFMM cchhaaiinniinngg
• 3 TX/RX Antenna Interfaces, 3 RX Diversity Antenna Interfaces
• 3 RX outputs for diversity sharing with co-sited BTS (Ultrasite/Flexi EDGE/BS2xx)
• Support for AISG 2.0 (only for peer technology), Bias-T’s and VSWR measurement
• Integrated DC line OVP, Class II rated to 5kA pulse
• 48V DC input
The Flexi Multiradio RF Module variants are
| Model name | Part Number | Description | RFM |
FXDA
| 472083A
| GSM 900 (E-GSM) 70W
| Flexi Multiradio RFM900
|
FXDJ
| 472143A
| GSM 900 J-Band (P-GSM for CDMA co-siting) 70W
| Flexi Multiradio RFM900
|
FXEA
| 472084A
| GSM 1800 70W
| Flexi Multiradio RFM1800
|
FXCA
| 472142A
| GSM 850 70W
| Flexi Multiradio RFM850
|
FXFA
| 472166A
| GSM 1900 70W
| Flexi Multiradio RFM1900
|
FXDB
| 472573A
| GSM 900 (E-GSM) 90W
| Flexi Multiradio RFM900
|
FXEB
| 472501A
| GSM 1800 90W
| Flexi Multiradio RFM1800
|
FXFB
| 472569A
| GSM 1900 70W
| Flexi Multiradio RFM1900
|
RF Standards
Radio Technology
| Standard
|
Multi Standard Radio
| 3GPP TS 37.104 and 37.141 release 9 for FXxA/FHxA/ ESMx and rel 10 for FXDB, FXCB,FXFCFXEB, FHEB and FHDB.
|
GSM/EDGE
| 3GPP TS 45.005 and 51.021 release 8 for FXxA/FHxB/ESMx and rel 10 for FXDB,FXCB,FXFC and FXEB
|
WCDMA
| 3GPP TS 25.104 and 25.141 release 8 for FXxA/FXFB/ESMx and rel 10 for FXDB, FXCB,FXFC and FXEB
|
LTE
| 3GPP TS 36.104 and 36.141 release 8 for FXxA/FXFB/ESMx and rel 10 for FXDB, FXCB,FXFC and FXEB
|
