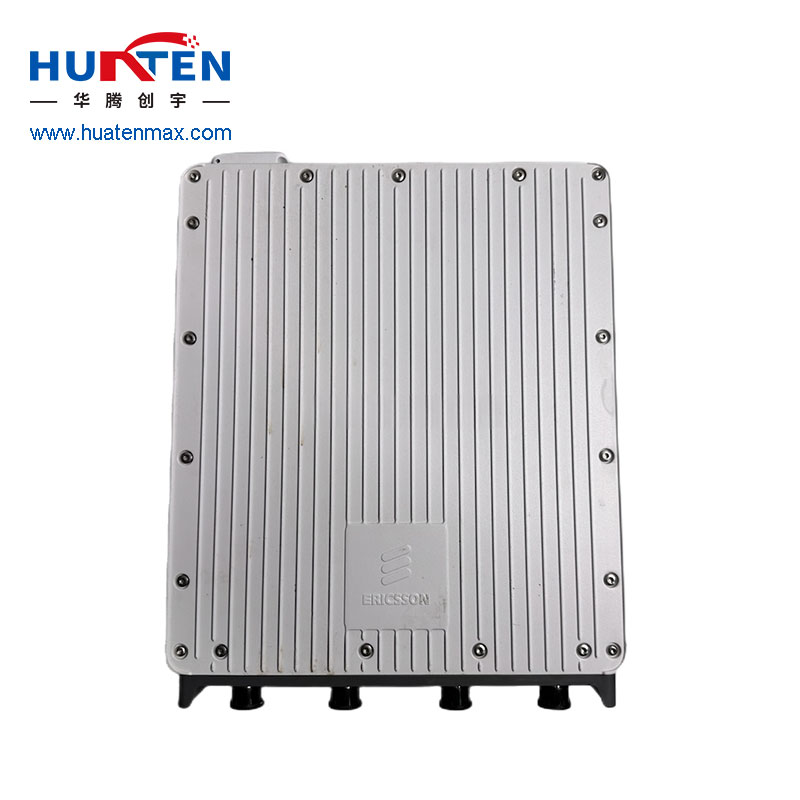

Radio 2218 B40U
| Radio 4418 B40N
| Radio 4408 B40U
| Radio 8863 B40(GA Q2/21) | AIR 3239 B40
|
2TX/2RX
| 4TX/4RX
| 4TX/4RX TDD
| Support split mode (2 x 4T4R or 4 x 2T2R as multi-sectorsolution)
| Advanced Antenna System (AAS)
|
4TX/4RX by use of two 2218
| Support split mode (2 x 2T2R as multi-sector solution)
| 4x5W
| Tx Power 8x50W (B42, B40)
| 32TX/RX with 128 AE
|
Tx Power 2x40W
| Tx Power 4x48W
| 95MHz IBW TDD
| 100MHz IBW TDD
| 100W total output power
|
60 MHZ IBW TDD
| 95MHZ IBW TDD
| Up to 6 LTE carriers
| 100MHz carrier bandwidth
| EIRP 72 dBm (band depended)
|
Up to 3 LTE carriers
| Up to 6 LTE carriers
| Up to 95MHz NR carrier bandwidth
| 2x10.1/25Gbps CPRI
| 100 MHz IBW
|
2x2.5/5/9.8Gbps CPRI
| 2x2.5/5/9.8/10.1Gbps CPRI
| 2x 2.5/5/9.8/10.1GbpS CPRI
| 21.5 liter, 23kg (B41, B41K)
| Up to 3 carriers NR or LTE
|
12,7 liter 11.5 kg
| 15 liter, 16kg
| 4 liter, less than 5kg incl bracket and cover
| 22.6 liter, 24.9kg (B78K B42,B40,B77D)
| Max total carrier BW is 100MHz for NR, or 60MHz for LTE
|
-48 VDC
| -48 VDC 2-wire
| AC or -48 VDC
| External antenna calibration
| 3 x10 Gbps eCPRI (1x25 Gbps eCPRI HW prepared)
|
AISG & RET support
| AISG RET support via RS-485
| Integrated or external antenna
| -48 VDC 3-wire
| Weight: ~ 20 kg (band depended)
|
2 external alarm
| 2 external alarm
| 2 external alarm
| AISG RET support via RS-485 or RF connectors
| Size (H xW x D):~ 530 x 411 x 122 mm (band depended)
|
Optional fan for incregsed site flexibility
| Convectional cooling
| IP 65
| Optional fan for increased site flexibility
| -48 VDC 3-wire (possible to connect as 2-wire)
|
IP 65, -40 to +55 ℃
| IP 65, -40 to +55 ℃
| -40 to +55 ℃
| 2 external alarm
| -40 to +55℃
|
| - | - | - | Convectional cooling
| Support number of layers: DL/UL 12/6
|
| - | - | - | IP 65, -40 to +55℃
| - |
