  • 7604-RSP720CXL-R (USED)
  • 7604-RSP720CXL-R (USED)

7604-RSP720CXL-R (USED)

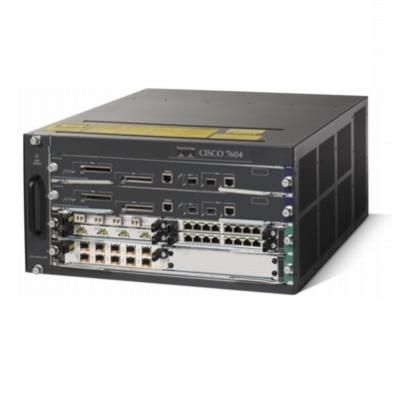

Model:7604-RSP720CXL-R Cisco 7604 Router
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

Introduction Cisco's 7604-RSP720CXL-R (USED) is a robust 4-slot chassis ideal for those seeking redundant systems. The package includes 2 RSP720-3CXL route switch processors and 2 power supplies, tailored for engineers and network administrators in high-demand scenarios.

7604-RSP720CXL-R Product Highlights

  • ● 4-slot chassis design
  • ● Redundant system capability
  • ● Includes 2 RSP720-3CXL
  • ● Supports 2 power supplies
  • ● Suitable for high-demand environments

Product Features Comparison

Model Chassis Slots Processor Power Supplies Redundancy Usage Scenario
Cisco 7604-RSP720CXL-R (USED) 4 2 RSP720-3CXL 2 Yes High-demand
Cisco 7606-S 6 SUP720 2 Yes Service Providers
Cisco 7609-S 9 SUP720 2 Yes Large Enterprises
Cisco ASR 9006 8 RP2 2 Yes ISPs
Cisco ASR 9010 10 RP2 2 Yes Core Networks
Juniper MX480 8 RE-S-1800X4 2 Yes Data Centers

7604-RSP720CXL-R Product Application Scenarios

  • ● Medium to large enterprises
  • ● Service Provider edge routing
  • ● Redundant network infrastructure

Optional Add-ons

Accessory Model Description
WS-X6748-GE-TX 48-Port GE Ethernet Module
WS-F6700-CFC Centralized Forwarding Card
PWR-2700-AC/4 AC Power Supply for 7604

Get More Information

Discover unbeatable prices and fast shipping for the Cisco 7604-RSP720CXL-R. Access the detailed 7604-RSP720CXL-R datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

7604-RSP720CXL-R Specification

General
Device TypeRouter - with 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL
Enclosure TypeDesktop - modular - 5U
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
PerformanceIPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
CapacityIPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 256000 ¦ ACL rules: 256000
Network / Transport ProtocolTCP/IP, ICMP/IP
Routing ProtocolOSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
FeaturesLayer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant StandardsIEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
ProcessorPowerPC 1.2 GHz
RAM3 GB (installed) / 6 GB (max)
