Position：Home / Products / Routers / Cisco Routers / Cisco Router 7600 Series

  • 7604-RSP720CXL-P (USED)
  • 7604-RSP720CXL-P (USED)

7604-RSP720CXL-P (USED)

Model:7604-RSP720CXL-P Cisco 7604 Router
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview
Cisco <a target="_blank" title="7604-RSP720CXL-P" href="https://www.huatenmax.com/7604-rsp720cxl-p-p-384.html">7604-RSP720CXL-P</a> (USED) Product Introduction

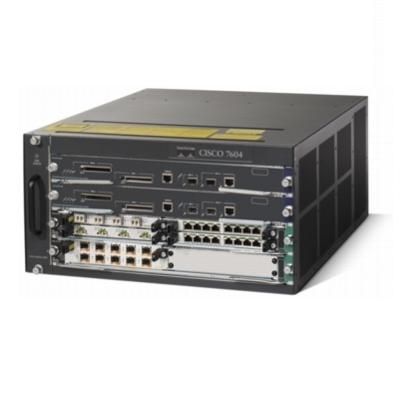

The Cisco 7604-RSP720CXL-P is a high-performance, used four-slot chassis equipped with RSP720-3CXL and power supplies. Ideal for service providers and large enterprises, it boasts robust routing capabilities and flexibility, enhancing network performance. Perfect for demanding environments requiring scalability and reliability.

Cisco 7604-RSP720CXL-P Product Highlights

  • ● High-performance routing
  • ● Four-slot chassis
  • ● Comes with RSP720-3CXL
  • ● Dual power supplies included
  • ● Ideal for large enterprises

Product Features Comparison

Features Cisco 7604-RSP720CXL-P Cisco 7606-S Cisco ASR 9001 Juniper MX480 Arista 7500R Huawei NE40E-X1 HP 5800
Chassis Slots 4 6 2 8 8 4 4
Routing Engine RSP720-3CXL SUP720-3BXL RP2 RE-S-1800X4 Supervisor 7800 SRU20 None
Redundant Power Yes Yes Yes Yes Yes Yes No
Max Throughput 720 Gbps 40 Gbps 1.92 Tbps 1.6 Tbps 30 Tbps 2.56 Tbps 256 Gbps
Target Market Enterprise Enterprise Service Provider Service Provider Enterprise Enterprise Enterprise
Layer Support Layer 3 Layer 3 Layer 3 Layer 3 Layer 3 Layer 3 Layer 3

Cisco 7604-RSP720CXL-P Product Application Scenarios

  • ● Large-scale enterprise networking
  • ● High-performance service provider environments
  • ● Scalable WAN connectivity

Optional Add-ons

Model Description
Cisco PWR-2700-AC/4 2700W AC Power Supply
Cisco WS-X6708-10G-3C 8-Port 10GE Module
Cisco MEM-C6K-CPTFL2GB 2GB Compact Flash Memory

Get More Information

Discover unbeatable prices and fast shipping for the Cisco 7604-RSP720CXL-P (USED). Access the detailed Cisco 7604-RSP720CXL-P (USED) datasheet and ensure youre getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

7604-RSP720CXL-P Specification

General
Device TypeRouter - with Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL
Enclosure TypeDesktop - modular - 5U
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
PerformanceIPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
CapacityIPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 256000 ¦ ACL rules: 256000
Network / Transport ProtocolTCP/IP, ICMP/IP
Routing ProtocolOSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
FeaturesLayer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant StandardsIEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
ProcessorPowerPC 1.2 GHz
RAM3 GB (installed) / 6 GB (max)
Expansion / Connectivity
Interfaces1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slots4 (total) / 3 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)1 (installed) / 4 (max)
Power
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Installed Qty1 (installed) / 2 (max)
Dimensions & Weight
Width17.5 in
Depth21.7 in
Height8.7 in
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating10 - 85%
