  • HAC-HFW1800TL
  • HAC-HFW1800TL

HAC-HFW1800TL

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

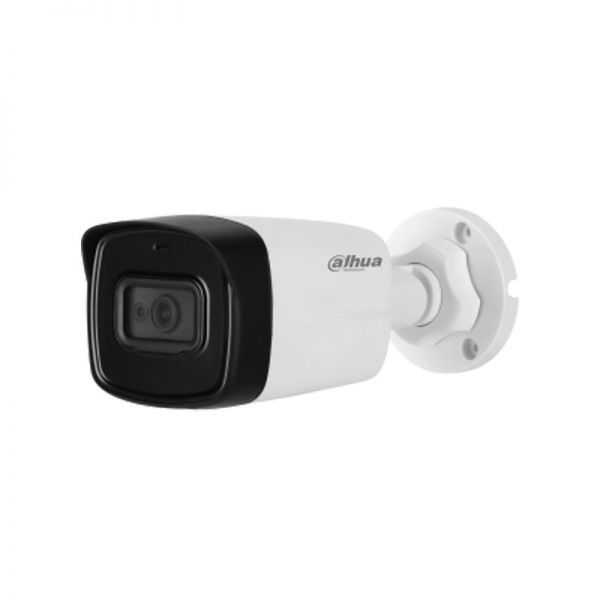

The Dahua HAC-HFW1800TL is a cutting-edge 4K Real-time HDCVI IR Bullet Camera designed to provide superior image quality and advanced surveillance capabilities. Engineered by Dahua Technology, a global leader in security and surveillance solutions, this camera combines high-resolution imaging with robust features to ensure reliable performance in various environments.

Quick Spec

Image Sensor 1/2.7" CMOS
Resolution 3840 x 2160 (4K)
IR Distance Up to 80 meters
Lens Type Fixed lens, 3.6mm
Weatherproofing IP67

Product Features

  • ● 4K UHD resolution delivering exceptional image clarity.
  • ● Advanced infrared technology for low-light and nighttime visibility up to 80 meters.
  • ● Rugged design with IP67 rating for outdoor and harsh environment installation.
  • ● High-performance, low noise 1/2.7" CMOS sensor.
  • ● Support for HDCVI/HDTVI/AHD/ANALOG output, switchable.

Product Applications

  • ● Monitoring public spaces such as parks, squares, and streets to ensure public safety.
  • ● Surveillance in commercial buildings and retail stores to prevent theft and vandalism.
  • ● Residential property security including driveways, front yards, and perimeters.

Supported Options

Junction Box PFA134
Wall Mount PFA150
Pole Mount PFA152-E

Compare to Similar Items

Model Differences
HAC-HFW1200TL 2MP resolution, IR distance up to 30 meters
HAC-HFW1400TL 4MP resolution, IR distance up to 50 meters
HAC-HFW1800TP 8MP resolution, motorized lens, IR distance up to 100 meters

Get more information

For further information about the Dahua HAC-HFW1800TL and pricing details, please contact us via Live Chat or email us at Contact@huatenmax.com.

Specification

HAC-HFW1800TL Specifications

Brand Dahua
Product Name HAC-HFW1800TL
Resolution 4K Ultra HD
Image Sensor 1/2.7" CMOS
Effective Pixels 3840 (H) ?? 2160 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s?C1/100,000s; NTSC: 1/3s?C1/100,000s
Min. Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
Day/Night Auto (ICR) / Manual
IR LEDs 1
Lens Type Fixed lens / Fixed iris
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max. Aperture F2.0
Angle of View H: 87?? (103??, 54??)
Pan/Tilt/Rotation Range Pan: 0??C360??; Tilt: 0??C90??; Rotation: 0??C360??
Video Frame Rate 4K@15fps; 4MP@25/30fps; 1080P@25/30fps; 720P@50/60fps
Video Output 1-channel BNC high definition video output / CVBS video output (can switch)
Audio Interface Built-in Mic
Power Supply 12V DC ??30%
Power Consumption Max 4.9W (12V DC, IR on)
Operating Conditions -40??C to +60??C (-40??F to +140??F) / Less than 95% RH
Ingress Protection IP67
Dimensions 179.9mm??70mm??70mm (7.09"??2.76"??2.76")
Net Weight ??0.46kg (1.01lb)
