Position：Home / Products / Video Surveillance / Dahua Video Surveillance / Dahua CVI

  • HAC-HDW1220M
  • HAC-HDW1220M

HAC-HDW1220M

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

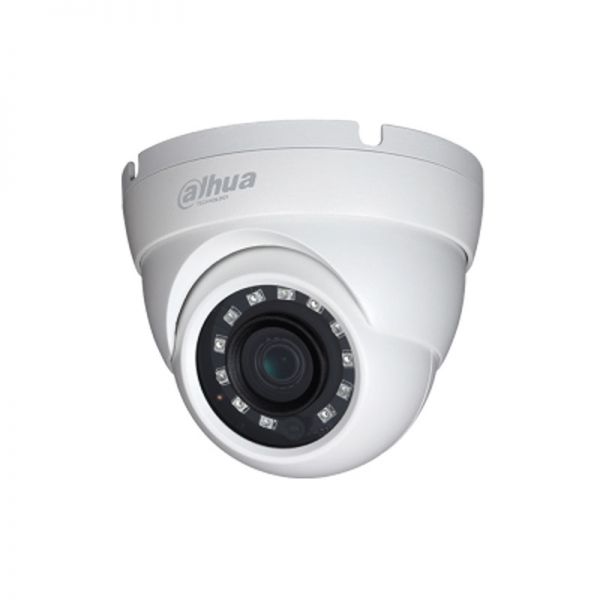

The Dahua HAC-HDW1220M is a high-quality 2MP Value Starlight HDCVI IR Eyeball Camera, designed to deliver superior image performance in varying lighting conditions. This robust surveillance camera is perfect for both indoor and outdoor applications, ensuring clear and detailed footage, day or night.

Quick Spec

Resolution2 Megapixels (1920 x 1080)
Image Sensor1/2.8" CMOS
IR DistanceUp to 30 meters
Lens3.6mm Fixed Lens
Weather ProtectionIP67

Product Features

  • ● 1080p Full HD video output for crystal-clear footage
  • ● Starlight technology for enhanced low-light visibility
  • ● Built-in IR LEDs for up to 30 meters of night vision
  • ● Supports HDCVI/TVI/AHD/CVBS video output
  • ● Durable IP67 weatherproof housing

Product Applications

  • ● Outdoor surveillance for residential properties
  • ● Indoor monitoring for retail stores
  • ● Parking lot security for commercial buildings

Supported Options

Wall Mount BracketPFB204W
Junction BoxPFA130-E
Power AdapterPFM300

Compare to Similar Items

ModelDifferences
Dahua HAC-HDW1200EMP-AAudio support, shorter IR distance
Dahua HAC-HFW1200R-VFVarifocal lens, different form factor
Dahua HAC-HDW1230EMHigher IR distance, no Starlight technology

Get more information

Contact us through Live Chat or email Contact@huatenmax.com for further information about the product and its price. Check 'Dahua HAC-HDW1220M price and HAC-HDW1220M datasheet, buy 'Dahua HAC-HDW1220M HDCVI IR Eyeball Camera' with best price and fast shipping. Free Live Chat support is available.

Specification

HAC-HDW1220M Specifications

Brand Dahua
Model HAC-HDW1220M
Image Sensor 1/2.7" 2MP CMOS
Effective Pixels 1920 (H) x 1080 (V), 2MP
Scanning System Progressive
Minimum Illumination 0.005Lux/F1.2, 30IRE, 0Lux IR on
IR Distance Up to 20m (66ft)
Lens 3.6mm fixed lens (2.8mm, 6mm optional)
Field of View (H) 78.7° (3.6mm), 93° (2.8mm), 47° (6mm)
Video Frame Rate 1080P@25/30fps, 720P@25/30/50/60fps
Video Output 1-channel BNC HDCVI high definition video output & 1-channel CVBS video output (switchable)
Day/Night Auto (ICR) / Manual
Noise Reduction 2D
OSD Menu Multi-language
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Power Supply DC12V°30%
Power Consumption Max 3.8W
Working Environment -40°C~+60°C / -40°F~+140°F, Less than 90% RH
Ingress Protection IP67
Dimensions °106mm°93.7mm (°4.17°�3.69°)
