Overview

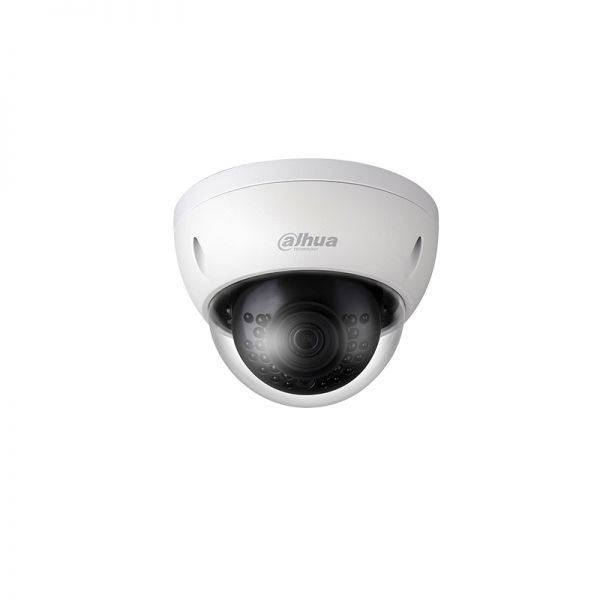

The Dahua A42AL23 is an advanced 4MP IR 3.6mm HDCVI Mini Dome camera designed to meet the exhaustive demands of modern security systems. Offering high-resolution imaging and robust durability, this mini dome camera ensures comprehensive surveillance in various settings. With state-of-the-art infrared technology and a sleek design, the Dahua A42AL23 is optimized for both day and night functionality.

Quick Spec

Image Sensor 1/3 inch CMOS
Effective Pixels 4MP (2560 x 1440)
Lens 3.6mm fixed lens
Infrared Distance Up to 20 meters (66 feet)
Day/Night ICR (Infrared Cut Removable)

Product Features

  • ● 4MP High-Resolution Imaging
  • ● 3.6mm Fixed Lens for Wide Coverage
  • ● Intelligent IR Technology
  • ● ICR for Clear Day/Night Vision
  • ● Rugged and Compact Dome Design

Product Applications

  • ● City Surveillance: Enhance urban security by monitoring streets and parks.
  • ● Commercial Buildings: Ensure the safety of premises and personnel in offices and malls.
  • ● Residential Areas: Provide high-quality surveillance for homes and housing complexes.

Supported Options

Wall Mount Bracket PFA139
Ceiling Mount Bracket PFB200C
Junction Box PFA130-E

Compare to Similar Items

Model Dahua A42AL23 Dahua HDBW4431R-ZS Dahua IPC-HFW2431S-S-S2
Resolution 4MP 4MP 4MP
Lens 3.6mm Fixed Motorized Vari-focal 2.7-12mm Fixed 2.8mm
Infrared Distance 20m 30m 30m
Form Factor Mini Dome Outdoor Dome Bullet
Day/Night ICR ICR ICR

Get more information

For further information and pricing on the Dahua A42AL23, contact us via Live Chat or at Contact@huatenmax.com. Check Dahua A42AL23 price and A42AL23 datasheet, buy Dahua A42AL23 HDCVI Mini Dome with the best price and fast shipping. Free Live Chat support is available.

Specification

A42AL23 Specifications

Brand Dahua
Model A42AL23
Camera Type Mini Dome
Resolution 4MP
Lens 3.6mm Fixed
IR Distance Up to 30m
Day/Night Auto (ICR) / Color / B/W
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable)
Max. IR LEDs Length 30m
IR On/Off Control Auto / Manual
Angle of View 87.5??
Operating Conditions -40??C to +60??C
Power Supply 12V DC
Power Consumption Max 5.5W
Ingress Protection IP67
Vandal Resistance IK10
Material Metal
Dimensions ??110mm ?? 81mm
Noise Reduction 2D / 3D
Digital Zoom 16x
