Overview

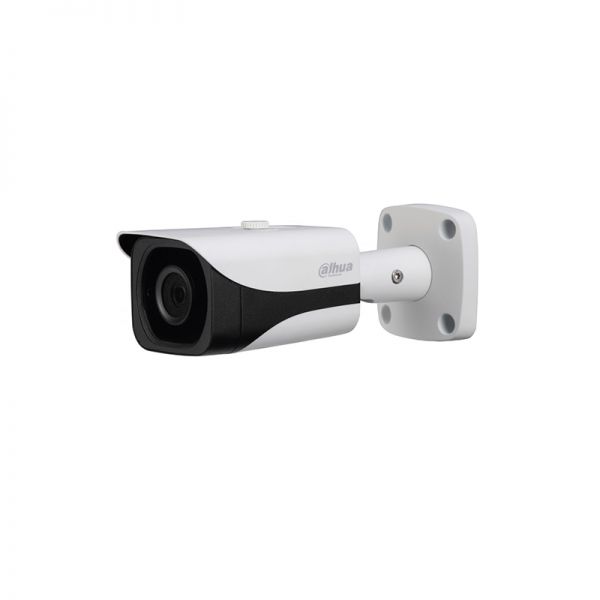

The Dahua A42AB23 is a cutting-edge 4MP IR 3.6mm HDCVI Mini Bullet camera designed for superior surveillance performance. With its advanced imaging capabilities and durable construction, this camera ensures reliable security monitoring in various environments. The compact size and sleek design make it an ideal choice for both indoor and outdoor installations, providing excellent image clarity and infrared night vision.

Quick Spec

Resolution 4MP
Lens 3.6mm
Infrared Range Up to 30 meters
Video Output HDCVI
Protection IP67

Product Features

  • ● 4 Megapixel high-resolution imaging
  • ● Integrated infrared LEDs for night vision
  • ● Fixed 3.6mm lens for wide-angle coverage
  • ● Weatherproof design with IP67 rating
  • ● High Definition Composite Video Interface (HDCVI) for seamless video transmission

Product Applications

  • ● Commercial surveillance in retail stores and office buildings
  • ● Residential security for monitoring driveways and entrance points
  • ● Outdoor surveillance in parking lots and public spaces

Supported Options

Wall Mount Bracket PFB203W
Junction Box PFA130-E
Conduit Box PFA200W

Compare to Similar Items

Model Differences
Dahua A42AB13 2MP resolution, shorter IR range
Dahua A82AB23 8MP resolution, wider field of view
Dahua T42AB23 4MP resolution, motorized lens

Get more information

For more information about the Dahua A42AB23 and its pricing, contact us through Live Chat or at Contact@huatenmax.com. Check Dahua A42AB23 price and A42AB23 datasheet, buy Dahua A42AB23 Mini Bullet with the best price and fast shipping. Free Live Chat is supported.

Specification

A42AB23 Specifications

Brand Dahua
Model A42AB23
Image Sensor 1/3" CMOS
Effective Pixels 2688(H) x 1520(V), 4 MP
Scanning System Progressive
Lens 3.6mm fixed lens
Angle of View 84??
IR Distance 30 meters
Day/Night ICR
Video Frame Rate 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC HDCVI high definition video output
Noise Reduction 2D
Ingress Protection IP67
Power Supply DC12V
Power Consumption Max 3.8W
Operating Temperature -30??C to +60??C
Dimension 154.3mm ?? 69.8mm ?? 69.8mm
Net Weight Approx. 320g
Gain Control AGC
Housing Metal
