Overview

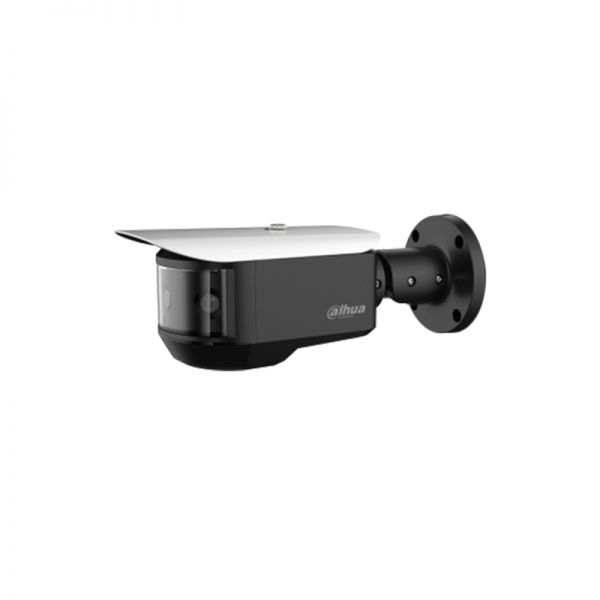

The Dahua HAC-PFW3601-A180 is a state-of-the-art 3x2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera designed to deliver unparalleled image quality and surveillance coverage. This cutting-edge camera incorporates multiple sensors to capture a broad range of visual data, making it ideal for monitoring large areas. With its advanced IR technology, it ensures clear visibility even in complete darkness.

Quick Spec

Brand Dahua
Model HAC-PFW3601-A180
Resolution 3x2MP
IR Range Up to 20 meters
Lens Type Fixed Lens

Product Features

  • ● Multi-Sensor Panoramic View
  • ● HDCVI Technology for High Definition Video Transmission
  • ● Smart IR Technology
  • ● Weatherproof Design (IP67 Rated)
  • ● Embedded with Intelligent Video Analytics

Product Applications

  • ● Large public squares needing extensive surveillance coverage
  • ● Entrances and exits of large buildings or venues
  • ● Perimeter security for industrial complexes

Supported Options

Wall Mount PFA137
Pole Mount PFA150
Junction Box PFA140

Compare to Similar Items

Model Differences
HAC-PFW3601-A180 3x2MP Resolution, Panoramic, IR
HAC-PFW3200-A180 2x2MP Resolution, Panoramic, Standard IR
HAC-PFW2501-A180 5MP Resolution, Single Sensor, IR
HAC-PFW4300-A180 4x1MP Resolution, Panoramic, Enhanced IR

Get more information

Check Dahua HAC-PFW3601-A180 price and HAC-PFW3601-A180 datasheet. Buy Dahua HAC-PFW3601-A180 Camera Series with the best price and fast shipping. Free Live Chat support is available. Contact us at Contact@huatenmax.com.

Specification

HAC-PFW3601-A180 Specifications
Brand Dahua
Model HAC-PFW3601-A180
Type IR Bullet Camera
Sensor 3x 2MP CMOS Sensors
Resolution 6MP (3x 2MP) Total
Video Output 1 Channel BNC HDCVI High Definition Video Output
Lens Type Fixed Lens
Lens Focal Length 2.8mm
Field of View 180-degrees Panoramic
IR Distance Up to 30 meters (98 feet)
Day/Night IR Cut Filter with Auto Switch
Min Illumination 0.03Lux/F2.0(Color), 0Lux/F2.0(IR on)
OSD Menu Multi-language
Backlight Compensation BLC / HLC / DWDR
Noise Reduction 2D / 3D
Power Supply 12V DC ��30%
Power Consumption Max. 11.5W (12V DC, IR on)
Operating Temperature -30��C to +60��C (-22��F to +140��F)
Ingress Protection IP67
Housing Material Metal
Dimension 288mm x 117mm x 103mm (11.34" x 4.61" x 4.06")
