Overview

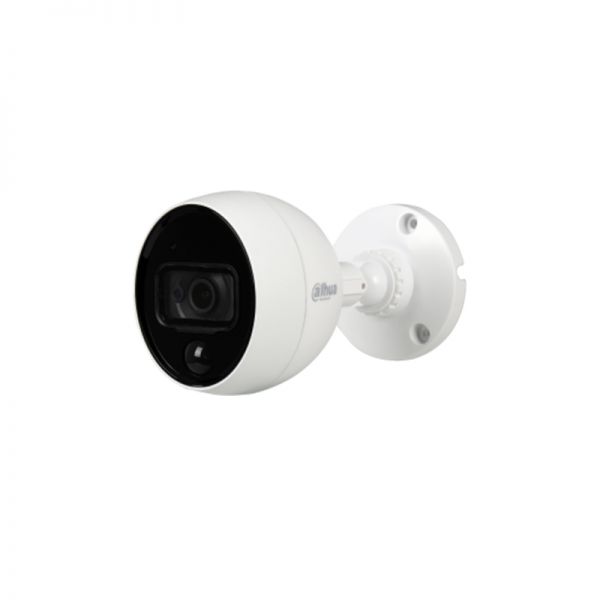

The Dahua HAC-ME2802B is an 8MP, 4K HDCVI MotionEye Camera designed to meet the high-security demands of modern surveillance systems. This camera is a part of Dahua's cutting-edge HDCVI series, offering ultra-high-definition video resolution, superior image quality, and advanced motion detection capabilities. Perfect for a wide range of applications, this camera ensures superb performance and reliability.

Quick Spec

Resolution 8MP
Video Output 4K
Lens Type Fixed
IR Distance Up to 30m
Camera Series HDCVI

Product Features

  • ● 8MP resolution for ultra-high-definition video
  • ● Advanced motion detection with MotionEye technology
  • ● 4K HDCVI video output for superior image clarity
  • ● Enhanced night vision with up to 30m IR distance
  • ● Weather-resistant design for both indoor and outdoor use

Product Applications

  • ● Retail stores, to monitor customer traffic and prevent theft
  • ● Office buildings, ensuring high-security surveillance around the clock
  • ● Residential properties, providing a reliable security solution for homes

Supported Options

Mount Bracket PFA130-E
Junction Box PFA139
Pole Mount PFA152-E

Compare to Similar Items

HAC-ME2802B 8MP, 4K HDCVI
HAC-HFW3802E 8MP, No MotionEye, Starlight Technology
HAC-HDBW2802R-Z 8MP, 4K HDCVI, Motorized Lens
HAC-HFW1200R 2MP, 1080P, Basic HDCVI

Get more information

For further details about the Dahua HAC-ME2802B, please contact us via Live Chat or at Contact@huatenmax.com. Check Dahua HAC-ME2802B price and HAC-ME2802B datasheet, buy Dahua HAC-ME2802B HDCVI with the best price and fast shipping. Free Live Chat is supported.

Specification

HAC-ME2802B Specifications

Brand Dahua
Model HAC-ME2802B
Image Sensor 8MP CMOS
Resolution 4K (3840 x 2160)
Effective Pixels 3840 (H) x 2160 (V)
Min. Illumination 0.1Lux/F1.6, 30IRE, 0Lux IR on
IR Distance Up to 30m (98ft)
IR LEDs 2
Lens Type Fixed Lens / Fixed iris
Focal Length 2.8mm
Horizontal Field of View 102??
Video Frame Rate 30/25fps@4K, 30/25fps@1080P, 30/25fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (switchable)
Audio Interface 1-channel audio in
Motion Detection Supported
Operating Conditions -30??C to +60??C (-22??F to +140??F) / Less than 95% RH
Power Supply DC12V??30%
Power Consumption Max 4.6W (12V DC, IR on)
Ingress Protection IP67
Dimensions 173mm x 70mm x 70mm (6.81" x 2.76" x 2.76")
Net Weight Approx. 0.37kg (0.82lb)
