Overview

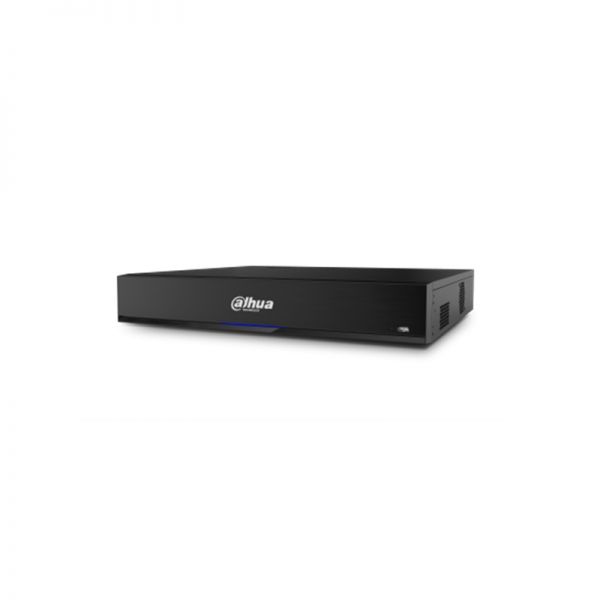

The Dahua XVR7416L-4KL-X is a top-tier 16 Channel Penta-brid 4K 1.5U Digital Video Recorder, perfect for security and surveillance systems. With its advanced technology and robust design, this Pro Series DVR ensures high-quality video recording, efficiency, and reliability for various applications. Explore the power of the Dahua XVR7416L-4KL-X for superior security solutions.

Quick Spec

Brand Dahua
Product Name XVR7416L-4KL-X
Channels 16
Video Resolution 4K
Form Factor 1.5U
Product Series Pro

Product Features

  • ● Supports Penta-brid video input: HDCVI, AHD, TVI, CVBS, and IP.
  • ● H.265 dual-stream video compression.
  • ● Maximum 16 channels IP camera inputs, each channel up to 8MP; maximum incoming bandwidth: 128Mbps.
  • ● Smart H.264+/H.265+ codec to reduce bandwidth and storage requirements.
  • ● Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS.

Product Applications

  • ● Banking and Financial Institutions: Ensure high-security surveillance with 4K resolution for detailed monitoring.
  • ● Retail Chains: Efficiently monitor multiple store locations with the 16-channel capability.
  • ● Urban Traffic Management: Observe and analyze high-traffic areas with reliable recording and playback features.

Supported Options

Accessory Model
Hard Disk Drive HDD500GB-DAH
Coaxial Cable COAX100M-DAH
Power Supply PWR12V5A-DAH

Compare to Similar Items

Model Differences
XVR7416L-4K-X Similar model but without additional IP camera input support.
XVR7816H-4KL-X Comes with higher processing power and enhanced AI analytics.
XVR5216AN-4KL Does not support penta-brid video input.

Get more information

For further details, please contact us via Live Chat or email at Contact@huatenmax.com. Check Dahua XVR7416L-4KL-X price and XVR7416L-4KL-X datasheet, buy Dahua XVR7416L-4KL-X Pro Series with the best price and fast shipping. Free Live Chat is supported.

Specification

XVR7416L-4KL-X Specifications

Brand Dahua
Model XVR7416L-4KL-X
Channels 16
Video Compression H.265+/H.265
Recording Resolution 4K
Hybrid Support Penta-brid
Rack Unit Size 1.5U
Maximum HDD Support 8TB x 8
Internal Storage Not included
HDMI Output 2 (up to 3840x2160)
VGA Output 1 (up to 1920x1080)
Audio In/Out 16/1
Network Interface 1 RJ-45 Port (1000M)
USB Interface 2 USB 2.0, 1 USB 3.0
Power Supply AC100V-240V, 50/60Hz
Power Consumption 40W (without HDD)
Working Temperature -10��C ~ +55��C
Working Humidity 10%~90%
Dimensions (W x D x H) 1U, 440 x 410 x 76mm
Backup Method USB Device, Network
Alarm In/Out 16/6
