XVR5216AN-4KL-X-16P

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com1

Live Chat
Overview

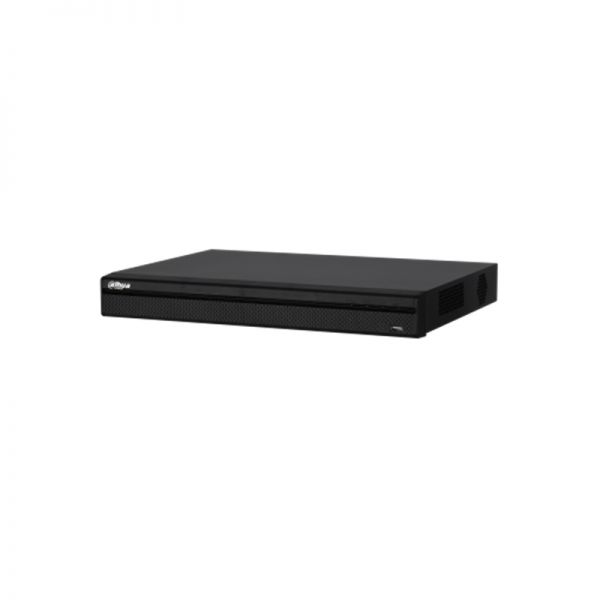

The Dahua XVR52116AN-4KL-X-16P is a versatile 16 Channel Penta-brid 4K 1U Digital Video Recorder designed to deliver exceptional video recording performance. Ideal for various surveillance needs, this product supports multiple video formats, high-resolution recording, and efficient storage management, making it a robust solution for both residential and commercial applications.

Quick Spec

Brand Dahua
Model XVR5216AN-4KL-X-16P
Channels 16
Video Resolution 4K
Form Factor 1U

Product Features

  • ● Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
  • ● 4K resolution for crystal clear video recording.
  • ● Smart H.265+ encoding for efficient storage utilization.
  • ● Built-in Real-time Face Recognition and Face Detection.
  • ● Powered by deep learning AI technology for advanced analytics.

Product Applications

  • ● Commercial surveillance in retail environments.
  • ● Residential security monitoring for homes.
  • ● Public sector use in schools and government buildings.

Supported Options

Accessory Model
PoE Switch PFS4210-8P-120
Surveillance Hard Disk HDD-ST1000VX005
Backup Battery UPS-1200VA

Compare to Similar Items

Model Difference
XVR5216AN-4K-I Supports only HDCVI and IP inputs
XVR4116HS-X Lower maximum resolution at 1080P
XVR5416L-X Larger form factor (2U) and higher power consumption

Get more information

For further information about the Dahua XVR5216AN-4KL-X-16P, including its price and datasheet, please contact us through Live Chat or via Contact@huatenmax.com. Check Dahua XVR5216AN-4KL-X-16P price and XVR5216AN-4KL-X-16P datasheet, buy Dahua XVR5216AN-4KL-X-16P Digital Video Recorder with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR5216AN-4KL-X-16P Specifications

Brand Dahua
Model XVR5216AN-4KL-X-16P
Video Compression H.265+/H.265/H.264+/H.264
Video Input 16 channels
Audio Input 1 channel, RCA
Audio Output 1 channel, RCA
Display Resolution Up to 4K
Playback Resolution 4K (8MP), 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
Multi-channel Playback 16 channels
Network Bandwidth 64 Mbps incoming, 64 Mbps outgoing
Storage 2 SATA ports (up to 10TB capacity for each HDD)
USB Interface 2 USB 2.0 ports
Ethernet 1 RJ-45 port (1000 Mbps)
Power Supply DC 12V/3A
Power Consumption < 15W (without HDD)
Operating Temperature -10��C ~ +55��C
Dimension 1U, 375mm x 287mm x 53mm
Recording Modes Manual, Schedule, Motion Detection, Alarm
Remote Connection Web viewer, CMS (DSS/PSS), DMSS
Backup Mode USB device, Network
Supported Browsers IE, Chrome, Firefox, Safari
