Overview

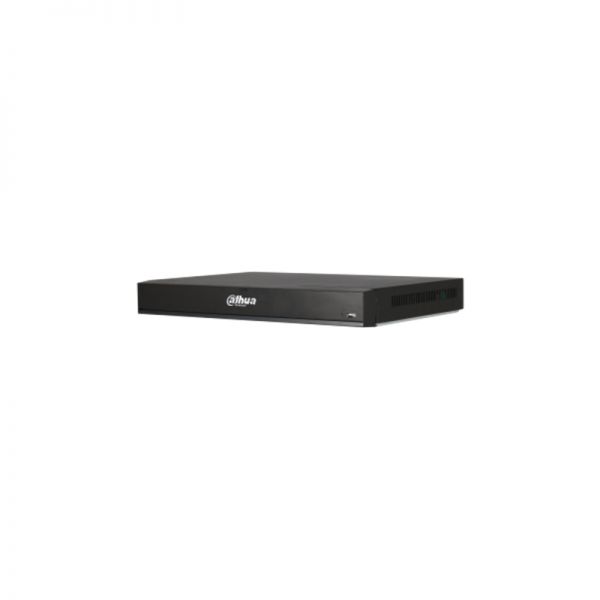

The Dahua XVR7216A-4KL-X is a 16 Channel Penta-brid 4K 1U Digital Video Recorder, engineered to deliver top-tier video recording and monitoring performance in a compact 1U chassis. Featuring seamless integration with various camera technologies, the XVR7216A-4KL-X ensures high-definition video quality and reliable security surveillance. This versatile recorder is perfect for diverse security applications, offering unparalleled performance, flexibility, and advanced functionalities.

Quick Spec

Channels 16
Resolution 4K
Form Factor 1U
Video Input Penta-brid
Remote Access Yes

Product Features

  • ● Supports up to 16 Channels
  • ● Ultra HD 4K resolution for superior video quality
  • ● Penta-brid technology: HDCVI, AHD, TVI, CVBS, and IP
  • ● Remote access through mobile and web applications
  • ● Intelligent video system (IVS) for real-time monitoring

Product Applications

  • ● Retail Stores: Ideal for monitoring large areas and recording high-definition footage of customer and staff activities.
  • ● Office Buildings: Suitable for securing entrances, exits, and common areas with advanced video surveillance.
  • ● Warehouses: Provides reliable video recording for inventory management and safety compliance.

Supported Options

Security Camera DH-HAC-HFW1200T
Power Supply PFM300
Hard Drive HDD-ST2000VX008

Compare to Similar Items

Model Difference
Dahua XVR5216AN-4KL-X Compact design with fewer intelligent features
Dahua XVR7208A-4K-X Supports 8 channels instead of 16
Dahua NVR4232-4KS2 Network-only recorder, does not support Penta-brid

Get more information

For further information about the Dahua XVR7216A-4KL-X and its price, contact us via Live Chat or at Contact@huatenmax.com. Check "Dahua XVR7216A-4KL-X" price and "XVR7216A-4KL-X datasheet," buy "Dahua XVR7216A-4KL-X Series" with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR7216A-4KL-X Specifications

Brand Dahua
Model XVR7216A-4KL-X
Type Digital Video Recorder (DVR)
Channels 16 Channels
Penta-brid Yes (Supports CVI/CVBS/IP/TVI/AHD)
Resolution 4K
Format 1U
Max IP Channels 24 Channels
Max Recording Resolution 8MP (4K)
Video Outputs HDMI/VGA
Audio In/Out 1/1 Channel
Alarm In/Out 16/6
Network Interface 1 RJ-45 Port (1000M)
USB Ports 2 USB Ports (1 USB 2.0, 1 USB 3.0)
Backup Method USB Device, Network
HDD 2 SATA ports, up to 10TB per HDD
Power Supply DC 12V/4A
Power Consumption < 10W (without HDD)
Operating Temperature -10��C ~ +55��C (+14��F ~ +131��F)
Dimensions 1U, 375mm x 287mm x 53mm (W x D x H)
Supports Mobile App Yes (iOS, Android)
