XVR7116HE-4KL-X

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

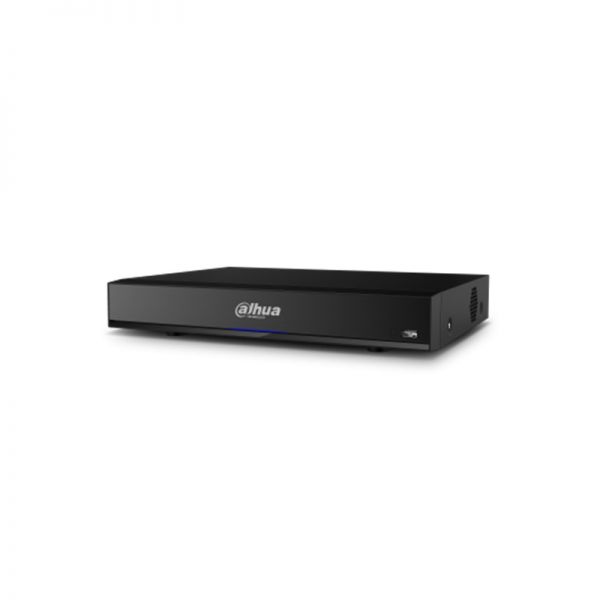

The Dahua XVR7116HE-4KL-X is a high-performance 16 Channel Penta-brid 4K Mini 1U Digital Video Recorder. Designed for scalable and advanced security surveillance, this device offers exceptional video recording and playback functionalities. It supports various camera technologies including HD-CVI, AHD, TVI, CVBS, and IP, making it a versatile choice for various security applications.

Quick Spec

Channels 16
Video Compression H.265+
Resolution 4K (3840 x 2160)
Audio Input/Output 1/1
Storage 2 SATA III up to 10 TB

Product Features

  • ● Supports up to 16 channels of video input from HD-CVI, AHD, TVI, CVBS, and IP cameras
  • ● Advanced H.265+ video compression technology for reduced storage requirements
  • ● Real-time 16-channel synchronous playback
  • ● Intelligent Video System (IVS) with perimeter protection
  • ● Smart Search for efficient event retrieval and analysis

Product Applications

  • ● Large-scale corporate office surveillance with multiple camera types
  • ● Retail store monitoring requiring high-resolution and reliable video recording
  • ● Educational institutions implementing comprehensive security systems for campus safety

Supported Options

Hard Drive WD Purple 4TB
Power Supply PWR-12V-5A
Remote Control RC-IR1

Compare to Similar Items

Model Differences
XVR5216AN-4KL Supports fewer channels (8 channels)
XVR7108E-4KL-X Smaller storage capacity (1 SATA up to 6 TB)
XVR4116HS Lower resolution support (up to 1080p)

Get more information

For further details about the Dahua XVR7116HE-4KL-X, including pricing and the datasheet, please contact us through Live Chat or email at Contact@huatenmax.com. Check Dahua XVR7116HE-4KL-X price and XVR7116HE-4KL-X datasheet, and buy Dahua XVR series with the best price and fast shipping. Free Live Chat support is available.

Specification

XVR7116HE-4KL-X Specifications

Brand Dahua
Model XVR7116HE-4KL-X
Video Compression H.265+/H.265/H.264+/H.264
Video System PAL/NTSC
IP Video Input 16 Channels
BNC Input 16 Channels
Audio Input 1 Channel, RCA
Audio Output 1 Channel, RCA
Max Resolution 4K
Display Split 1/4/8/9/16
Interfaces 1 HDMI, 1 VGA
Network Interface 1 RJ45 Port (100Mbps)
USB Interface 2 USB 2.0 Ports
HDD 1 SATA Port, Up to 10TB Capacity
Power Supply 12V DC, 2A
Power Consumption <5W (Without HDD)
Operating Temperature -10��C to +55��C (+14��F to +131��F)
Dimensions (W x D x H) 260mm x 236mm x 48mm
Net Weight 1.2kg (2.65 lb)
Gross Weight 1.8kg (3.97 lb)
Remote Access P2P, SmartPSS, Mobile App
