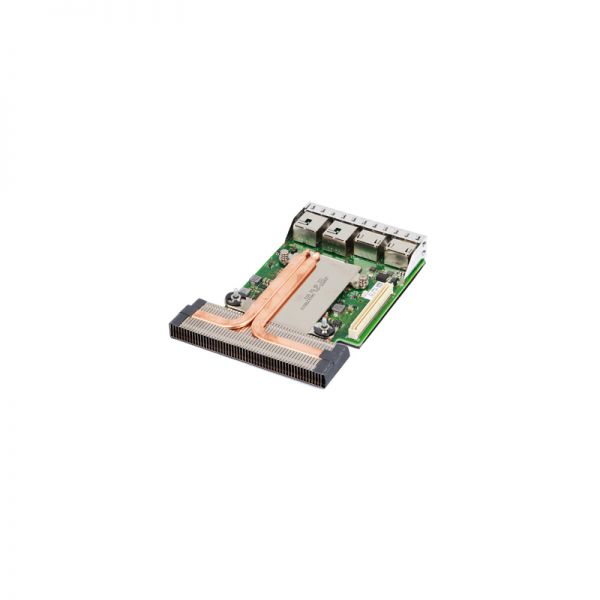

Dell Network Cards, 540-BBUZ Intel X550 2*10GbE BASE-T & i350 2*GbE BASE-T

Model:540-BBUZ - Dell Network Cards
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

Upgrade your server's networking capabilities with the Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC. This powerful network adapter combines high-speed 10GbE connectivity with energy-efficient 1GbE ports, making it the ideal choice for data centers, virtualized environments, and high-performance computing applications.

Quick Spec

Table 1 shows the quick spec of Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC.

Product Name Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC
SKU 540-BBUZ
Interface 2 x 10GbE BASE-T, 2 x 1GbE BASE-T
Data Rate 10 Gbps (10GbE ports), 1 Gbps (1GbE ports)
Form Factor rNDC

Product Features

  • ● Dual 10GbE BASE-T ports for high-speed connectivity
  • ● Dual 1GbE BASE-T ports for energy-efficient operation
  • ● Advanced virtualization features for improved network efficiency and performance
  • ● Low-latency design for time-sensitive applications
  • ● Easy integration with existing network infrastructure

Product Applications

  • ● Data centers requiring high-speed network connectivity and energy efficiency
  • ● Virtualized environments with demanding network requirements
  • ● High-performance computing and storage applications

Supported Options

Table 2 shows the supported options of Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC.

Option Name Model
10GBase-T SFP+ Transceiver TXC432-CU1M
10GBase-T SFP+ Transceiver TXC432-CU3M
10GBase-T SFP Model
10GBase-T SFP+ Transceiver TXC432-CU5M

Compare to Similar Items

Table 3 shows the comparison to similar items of Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC.

Model Differences
DL:555-BCKP-Intel-X710-4-10GbE-SFP 4 x 10GbE SFP+ ports, Intel X710 chipset
DL:540-BBUL-Broadcom-57412-2-10GbE-SFP-5720-2-GbE 2 x 10GbE SFP+ ports, 2 x 1GbE BASE-T ports, Broadcom 57412 chipset
DL:540-BBUK-Broadcom-57416-2-10GbE-BASE-T-5720-2-GbE-BASE-T 2 x 10GbE BASE-T ports, 2 x 1GbE BASE-T ports, Broadcom 57416 chipset

Get more information

Do you have any question about the Intel X550 Dual Ports 10GbE BASE-T & i350 Dual Ports 1GbE BASE-T rNDC?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DL:540-BBUZ-Intel-X550-2-10GbE-BASE-T-i350-2-GbE-BASE-T Specifications
Model DL:540-BBUZ-Intel-X550-2-10GbE-BASE-T-i350-2-GbE-BASE-T
SKU 540-BBUZ
Brand Intel
Ports 2x 10GbE BASE-T, 2x 1GbE BASE-T
Interface PCIe 3.0 x8
Network Standard 10GbE, 1GbE
Controller Intel X550, i350
Form Factor Low profile
Virtualization Yes (VMware)
OS Support Windows, Linux, VMware
RoHS Yes
MTBF 1.5 Million Hours
Power Consumption 10.4W (typical)
Cabling Type Category 6A or Category 7A
Intel® Virtual Machine Device Queues (VMDq) Yes
Intel® Ethernet Power Management Yes
Jumbo Frames Yes (up to 9.5KB)
On-chip QoS and Traffic Management Yes
Flexible Port Partitioning Yes
Intel® Data Direct I/O Technology (Intel® DDIO) Yes
Intel® Ethernet Flow Director Yes
