  • Dell Network Cards, 540-BBBW Broadcom 5720 4*GbE BASE-T
  • Dell Network Cards, 540-BBBW Broadcom 5720 4*GbE BASE-T

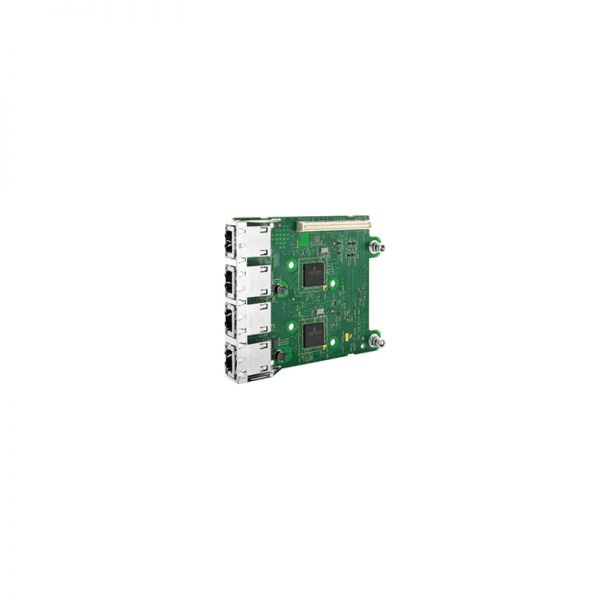

Dell Network Cards, 540-BBBW Broadcom 5720 4*GbE BASE-T

Model:540-BBBW - Dell Network Cards
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

Optimize your network performance with the Broadcom 5720 Four Ports 1GbE BASE-T rNDC, offering reliable and efficient connectivity for your server. Suitable for small to medium-sized businesses, this network adapter ensures high-speed data transfer and low-latency communication across your network infrastructure.

Quick Spec

Table 1 shows the quick spec of DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T.

Product Name Broadcom 5720 Four Ports 1GbE BASE-T rNDC
SKU 540-BBBW
Interface 4 x 1GbE BASE-T ports
Data Rate 1 Gbps (1GbE ports)
Form Factor rNDC

Product Features

  • ● Four 1GbE BASE-T ports for high-performance connectivity
  • ● Low-latency design for efficient data transfer
  • ● Energy-efficient operation with reduced power consumption
  • ● Advanced virtualization features for improved network efficiency
  • ● High-performance Broadcom 5720 chipset

Product Applications

  • ● Small to medium-sized businesses requiring reliable network connectivity
  • ● Data centers with 1GbE network infrastructure
  • ● Virtualized environments with demanding network requirements

Supported Options

Table 2 shows the supported options of DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T.

Option Name Model
CAT5e Ethernet Cable CAT5E-CABLE
CAT6 Ethernet Cable CAT6-CABLE
CAT6a Ethernet Cable CAT6A-CABLE

Compare to Similar Items

Table 3 shows the comparison to similar items of DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T.

Model Differences
DL:540-BBCB-Intel-i350-4-GbE-BASE-T 4 x 1GbE BASE-T ports, Intel i350 chipset
DL:540-BBUZ-Intel-X550-2-10GbE-BASE-T-i350-2-GbE-BASE-T 2 x 10GbE BASE-T ports, 2 x 1GbE BASE-T ports, Intel X550 chipset
DL:540-BBUL-Broadcom-57412-2-10GbE-SFP-5720-2-GbE 2 x 10GbE SFP+ ports, 2 x 1GbE BASE-T ports, Broadcom 57412 chipset

Get more information

Do you have any question about the DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T Specifications
Model DL:540-BBBW-Broadcom-5720-4-GbE-BASE-T
SKU 540-BBBW
Brand Broadcom
Ports 4x 1GbE BASE-T
Interface PCIe 2.0 x4
Network Standard 1GbE
Controller Broadcom 5720
Form Factor Low profile
Virtualization Yes (VMware)
OS Support Windows, Linux, VMware
RoHS Yes
MTBF 6 Million Hours
Power Consumption 5.1W (typical)
Cabling Type Category 5e or Category 6
Jumbo Frames Yes (up to 9KB)
Link Aggregation Yes (IEEE 802.3ad)
Flow Control Yes
Interrupt Coalescing Yes
Pre-boot Execution Environment (PXE) Yes
Receive Side Scaling (RSS) Yes
Wake-on-LAN (WoL) Yes
Advanced Packet Filtering Yes
IPv6 Offloading Yes
