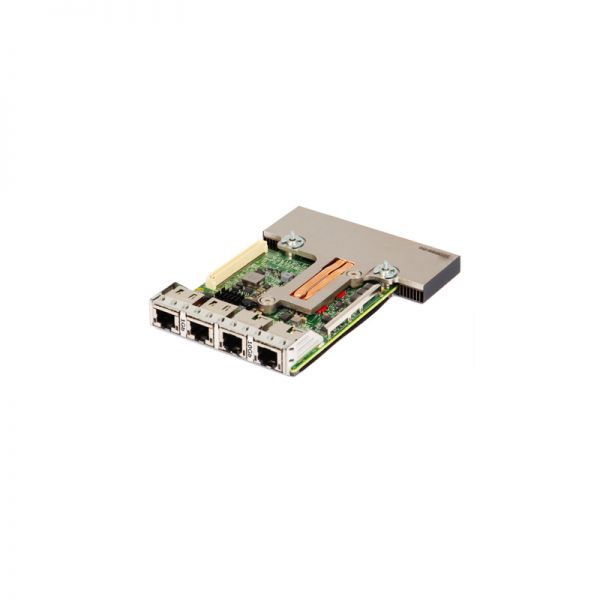

Dell Network Cards, 540-BBUK Broadcom 57416 2*10GbE BASE-T & 5720 2*GbE BASE-T

Model:540-BBUK - Dell Network Cards
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Dell Network Cards 540-BBUK, incorporating Broadcom 57416 and 5720 chipsets, are designed to deliver robust network performance for enterprise environments. With dual ports supporting 10GbE and 1GbE BASE-T connections, respectively, these cards ensure high-speed data transfer and efficient network connectivity. Ideal for server applications, these network cards are also adaptable for various business needs.

Quick Spec

Brand Dell
Model 540-BBUK
Chipset Broadcom 57416 & 5720
Ports 2 x 10GbE BASE-T & 2 x 1GbE BASE-T
Form Factor rNDC

Product Features

  • Supports dual 10GbE and 1GbE connections for flexible network integration.
  • Based on Broadcom's reliable 57416 and 5720 chipsets.
  • Enhanced network performance with low-latency and high-throughput capabilities.
  • High compatibility with Dell servers and other enterprise networking equipment.
  • Robust design ensuring long-term stability and reduced downtime.

Product Applications

  • Optimal for high-speed data centers requiring reliable server connectivity.
  • Ideal for enterprise-level network infrastructure upgrades and expansions.
  • Suitable for server farms that need flexible and scalable network solutions.

Supported Options

Transceiver Module Dell SFP-10G-SR
Cabling Dell DAC-SFP-1M
Port Adapter Dell NDC-1

Compare to Similar Items

Model Differences
Dell 540-BBUS Supports only 1GbE
Dell 540-BBUQ 10GbE ports with SFP+ connectors
Dell 540-BBUR Single 10GbE port, no 1GbE support

Get more information

Contact us through Live Chat or email at Contact@huatenmax.com for more details about the Dell Network Cards 540-BBUK and its pricing. Check Dell Network Cards price and Dell Network Cards datasheet; buy Dell Network Cards 540-BBUK with the best price and fast shipping. Free Live Chat support is available.

Specification

Dell Network Cards, 540-BBUK Broadcom 57416 2*10GbE BASE-T & 5720 2*GbE BASE-T Specifications

Brand Dell
Model Number 540-BBUK
Manufacturer Broadcom
Port Configuration Dual Ports 10GbE BASE-T & Dual Ports 1GbE BASE-T
Port Type Ethernet BASE-T
SKU 540-BBUK
Interface rNDC
Controller Broadcom 57416 and Broadcom 5720
Network Bandwidth 10GbE, 1GbE
Data Speed 10 Gbps, 1 Gbps
Form Factor Integrated Network Daughter Card (rNDC)
Compliance IEEE 802.3ae, IEEE 802.3
Jumbo Frames Supported
Virtualization Support Yes
iSCSI Offload Yes, supported
CPU Offload Yes
Wake-on-LAN Supported
OS Compatibility Windows, Linux
Management Management via Dell OpenManage
Security Features IEEE 802.1X
RoHS Compliant Yes
Warranty 3 Years
