Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision HiLook Products

  • NVR-108MH-D/8P
  • NVR-108MH-D/8P

NVR-108MH-D/8P

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

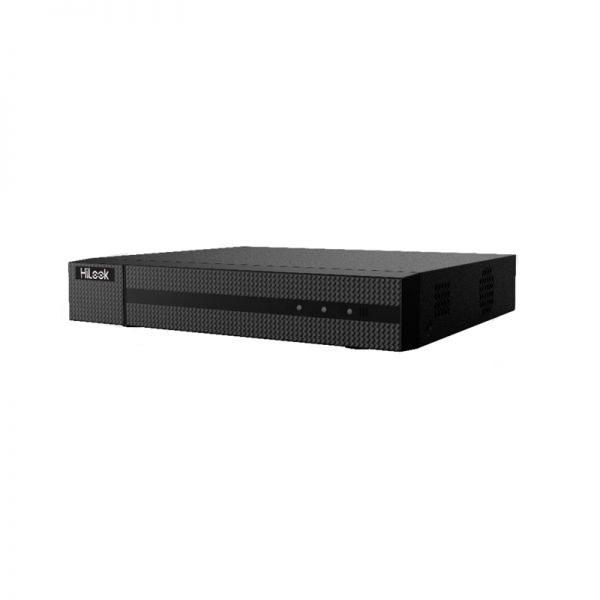

The Hikvision NVR-108MH-D/8P is an advanced 8-channel Mini 1U 8 PoE NVR designed to deliver efficient and reliable video recording solutions. With its robust design and high-performance capabilities, it is ideal for small to medium-sized surveillance systems. This NVR supports Power over Ethernet (PoE), making it easy to connect and power your IP cameras.

Quick Spec

Brand Hikvision
Model NVR-108MH-D/8P
Channels 8
Form Factor Mini 1U
PoE Ports 8

Product Features

  • ● Supports up to 8 IP camera inputs
  • ● 8 independent PoE network interfaces
  • ● H.264+ and H.264 compression technology
  • ● HDMI and VGA output at up to 1080p resolution
  • ● Plug-and-play with up to 8 independent PoE network interfaces

Product Applications

  • ● Small business surveillance systems
  • ● Residential security setups
  • ● Remote monitoring sites

Supported Options

Accessory Model
HDD WD Purple 4TB
IP Camera Hikvision DS-2CD2143G0-IS
Power Adapter Hikvision 12V3A

Compare to Similar Items

Model Difference
Hikvision NVR-104MH-C/4P 4 channels, 4 PoE ports
Hikvision NVR-116MH-D/16P 16 channels, 16 PoE ports
Hikvision DS-7608NI-I2/8P 8 channels, 8 PoE ports, more advanced features

Get more information

For further details about the Hikvision NVR-108MH-D/8P, please contact us through Live Chat or at Contact@huatenmax.com. Check Hikvision NVR-108MH-D/8P price, and NVR-108MH-D/8P datasheet, buy Hikvision NVR-108MH-D series with the best price and fast shipping. Free Live Chat is supported.

Specification

NVR-108MH-D/8P Specifications

Brand Hikvision
Model NVR-108MH-D/8P
Product Type Mini 1U 8 PoE NVR
Channel Number 8-ch
Compression Technology H.265+/H.265/H.264+/H.264
Max Incoming Bandwidth 80 Mbps
Max Outgoing Bandwidth 80 Mbps
Decoding Capability 4-ch@1080p
Video Output HDMI/VGA
USB Interface Front: 1 �� USB 2.0; Rear: 1 �� USB 2.0
PoE Interface 8 independent 100 Mbps PoE network interfaces
PoE Standard IEEE 802.3af/at
Hard Disk Drive SATA, up to 6 TB capacity
Network Interface 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power Supply DC 48 V/1.84 A
Working Temperature -10��C to +55��C (+14��F to +131��F)
Working Humidity 10% to 90%
Dimensions (W x D x H) 315 �� 240 �� 53 mm
NVR Type Standalone
Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP
