Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision HiLook Products

  • NVR-104H-D/4P
  • NVR-104H-D/4P

NVR-104H-D/4P

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

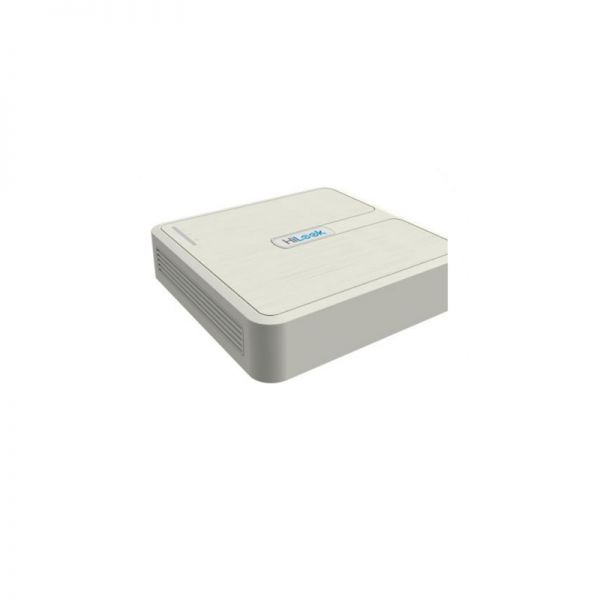

The Hikvision NVR-104H-D/4P is a compact 4-channel Mini 1U NVR featuring 4 PoE ports, ideal for small-scale surveillance setups. This Network Video Recorder is designed to provide efficient and effective security solutions with its reliable performance and easy setup, making it a perfect choice for homes, small offices, and retail environments.

Quick Spec

Channels 4
Form Factor 1U Mini
PoE Ports 4
Maximum Resolution Up to 6MP
Storage Capacity 1 SATA HDD up to 6TB

Product Features

  • ● Support for 4 IP cameras with PoE functionality
  • ● H.265+/H.265/H.264+/H.264 video compression
  • ● Up to 6MP resolution recording
  • ● Compact 1U Mini case design
  • ● Supports mobile monitoring via Hik-Connect application

Product Applications

  • ● Residential surveillance for home safety
  • ● Small office security monitoring
  • ● Retail shops for real-time and recorded footage of customer activities

Supported Options

Model Description
DS-2CD2145FWD-I Hikvision 4MP IR Fixed Dome Network Camera
DS-1280ZJ-DM18 Hikvision Junction Box
DS-1200KI Hikvision Network Keyboard

Compare to Similar Items

Model Differences
NVR-108H-D(8P) 8 PoE ports, supports 8 channels
NVR-104MH-D Non-PoE version, similar capacity
NVR-204H-D/4P Supports up to 4 SATA HDDs

Get more information

For further information about the Hikvision NVR-104H-D/4P, including pricing and datasheets, please contact us via Live Chat or at Contact@huatenmax.com. Check Hikvision NVR-104H-D/4P price and NVR-104H-D/4P datasheet. Buy Hikvision NVR-104H-D/4P with the best price and fast shipping. Free Live Chat are supported.

Specification

NVR-104H-D/4P Specifications

Brand Hikvision
Model NVR-104H-D/4P
Video/Audio Input 4 channels
PoE Ports 4 independent PoE network interfaces
Operating System Embedded Linux
Video Compression H.264
HDMI Output 1 channel, 1920��1080 resolution
Network Interface 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
USB Interface 2 �� USB 2.0
Hard Disk Drive 1 SATA interface for 1 HDD
HDD Capacity Up to 4 TB capacity
Record Rate Up to 6 Mbps per channel
Playback Simultaneous 4-ch
Protocols TCP/IP, DHCP, Hik Cloud P2P, NTP, SADP, SMTP, SNMP, UPnP?, NFS, iSCSI
Power Supply 48V DC
Power Consumption �� 30 W (without HDD)
Operating Temperature -10 ��C to 55 ��C (14 ��F to 131 ��F)
Operating Humidity 10% to 90% humidity
Chassis Mini 1U
Dimensions 260 �� 204 �� 45 mm (10.2" �� 8" �� 1.8")
