Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision Turbo HD Cameras

  • DS-2CE16D0T-IR(C)
  • DS-2CE16D0T-IR(C)

DS-2CE16D0T-IR(C)

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

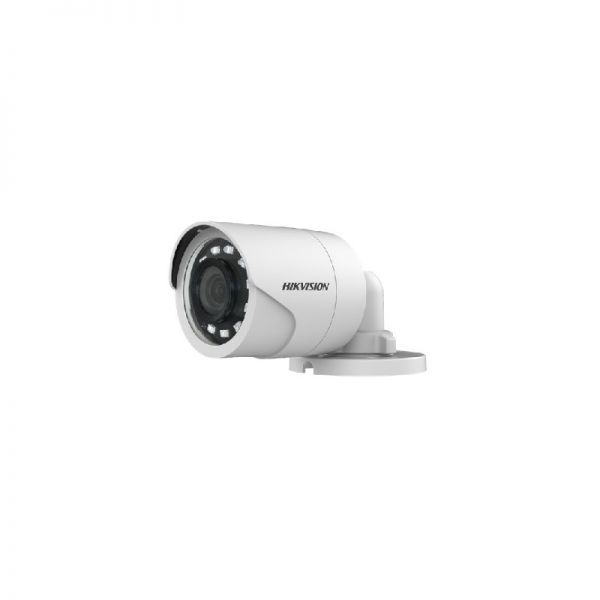

The Hikvision DS-2CE16D0T-IR(C) is a high-quality 2 MP Fixed Mini Bullet Camera designed for superior surveillance in various environments. Its compact design and advanced features make it an ideal choice for both indoor and outdoor security applications, providing clear and reliable video footage.

Quick Spec

Resolution 2 MP (1920 x 1080)
Lens Type 3.6mm fixed lens
Infrared Range Up to 20m
Video Frame Rate 1080p@25fps/30fps
Weatherproof Rating IP66

Product Features

  • ● High Definition Video Output
  • ● Smart IR for better visibility
  • ● Efficient H.264+ video compression
  • ● 24/7 Full Color Imaging
  • ● True day/night functionality with ICR

Product Applications

  • ● Home security monitoring for enhanced protection
  • ● Retail store surveillance to prevent theft and monitor activities
  • ● Parking lot monitoring for improved safety and vehicle tracking

Supported Options

Mounting Bracket DS-1273ZJ-130-TRL
Junction Box DS-1280ZJ-XS
POE Injector DS-3E1309P-EI

Compare to Similar Items

Model Differences
Hikvision DS-2CE16D0T-IT3F Enhanced IR range up to 40m
Hikvision DS-2CE16D1T-IT Improved frame rate at 25fps/30fps/50fps/60fps
Hikvision DS-2CE16D7T-IT5 Advanced 120dB true WDR technology

Get more information

Check Hikvision DS-2CE16D0T-IR(C) price and DS-2CE16D0T-IR(C) datasheet, buy Hikvision DS-2CE16D0T-IR(C) Series with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or email us at Contact@huatenmax.com.

Specification

DS-2CE16D0T-IR(C) Specifications

Camera Type 2 MP Fixed Mini Bullet Camera
Image Sensor 2 MP CMOS Image Sensor
Effective Pixels 1920 (H) ?? 1080 (V)
TV System PAL/NTSC
Signal System AHD, TVI, CVI, CVBS
Lens 3.6 mm (2.8 mm, 6 mm optional)
Lens Mount M12
Day & Night IR Cut Filter
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR Distance Up to 20 m
Video Frame Rate PAL: 1080p@25fps, NTSC: 1080p@30fps
Synchronization Internal Synchronization
Video Output 1 Analog HD output
Shutter Time 1/25 (1/30) s to 1/50,000 s
Power Supply 12 VDC ?? 15%
Power Consumption Max. 4 W
Operating Temperature -40??C to 60??C (-40??F to 140??F)
Humidity 90% or less (non-condensing)
IP Rating IP66
Dimensions 70 mm ?? 149.5 mm ?? 66 mm
