Position：Home / Products / Video Surveillance / Hikvision Video Surveillance / Hikvision Turbo HD Cameras

  • DS-2CE56D0T-IRPF(C)
  • DS-2CE56D0T-IRPF(C)

DS-2CE56D0T-IRPF(C)

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

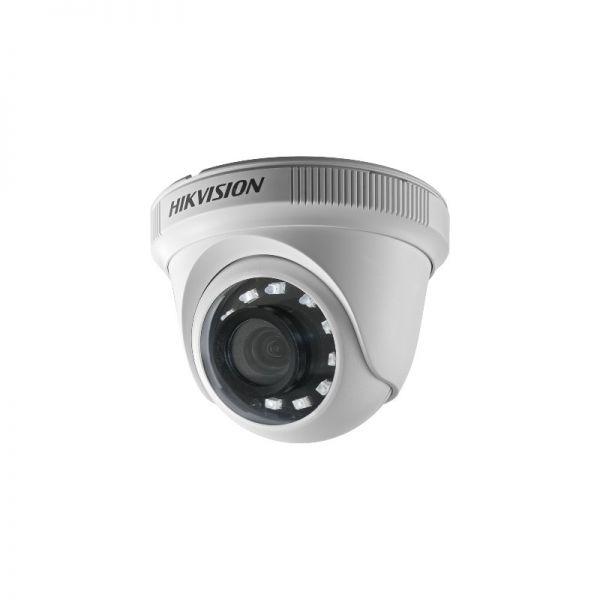

The Hikvision DS-2CE56D0T-IRPF(C) is a premium 2MP Indoor Fixed Turret Camera designed to provide high-definition surveillance for a variety of indoor applications. This versatile camera features cutting-edge technology to ensure clear and detailed video capture, even in low-light conditions, making it an ideal choice for enhancing your security system.

Quick Spec

Resolution2 Megapixels
Lens2.8mm fixed lens
IR RangeUp to 20 meters
Image Sensor1/2.7" Progressive Scan CMOS
Power Supply12 VDC 15%

Product Features

  • ● High Definition 1080P Video Output
  • ● 24/7 Surveillance with EXIR Technology
  • ● Smart IR for Optimized Night Vision
  • ● Weather Resistant Housing suitable for indoor usage
  • ● OSD Menu with Adjustable Settings

Product Applications

  • ● Retail Stores: Monitor cashier areas and store entrances
  • ● Office Buildings: Secure hallways and entry points
  • ● Schools: Enhance security in classrooms and common areas

Supported Options

Mounting BracketDS-1273ZJ-130
Junction BoxDS-1280ZJ-S
Power AdapterDS-1A12

Compare to Similar Items

ModelDifferences
DS-2CE56D1T-IRMMHigher Resolution of 3MP, Miniature Design
DS-2CE56H0T-IT3Higher Resolution of 5MP, Enhanced Night Vision Range
DS-2CE56D0T-VFIR3FVarifocal Lens with Adjustable 2.8-12mm

Get more information

Check 'Hikvision DS-2CE56D0T-IRPF(C)' price and 'DS-2CE56D0T-IRPF(C) datasheet', buy 'Hikvision DS-2CE56D0T-IRPF(C) Camera' with best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, please contact us through Live Chat or email us at Contact@huatenmax.com.

Specification

DS-2CE56D0T-IRPF(C) Specifications

Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920 x 1080
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens 2.8mm, 3.6mm, 6mm
Lens Mount M12
Day & Night ICR
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
Synchronization Internal Synchronization
Video Signal-to-Noise Ratio More than 62 dB
Operating Conditions -40??C to 60??C (-40??F to 140??F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC ??15%
Power Consumption Max. 4 W
IR Range Up to 20m
Ingress Protection IP66
Communication Up the coax, Protocol: HIKVISION-C (Coaxitron)
Dimension ??89.6 ?? 59.1 mm (??3.53?? ?? 2.33??)
Smart Features Smart IR
Color White
