JC104B

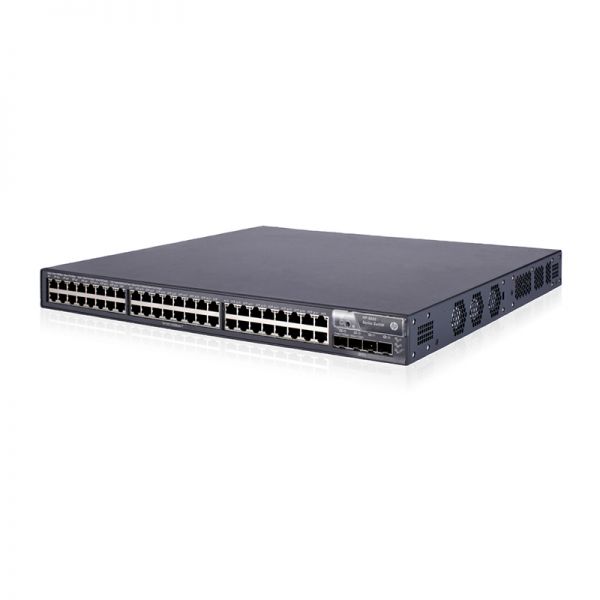

Model:JC104B - HPE FlexFabric 5800 Switches
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The HPE FlexFabric 5800 48G PoE+ 1-slot Switch, model JC104B, is a cutting-edge solution designed to meet the demands of high-speed, secure, and scalable network infrastructure. This switch is ideal for enterprises and data centers looking to enhance their network performance and reliability. With advanced features and robust security, the HPE FlexFabric 5800 switch ensures seamless connectivity and efficient network management.

Quick Spec

Model Number JC104B
Type FlexFabric Switch
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
PoE Power 740 W
Throughput up to 130.9 Mpps

Product Features

  • High-density PoE+ support for up to 48 ports
  • High-performance data throughput at up to 130.9 million packets per second (Mpps)
  • Flexible Gigabit Ethernet networking with 4 fixed Gigabit Ethernet SFP ports
  • Scalability with a single expansion slot
  • Robust security features including ACLs, firewall, and ID management

Product Applications

The HPE FlexFabric 5800 48G PoE+ switch, JC104B, is exceptionally versatile and can be used in various application scenarios, including:

  • High-density PoE deployments in enterprise networks
  • Aggregation layer in data centers
  • Network backbone for SMBs requiring reliable and scalable connectivity

Supported Options

Expansion Module JC091C
Rack Mount Kit JW098A
Power Supply JL085A

Compare to Similar Items

Model Differences
JC106B Higher throughput and additional expansion slots
JC101A Includes more SFP+ ports for 10 GbE
J9573A Non-PoE+ version with similar port density

Get more information

To learn more about the HPE FlexFabric 5800 48G PoE+ 1-slot Switch (JC104B) and discuss your specific requirements, please contact us through Live Chat or Contact@huatenmax.com. Our team is ready to assist you with additional product details, pricing, and any other queries you may have.

Specification

JC104B Specifications

Brand HPE
Product Name HPE FlexFabric 5800 48G PoE+ 1-slot Switch
Product Model JC104B
Switch Type Managed
Ports 48 x Gigabit Ethernet Network, PoE+
Expansion Slots 1 x Expansion Slot
PoE Budget 740 W
Switching Capacity 176 Gbps
Throughput up to 130.9 Mpps
Form Factor Rack-mountable 1U
Memory and Processor 1024 MB RAM, 512 MB flash; dual-core ARM Cortex-A9 @ 1016 MHz
Dimensions 44.25 x 66.04 x 4.39 cm
Power Supply Redundant power supply (optional)
Layer Supported 3
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)
Networking Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1X, IEEE 802.3at (PoE+)
Security Features Access Control Lists (ACL), Secure Shell (SSH), RADIUS, TACACS+, SNMPv3
Management Web-based GUI, Command Line Interface (CLI), SNMP
Warranty Limited Lifetime Warranty
