JC103B

Model:JC103B - HPE FlexFabric 5800 Switches
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Overview

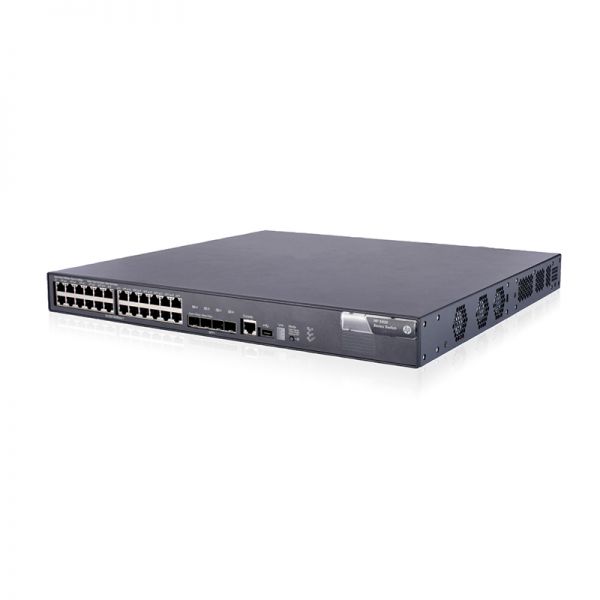

The HPE FlexFabric 5820X 24XG SFP+ Switch, model JC103B, is a cutting-edge networking solution designed for enterprises demanding high performance, scalability, and flexibility. This switch provides unmatched security, efficiency, and reliability for data centers, with extensive features supporting a wide range of applications. Whether for high-speed server connectivity, aggregation, or core network requirements, the JC103B stands out as a premium choice.

Quick Spec

BrandHPE
ModelJC103B
TypeFlexFabric 5820X 24XG SFP+ Switch
Ports24 SFP+ Ports
PerformanceHigh performance with up to 48 Gbps per port

Product Features

  • High-density, advanced Layer 2/3/4 features supporting enterprise data center requirements.
  • Supports high-speed 10 GbE for server connectivity and network backbone requirements to increase data throughput and reduce latency.
  • Incorporates HPE IRF (Intelligent Resilient Framework) to simplify management and enhance network downtime protection.
  • Energy-efficient design for reduced operational cost and environmental impact.
  • Comprehensive security features, including ACLs, firewall, and IPsec VPNs for protecting sensitive data.

Product Applications

  • Data center core layers, offering high-speed networking and redundancy for critical systems.
  • High-performance computing (HPC) environments for research and scientific simulations requiring intensive data processing.
  • Cloud services infrastructure, providing scalable and efficient networking capabilities for virtualized resources.

Supported Options

Compatible TransceiversSFP+ Modules
Power Supply UnitAdditional PSU for Redundancy
Network Management SoftwareHPE IMC Smart Connect

Compare to Similar Items

ModelDifferences
HPE 5900AF-48XG-4QSFP+Higher port density with additional 4 QSFP+ ports
Cisco Catalyst 9500Different operating system, supports Cisco DNA
Juniper EX4600Different management features and software stack

Get more information

For further details on the HPE FlexFabric 5820X 24XG SFP+ Switch JC103B and to discover how it can meet your networking needs, please contact us through Live Chat or email at Contact@huatenmax.com. Our product specialists are ready to provide you with all the information you need, including pricing and availability.

Specification

JC103B Specifications

Brand HPE
Product Name FlexFabric 5820X 24XG SFP+ Switch
Product Model JC103B
Device Type Switch - 24 ports - Managed
Enclosure Type Rack-mountable 1U
Ports 24 x 10G SFP+
Performance 480 Gbps switching capacity
Throughput Up to 357.14 Mpps
MAC Address Table Size 32K entries
Jumbo Frame Support Yes
Routing Protocol Static IPv4/IPv6 routing, RIP, OSPF, BGP, IS-IS
Management SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP
Features VLAN support, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
Power Supply Two power supply units required (sold separately)
Dimensions (WxDxH) 17.32 x 16.54 x 1.72 in
Humidity Range Operating 10-90% (non-condensing)
Temperature Range Operating 32°F to 113°F (0°C to 45°C)
Networking Type Switch
Networking Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Warranty Limited lifetime warranty
