R8Q68A

Overview

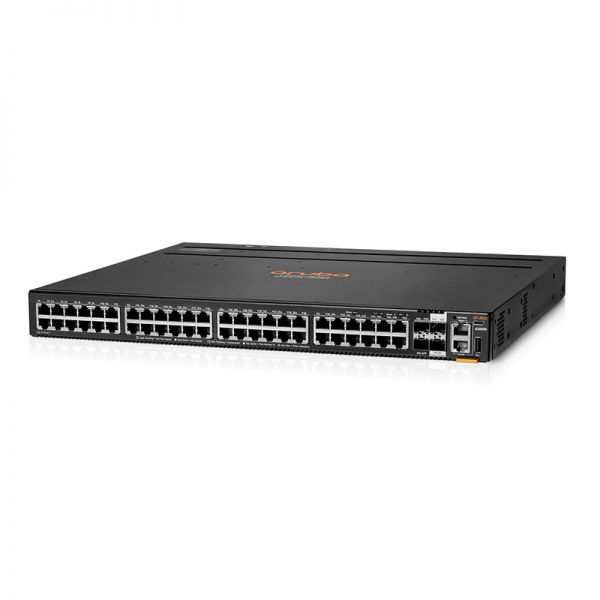

The Aruba R8Q68A is part of the Aruba Switches series, a lineup of high-performance network switches designed to meet the modern demands of enterprise networks. As a leading product in its series, the Aruba R8Q68A offers advanced features and capabilities to facilitate efficient network management and enhance overall performance.

Product Features

The Aruba R8Q68A is equipped with a 24G CL4 PoE 4SFP+ configuration, providing ample connectivity options for various network devices. It boasts a robust composition that enables reliable and secure data transmission, ensuring the integrity of your network infrastructure. The built-in advanced Layer 2 and Layer 3 features enhance network efficiency and allow for seamless integration with existing network environments.

Key features of the Aruba R8Q68A include:

  • ● High-speed connectivity with 24 Gigabit Ethernet ports
  • ● Power over Ethernet (PoE) capability to power compatible devices
  • ● Four SFP+ uplink ports for fast data transmission
  • ● Advanced Layer 2 and Layer 3 features for network optimization
  • ● Enhanced security features to protect against unauthorized access
  • ● Flexible management options for easy configuration and monitoring

Key Advantages

The Aruba R8Q68A offers several key advantages:

  • ● Efficient network performance and seamless integration with existing environments
  • ● Reliable and secure data transmission to protect your network from potential threats
  • ● Power over Ethernet capability to eliminate the need for additional power sources
  • ● Flexible management options for easy configuration and monitoring

Product Applications

The Aruba R8Q68A is a versatile switch suitable for a range of applications, including:

  • ● Enterprise networks
  • ● Data centers
  • ● Network infrastructure upgrades

Configuration and Management

Configuring and managing the Aruba R8Q68A is simple and straightforward. With its user-friendly interface and intuitive management tools, you can easily customize settings, monitor network performance, and troubleshoot issues as needed. The switch also supports various management protocols, allowing for seamless integration into your existing network management system.

Get more information

Do you have any questions about the Aruba 6200M 24G CL4 PoE 4SFP+ Switch price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

R8Q68A Specifications

Differentiator 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256) Supports PoE Standards IEEE 802.3af, 802.3at 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 2 field-replaceable, hot-swappable power supply slots, 1 power supply required (ordered separately) Supports PSU JL086A JL087A Switch has two fan tray slots; Switch includes one fan tray. Fan trays are field replaceable and hot- swappable.
Ports 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256) Supports PoE Standards IEEE 802.3af, 802.3at 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port
Memory and processor CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz Memory and Flash: 8 GB DDR4 16 GB eMMC
Latency

1 Gbps: 2.28 μSec

10 Gbps: 1.46 μSec

Throughput Up to 95.2 Mpps
Routing/switching capacity 128 Gbps
PoE capability 740W
Stacking capabilities 8 members
Power supply name

2 field-replaceable, hotswappable power supply slots

1 minimum power supply required (ordered separately)

Supported PSUs

JL086A

JL087A

Max PoE Power: 740W

Input voltage

100V-120V/200V-240V

Power consumption

76W at 230 VAC

Product dimensions (metric)

4.39 x 44.247 x 38.38 cm

Weight

6.01 kg
