R8S89A

Overview

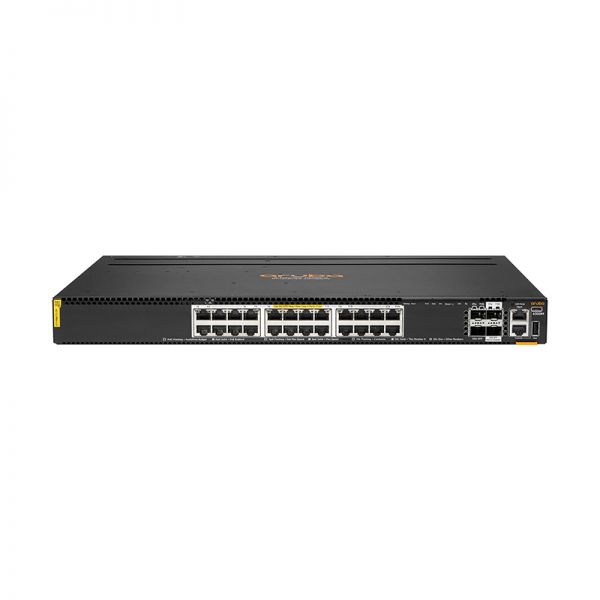

The Aruba R8S89A is a member of the Aruba Switches series, designed to provide high-performance networking solutions for businesses. This switch, also known as Aruba 6300M 24SR CL6 PoE 2p50G 2p25G Switch, is equipped with advanced features and functionalities to meet the demands of modern networks.

Product Features:

  • ● High-speed connectivity with 24 ports, including 2 50G ports and 2 25G ports
  • ● Power over Ethernet capability for simplified deployment and maintenance
  • ● Consolidated Layer 6 (CL6) for enhanced security and policy enforcement
  • ● Robust performance with high throughput and low latency
  • ● Advanced Quality of Service (QoS) for prioritizing critical applications
  • ● Flexible and scalable architecture for seamless network expansion

Key Advantages:

  • ● Improved network performance and reliability
  • ● Simplified network management and maintenance
  • ● Enhanced security features to protect sensitive data
  • ● Future-proof design for network scalability
  • Product Applications:

  • ● Enterprise networks with high traffic volumes and bandwidth requirements
  • ● Data centers requiring high-performance switching infrastructure
  • ● Campus networks with a need for secure and reliable connectivity

Configuration and Management:

The Aruba R8S89A can be easily configured and managed through a user-friendly graphical interface. Administrators can customize network settings, optimize performance, and monitor network performance in real-time. With comprehensive management capabilities, this switch ensures smooth network operations and seamless integration with existing infrastructure.

Get more information

Do you have any questions about the Aruba R8S89A price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

R8S89A Specifications

Power consumption With JL086A PSU:
Hibernation (0 rpm fan): 37W
Idle: 90W
100% Traffic Rate: 143W
With JL087A PSU:
Hibernation (0 rpm fan):41W
Idle: 90W
100% Traffic Rate: 140W
With JL670A PSU:
Hibernation (0 rpm fan): 35W
Idle: 101W
100% Traffic Rate: 152W
Input voltage JL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V
Ports

24-port Smart Rate 100M**/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port (MACSEC)
2x 10G/25G/50G* SFP ports
2x 10G/25G SFP ports (MACSEC)
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
**100M use on Smart Rate ports is limited to full‑duplex only. For 100M half‑duplex support, use 1G ports on other models.

Latency 1Gbps: 4.24μSec,
10Gbps: 1.50μSec,
25Gbps: 2.91μSec,
50Gbps1: 3.49μSec
Switching capacity 880 Gbps
Stacking capabilities Up to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches
Throughput 580 Mpps
Memory and processor

Quad Core Arm Cortex™ A72 @ 1.8GHz,
8 GB DDR4, 32 GB eMMC

16 MB Shared Packet Buffer Memory

Power supply name 2 field-replaceable, hot-swappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs
JL086A
JL087A
JL670A
JL758A
Max PoE Power: 2880W
PoE capability Max PoE Power: 2880W
Weight 6.71 kg (14.8 lbs)
Dimensions 4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
