Position：Home / Products / Switches / HPE Switches / HPE Aruba Networking Switches

  • JL667A
  • JL667A

JL667A

Quote | Help
Overview

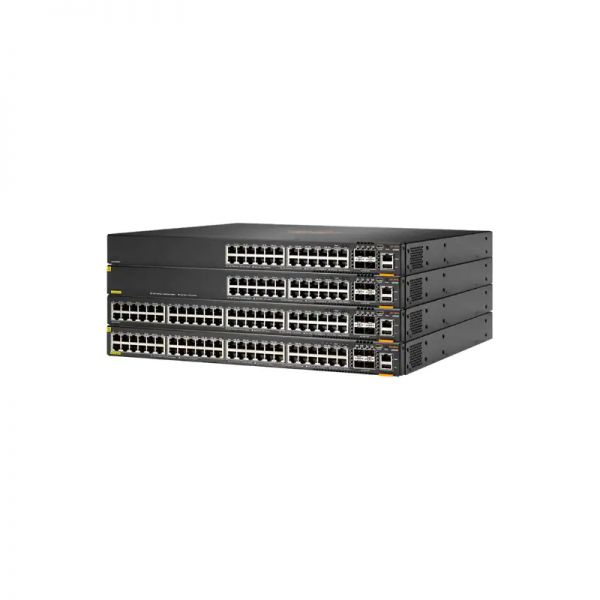

The Aruba 6300F JL667A is a modern, high-performance switch with 48 ports of 1GbE and 4 SFP56 ports. Perfect for medium to large enterprises, the JL667A delivers superb functionality, speed, and reliability.

Quick Spec

Table 1 shows the quick spec of the JL667A.

Product CodeJL667A
ManufacturerAruba
Ethernet Ports48-port 1GbE
SFP Ports4-port SFP56
Switch SeriesAruba 6300F

Product Features

  • ● High-performance switch with 48 1GbE ports and 4 SFP56 ports.
  • ● Part of the reliable Aruba 6300F series.
  • ● Supports Aruba's advanced security and network management tools.
  • ● Designed for efficient operation and energy savings.

Product Applications

  • ● Ideal for medium to large enterprise networks.
  • ● Great for high-speed data transfers and link aggregation.
  • ● Suitable for connecting various network devices, including servers, storage, and wireless APs.

Supported Options

Table 2 shows the supported options of the JL667A.

AccessoryModel
Aruba 1G SFP ModulesVarious Models
Aruba 10G SFP+ ModulesVarious Models
Aruba 40G QSFP+ ModulesVarious Models

Compare to Similar Items

Table 3 shows the comparison to similar items of the JL667A.

ModelDifference
JL665A48-port 1GbE Class 4 PoE
JL666A24-port 1GbE Class 4 PoE
JL668A24-port 1GbE

Get more information

Do you have any question about the JL667A price?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JL667A Specifications
Description

48x ports 10/100/1000BaseT Ports

4x 1G/10G/25G/50G1 SFP ports

1x USB‑C Console Port

1x OOBM port

1x USB Type A Host port
Power supplies

Internal (fixed) power supply (200W)
Fans Fixed fans
Dimensions

(H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm

(1.73" x 17.4" x 12.9")
Configuration weight 4.46 kg (9.83 lb)
CPU Quad Core Arm Cortex A72 @ 1.8GHz
Memory and flash

8 GB DDR4

32 GB eMMC
Packet buffer 8 MB
Switching capacity 496 Gbps
Throughput capacity 369 Mpps
Operating temperature 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate ‑1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft Can support excursion to 131°F (55°C) for short periods1 of time.
Operating relative humidity 5% to 95% @ 104°F (40°C) non‑condensing
Frequency 50Hz/60Hz
AC voltage Fixed PSU: 100V‑120V/200V‑240V
Current (for voltages listed above) Fixed PSU: 2.5A/1.4A
