Overview

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.


Quick Specs

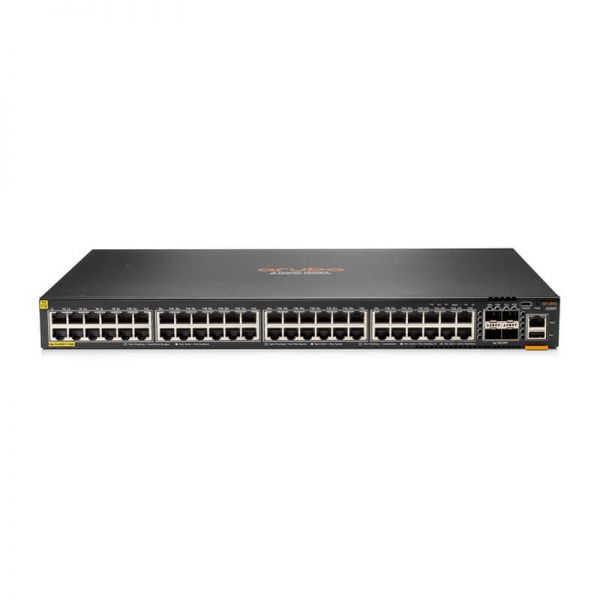

Figure 1 shows the appearance of JL727A.
JL727A

Table 1 shows the Quick Specs.

Product Code

JL727A

Ports

48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports

Memory and processor

Quad Core ARM Cortex A72 @ 1.8 GHz

Throughput

Up to 130.9 Mpps

Routing/switching capacity

176 Gbps


Product Details

Figure 2 shows the front panel of JL727A.
JL727A front

Features

  • ● Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and and common protocols such as static and Access OSPF routing
  • ● Scalability with 8 member switch VSF stacking
  • ● Convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
  • ● Intelligent monitoring, visibility, and troubleshooting with Aruba Network Analytics Engine
  • ● Simple, one touch deployment with the Aruba CX Mobile App
  • ● Automated configuration and verification with Aruba NetEdit
  • ● Secure and simple access for users and IoT with Aruba Dynamic Segmentation


Compare to Similar Items

Table 2 shows the comparison of JL727A.

Module

JL724A

JL727A

Ports

24x 10/100/1000BASE-T ports 4x 1/10G SFP ports

48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports

Memory and processor

Quad Core ARM Cortex A72 @ 1.8 GHz

Quad Core ARM Cortex A72 @ 1.8 GHz

Throughput

Up to 95.2 Mpps

Up to 130.9 Mpps


Get More Information

Do you have any question about the JL727A?

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

JL727A specification

Ports

48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports

Memory and processor

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Latency

1 Gbps: 2.28 ?Sec 10 Gbps: 1.46 ?Sec

Throughput

Up to 130.9 Mpps

Routing/switching capacity

176 Gbps

PoE capability

370W

Stacking capabilities

8 members

Input voltage

100V-120V/200V-240V

Power Consumption

76W at 230 VAC

Product Dimensions (imperial)

1.73 x 17.4 x 12.9 in
