Position：Home / Products / Switches / HPE Switches / HPE Aruba Networking Switches

  • JL664A
  • JL664A

JL664A

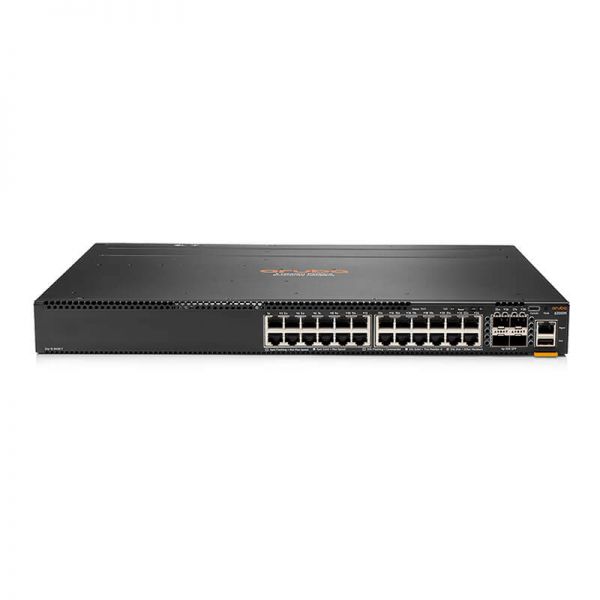

Model:JL664A - Aruba 6300M Series Switch
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The ARUBA JL664A is a top-tier network switch, perfect for businesses seeking reliable connectivity solutions. As a part of the Aruba 6300M series, this 24-port 1GbE and 4-port SFP56 switch offers high performance and scalability. Ideal for engineers and procurement specialists, it is built for robust enterprise environments and data centers.


Aruba JL664A Product Highlights

  • 24 x 1GbE ports
  • 4 x SFP56 ports
  • High performance
  • Scalability
  • Enterprise-grade security
  • Energy-efficient
  • Advanced management
  • Modular design

Product Features Comparison

Feature Aruba JL664A Cisco C9200-24P Juniper EX3400-24T HPE 1950-24G-2SFP+ Dell N1524 Brocade ICX7250-24 Netgear M4300-28G
Ports 24 x 1GbE, 4 x SFP56 24 x 1GbE, 4 x SFP 24 x 1GbE, 2 x SFP+ 24 x 1GbE, 2 x SFP+ 24 x 1GbE, 2 x SFP+ 24 x 1GbE, 4 x SFP+ 28 x 1GbE, 2 x SFP+
Performance High Moderate Moderate Moderate Moderate High High
Security High High High Moderate Moderate High High
Power Efficiency High Moderate Moderate Moderate Moderate High High
Management Advanced Advanced Advanced Moderate Moderate Advanced Advanced
Modularity High Moderate Moderate Moderate Moderate High High

Aruba JL664A Product Application Scenarios

  • Enterprise network core
  • Data center connectivity
  • High-performance computing clusters

Optional Add-ons

Model Description
JL072A Aruba 6300M 24-port 1GbE Module
JL659A Aruba 6000W Power Supply Unit
JL087A Aruba 4-port 10GbE SFP+ Module

Get More Information

Discover unbeatable prices and fast shipping for the ARUBA JL664A. Access the detailed Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at Contact@huatenmax.com.

Specification

JL664A Specifications

Product Brand ARUBA
Product Name ARUBA 6300M 24-port 1GbE and 4-port SFP56 Switch
Model Number JL664A
Ports 24 x 1GbE, 4 x SFP56
Switching Capacity Up to 880 Gbps
Forwarding Rate Up to 654 Mpps
Latency 1.5 µs
Routing Table Size Up to 16,000 routes
VLANs Up to 4094 VLANs
MAC Address Table Up to 32,000 entries
MTBF 1,232,000 hours
Power Supply Internal, Hot-swappable
Power Consumption Max 170W
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 95% (non-condensing)
Dimensions 4.4 x 44 x 48 cm
Rack Mountable Yes
Management Web GUI, CLI, SNMP, REST API
Security Access Control Lists (ACLs), Port Security, 802.1X
Warranty Limited Lifetime Warranty
