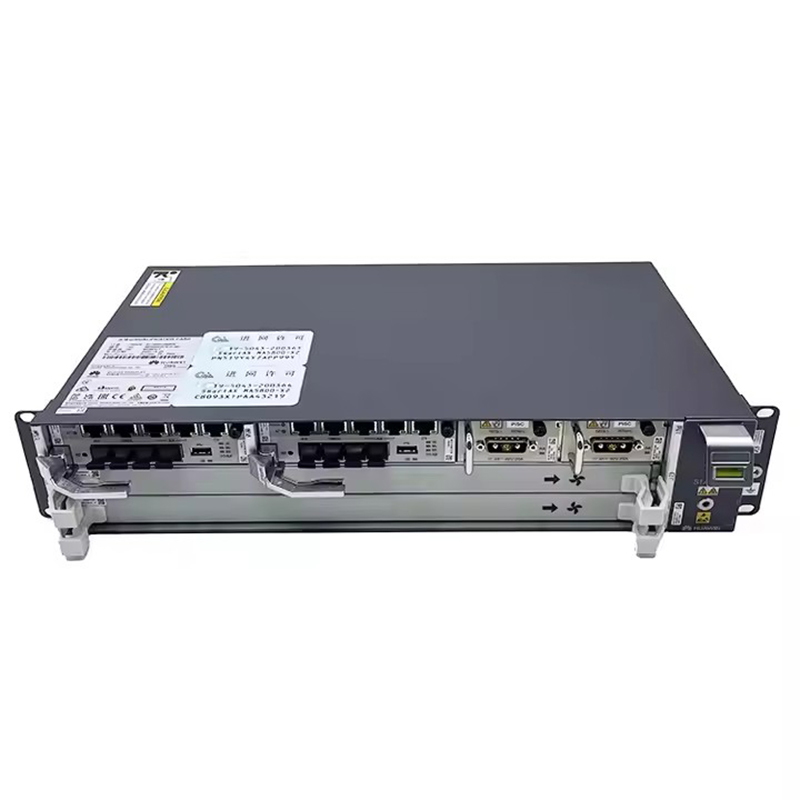

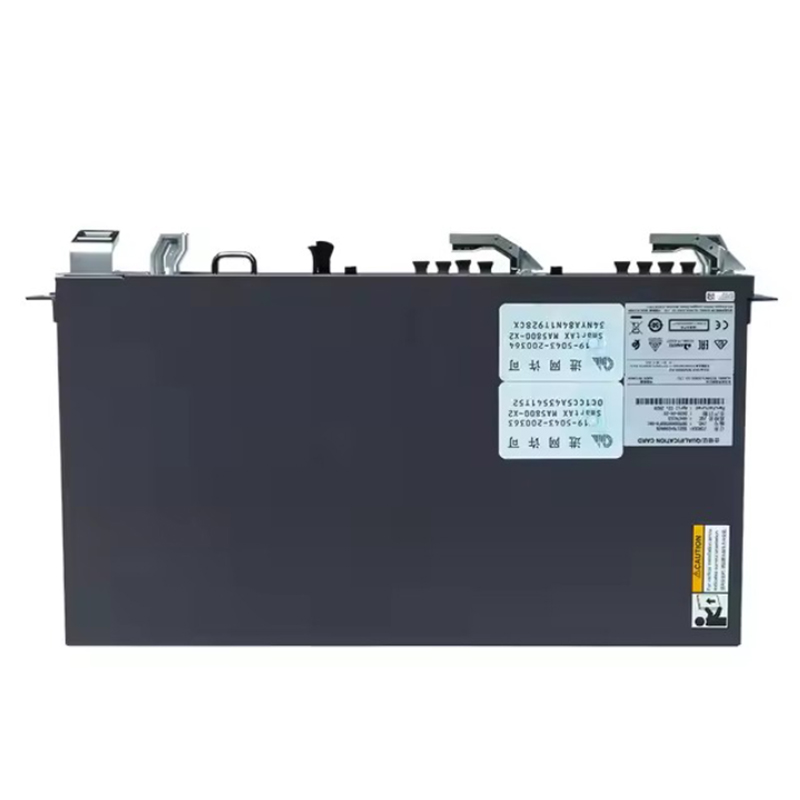

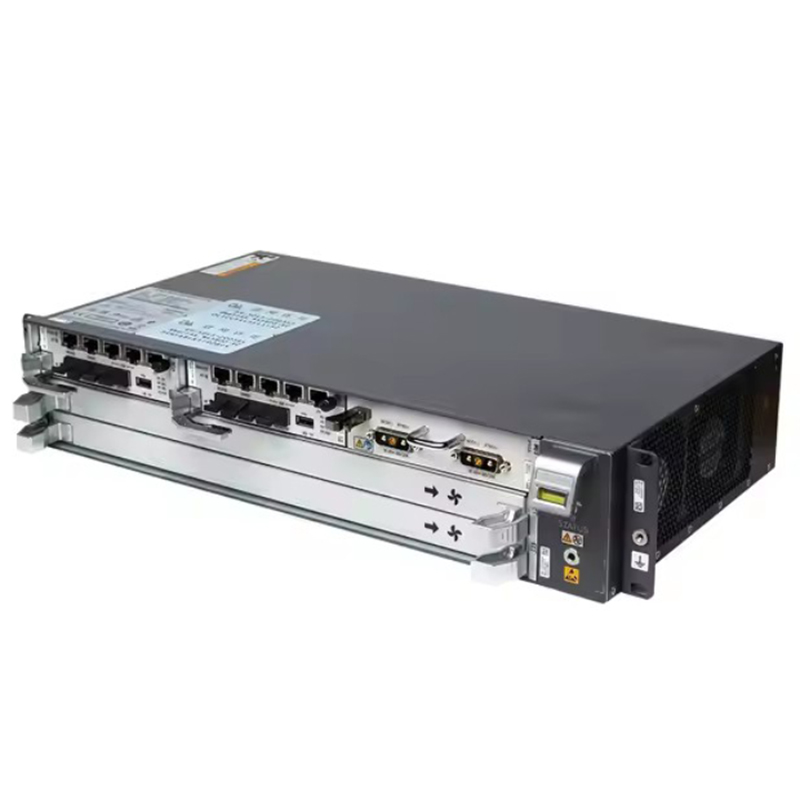

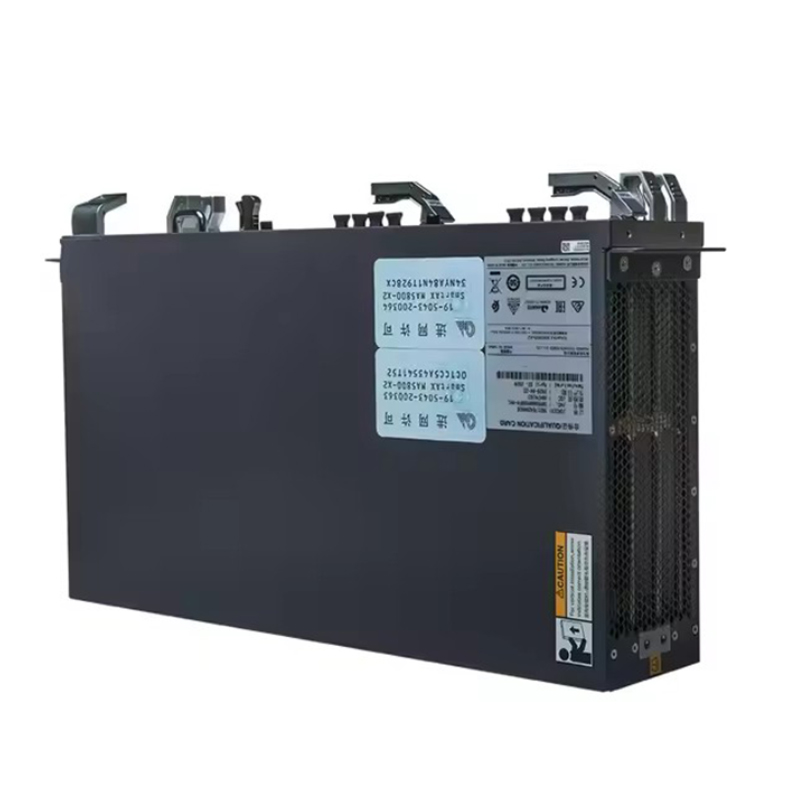

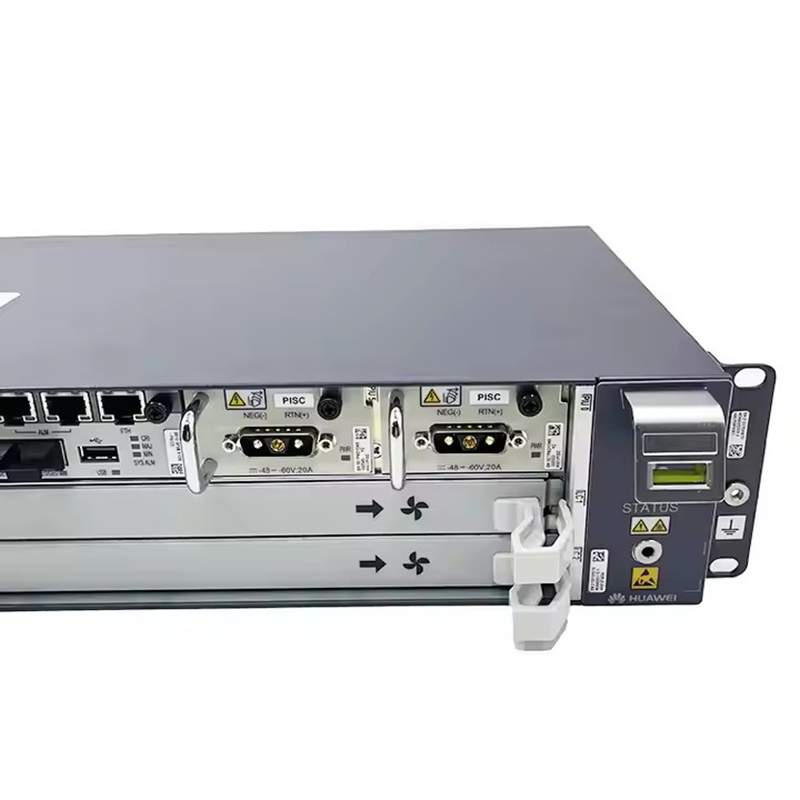

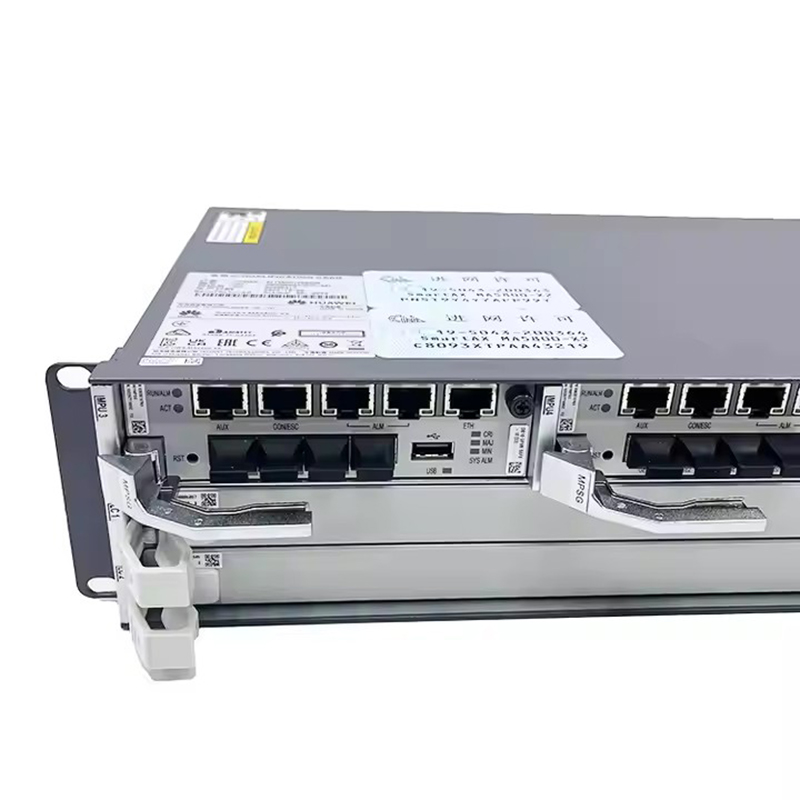

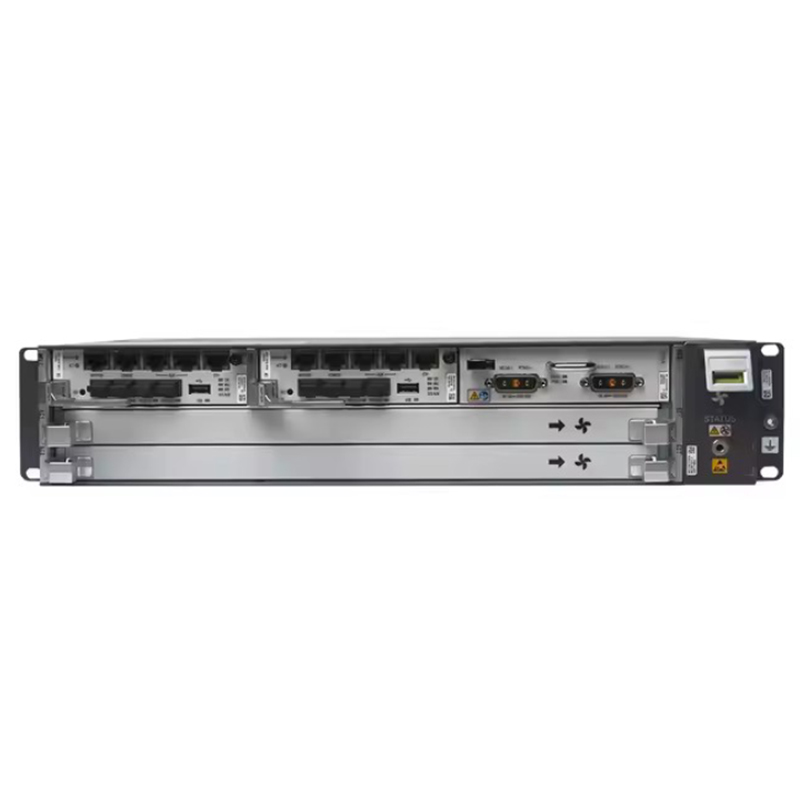

The MA5800-X2 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring. The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
Quick Spec
Table 1 shows the quick spec.
|
Model
|
MA5800-X2
|
|
Supported Cabinets
|
N63E-22
|
|
Board Configuration
|
Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
|
|
Dimensions
(W x D x H) |
2U high and 19 inches wide
Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm
Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm
Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm
|
|
Maximum Input Current
|
DC power supply: 20A
AC power supply: 8A
|
|
Power Supply Modes
|
DC power support (dual for backup)
AC power supply + battery for backup
|
|
Working Voltage Range
|
DC power supply: -38.4V to -72V
AC power supply: 100V to 240V
|
|
Rated voltage
|
DC power supply: -48V/-60V
AC power supply: 110V/220V
|
|
Switching Capacity of the Control Board (load sharing mode)
|
480 Gbit/s
|
|
Maximum Bandwidth per Service Slot (load sharing mode)
|
80 Gbit/s
|
|
System Layer 2 Packet Forwarding Rate (load sharing mode)
|
714 Mpps
|
|
GPON Ports/ XG(S)-PON Ports
|
32
|
|
GE/FE Ports
|
96
|
|
10 GE Ports
|
16
|
Product Details
Huawei SmartAX EA5800 provide these highlights:
- Distributed Architecture: High Performing and Non-blocking
- The EA5800 distributes service processing on the control board to every service board, improving system switching capacity and performance. Each slot can support a throughput of up to 100 Gbit/s, ensuring smooth services without interruption. The EA5800 supports distributed caching for channel zapping and fast starting of HD videos.
- Software Hitless Upgrade: Upgrade Anytime
- In the distributed architecture, control and forwarding are isolated, ensuring that services are not interrupted during device upgrades. This also reduces user complaints. Devices can be upgraded at daytime.
- High Reliability
- The EA5800 supports multiple protection mechanisms.
- Type B/type C dual-homing implements remote disaster recovery.
- 2 control boards and 2 power boards for redundancy.
- Dual-uplink protection.
- Integrated Multiple Access Technologies
- The EA5800 supports multiple access technologies, such as GPON, XG-PON, XGS-PON and P2P. Thus it is possible to carry multiple services on one optical network and save network construction costs.
Support Boards
Table 2 shows the recommended boards of this model.
|
Category
|
Model
|
Description
|
|
Control Boards
|
H902MPLAE
|
Huawei SmartAX MA5800 Main Processing Board
|
|
H901MPSCE
|
Huawei SmartAX MA5800 Main Processing Board
|
|
Universal Interface Boards
|
H901CIUA
|
Huawei SmartAX MA5800 Combo Interface Transfer Board
|
|
Service Boards
|
H901XGHDE
|
Huawei SmartAX MA5800 8-port Advanced XG-PON OLT Interface Board
|
|
H901OGHK
|
Huawei SmartAX MA5800 48-port Advanced GE/FE Optical Interface Board
|
|
H901OXHD
|
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board
|
|
H902OXHD
|
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board
|
|
H901GPSFE
|
Huawei SmartAX MA5800 16-port GPON OLT Interface Board
|
|
H901OXEG
|
Huawei SmartAX MA5800 24 port Aggregationed 10GE/GE Optical Interface Board
|
|
H901TWEDE
|
Huawei SmartAX MA5800 8-port Enhanced XGS-PON OLT Interface Board
|
|
H901XSHF
|
Huawei SmartAX MA5800 16-port XGS-PON OLT Interface Board
|
|
H902GPHFE
|
Huawei SmartAX MA5800 16-port GPON OLT Interface Board
|
|
Upstream Interface Board
|
H901NXED
|
Huawei SmartAX MA5800 8-port Enhanced 10GE Uplink Interface Board
|
|
Power Boards
|
H901PILA
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H901PISA
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H901PISB
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H902PISB
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
FAN Monitoring Boards
|
H901FMSA
|
Huawei SmartAX MA5800 EA5800-X2 fan tray
|
Compare to Similar Items
Table 3 shows the comparison.
|
Parameters
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Board Configuration
|
Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7, 10 to 17
Universal interface board slot: 0
Power board slots: 18, 19
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7
Universal interface board slot: 0
Power board slots: 10, 11
|
Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
|
|
Switching Capacity of the Control Board (load sharing mode)
|
3.6 Tbit/s
|
3.6 Tbit/s
|
3.6 Tbit/s
|
480 Gbit/s
|
|
Maximum Bandwidth per Service Slot (load sharing mode)
|
100 Gbit/s
|
100 Gbit/s
|
100 Gbit/s
|
80 Gbit/s
|
|
System Layer 2 Packet Forwarding Rate (load sharing mode)
|
5,298 Mpps
|
5,298 Mpps
|
5,298 Mpps
|
714 Mpps
|
|
Maximum Number of Concurrent 4K Video Users
|
16,000
|
16,000
|
8,000
|
2,000
|
|
Maximum Number of MAC Addresses
|
262,143
|
262,143
|
262,143
|
262,143
|
|
Maximum Number of ARP/Routing Entries
|
131,072
|
131,072
|
131,072
|
131,072
|
|
GPON Ports/ XG(S)-PON Ports
|
272
|
240
|
112
|
32
|
|
GE/FE Ports
|
816
|
720
|
336
|
96
|
|
10 GE Ports
|
408
|
360
|
168
|
16
|
