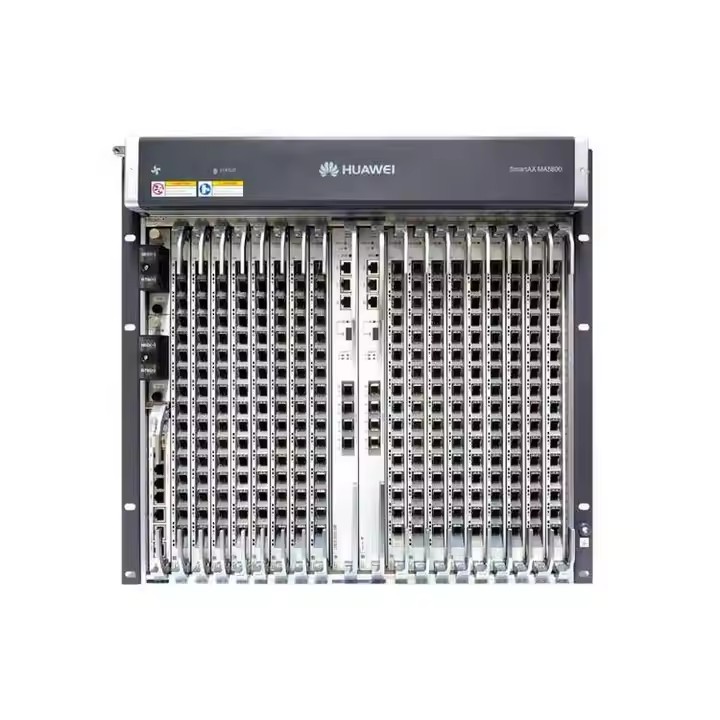

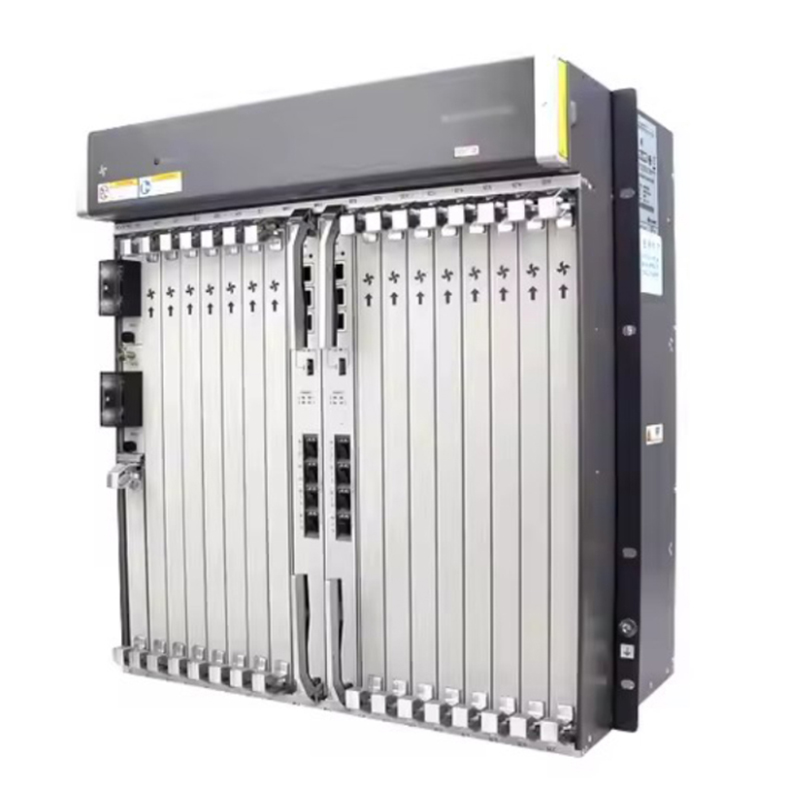

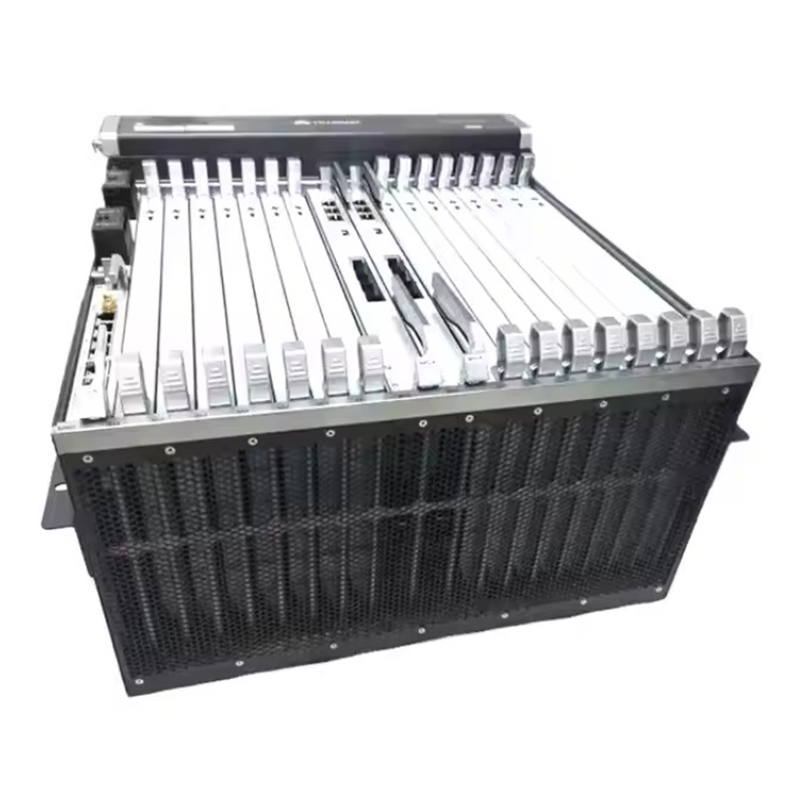

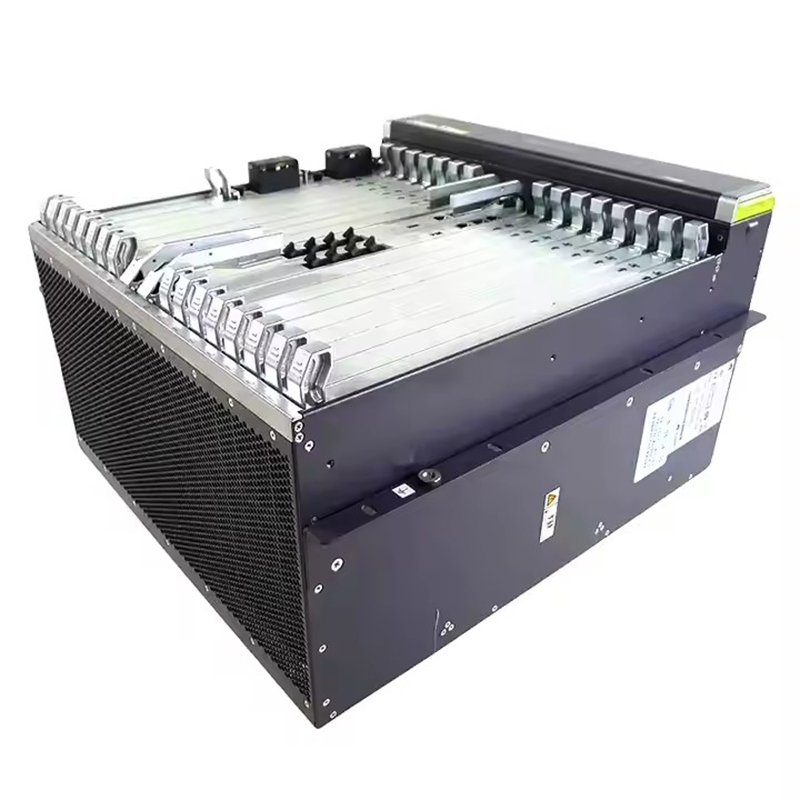

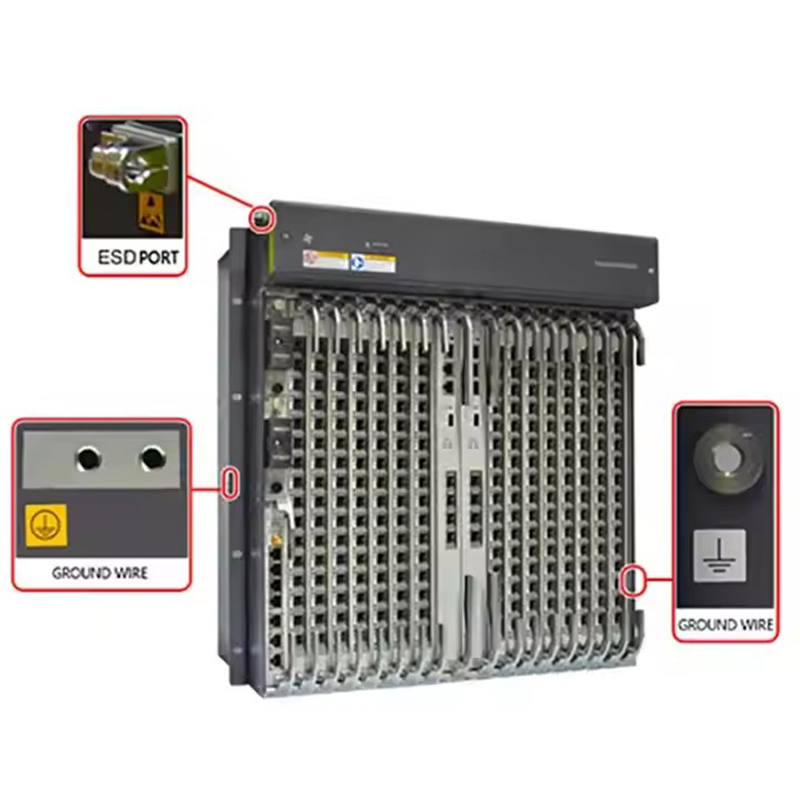

MA5800-X17 series OLT is the industry's first intelligent aggregation OLT with a distributed architecture that is positioned as the next generation OLT for NG-PON. The product is designed to help operators create networks with more bandwidth, higher speeds and smarter connectivity with better service.
The MA5800-X17 OLT provides GPON, 10G GPON, EPON, 10GE EPON, P2P GE and 10GE access, including FTTH, FTTD, FTTB, FTTC and D-CCAP, including home access, enterprise access Into the mobile bearer and WIIF hot return and other business scenarios need to achieve a full-fiber network business and is applicable in scenarios such as home, enterprise and wireless Internet access to combine all services into a single fiber network. The MA5800 functions as a high capacity aggregation device in the network.
it simplifies the network architecture by aggregating traffic from ONTs, MDUs and campus switches.
Quick Spec
Table 1 shows the quick spec.
|
Model | MA5800-X17 OLT
|
|
Supported Cabinets
|
N63E-22 or other OEM
|
|
Board Configuration
|
Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21
|
|
Dimensions
(W x D x H) |
11U high and 21 inches wide
Excluding mounting brackets: 493 mm x 287 mm x 486 mm
Including mounting brackets: 535 mm x 287 mm x 486 mm
|
|
Maximum Input Current
|
60A
|
|
Power Supply Modes
|
DC power support (dual for backup)
|
|
Working Voltage Range
|
-38.4V to -72V DC
|
|
Rated voltage
|
-48V/-60V
|
|
Switching Capacity of the Control Board (load sharing mode)
|
3.6 Tbit/s
|
|
Maximum Bandwidth per Service Slot (load sharing mode)
|
100 Gbit/s
|
|
System Layer 2 Packet Forwarding Rate (load sharing mode)
|
5,298 Mpps
|
|
GPON Ports/ XG(S)-PON Ports
|
272
|
|
GE/FE Ports
|
816
|
|
10 GE Ports
|
408
|
Product Details
Huawei SmartAX MA5800 provide these highlights:
- Distributed Architecture: High Performing and Non-blocking
- The MA5800 distributes service processing on the control board to every service board, improving system switching capacity and performance. Each slot can support a throughput of up to 100 Gbit/s, ensuring smooth services without interruption. The EA5800 supports distributed caching for channel zapping and fast starting of HD videos.
- Software Hitless Upgrade: Upgrade Anytime
- In the distributed architecture, control and forwarding are isolated, ensuring that services are not interrupted during device upgrades. This also reduces user complaints. Devices can be upgraded at daytime.
- High Reliability
- The EA5800 supports multiple protection mechanisms.
- Type B/type C dual-homing implements remote disaster recovery.
- 2 control boards and 2 power boards for redundancy.
- Dual-uplink protection.
- Integrated Multiple Access Technologies
- The MA5800 supports multiple access technologies, such as GPON, XG-PON, XGS-PON and P2P. Thus it is possible to carry multiple services on one optical network and save network construction costs.
Supported Boards
Table 2 shows the recommended boards of this model.
|
Category
|
Model
|
Description
|
|
Control Boards
|
H902MPLAE
|
Huawei SmartAX MA5800 Main Processing Board
|
|
H901MPSCE
|
Huawei SmartAX MA5800 Main Processing Board
|
|
Universal Interface Boards
|
H901CIUA
|
Huawei SmartAX MA5800 Combo Interface Transfer Board
|
|
Service Boards
|
H901XGHDE
|
Huawei SmartAX MA5800 8-port Advanced XG-PON OLT Interface Board
|
|
H901OGHK
|
Huawei SmartAX MA5800 48-port Advanced GE/FE Optical Interface Board
|
|
H901OXHD
|
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board
|
|
H902OXHD
|
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board
|
|
H901GPSFE
|
Huawei SmartAX MA5800 16-port GPON OLT Interface Board
|
|
H901OXEG
|
Huawei SmartAX MA5800 24 port Aggregationed 10GE/GE Optical Interface Board
|
|
H901TWEDE
|
Huawei SmartAX MA5800 8-port Enhanced XGS-PON OLT Interface Board
|
|
H901XSHF
|
Huawei SmartAX MA5800 16-port XGS-PON OLT Interface Board
|
|
H902GPHFE
|
Huawei SmartAX MA5800 16-port GPON OLT Interface Board
|
|
Upstream Interface Board
|
H901NXED
|
Huawei SmartAX MA5800 8-port Enhanced 10GE Uplink Interface Board
|
|
Power Boards
|
H901PILA
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H901PISA
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H901PISB
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
H902PISB
|
Huawei SmartAX MA5800 Power Transfer Board
|
|
FAN Monitoring Boards
|
H901FMLA
|
Huawei SmartAX MA5800 MA5800-X17 fan tray
|
Compare to Similar Items
Table 3 shows the comparison.
|
Parameters
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Board Configuration
|
Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7, 10 to 17
Universal interface board slot: 0
Power board slots: 18, 19
|
Control board slots: 8, 9
Service board or upstream interface board slots: 1 to 7
Universal interface board slot: 0
Power board slots: 10, 11
|
Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
|
|
Switching Capacity of the Control Board (load sharing mode)
|
3.6 Tbit/s
|
3.6 Tbit/s
|
3.6 Tbit/s
|
480 Gbit/s
|
|
Maximum Bandwidth per Service Slot (load sharing mode)
|
100 Gbit/s
|
100 Gbit/s
|
100 Gbit/s
|
80 Gbit/s
|
|
System Layer 2 Packet Forwarding Rate (load sharing mode)
|
5,298 Mpps
|
5,298 Mpps
|
5,298 Mpps
|
714 Mpps
|
|
Maximum Number of Concurrent 4K Video Users
|
16,000
|
16,000
|
8,000
|
2,000
|
|
Maximum Number of MAC Addresses
|
262,143
|
262,143
|
262,143
|
262,143
|
|
Maximum Number of ARP/Routing Entries
|
131,072
|
131,072
|
131,072
|
131,072
|
|
GPON Ports/ XG(S)-PON Ports
|
272
|
240
|
112
|
32
|
|
GE/FE Ports
|
816
|
720
|
336
|
96
|
|
10 GE Ports
|
408
|
360
|
168
|
16
|
