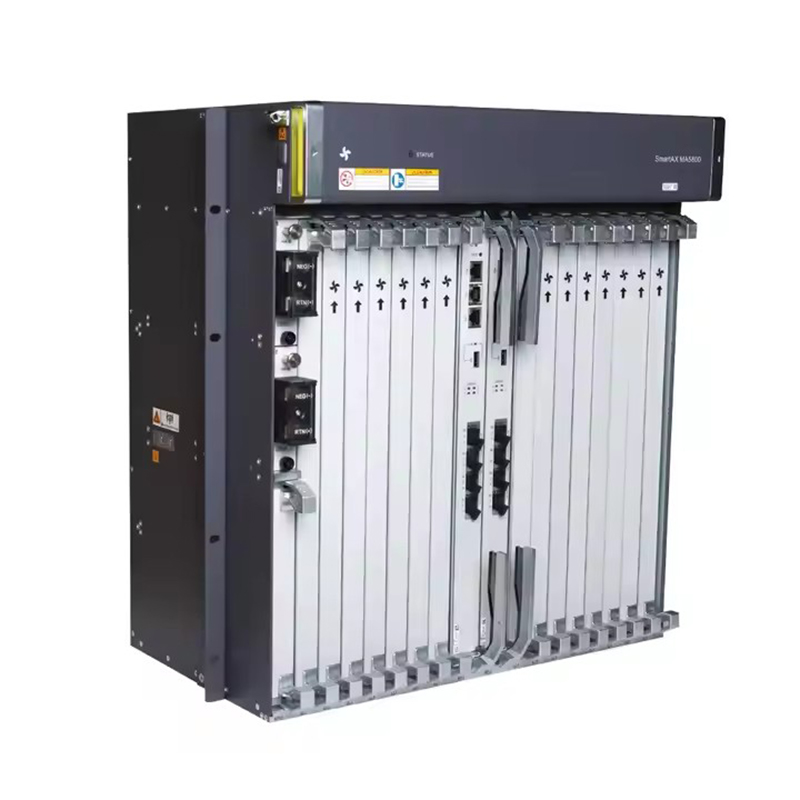

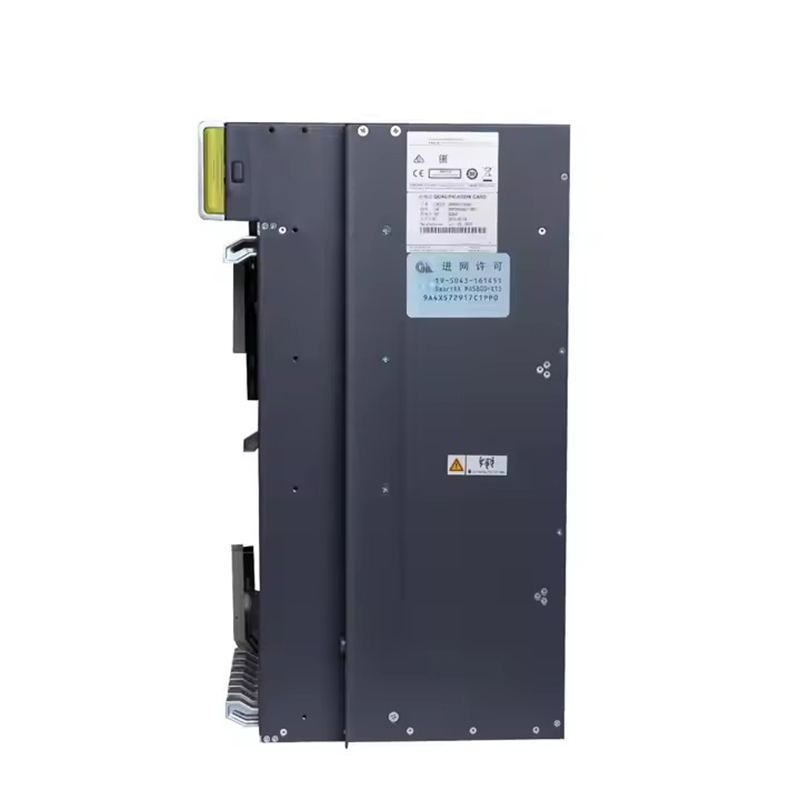

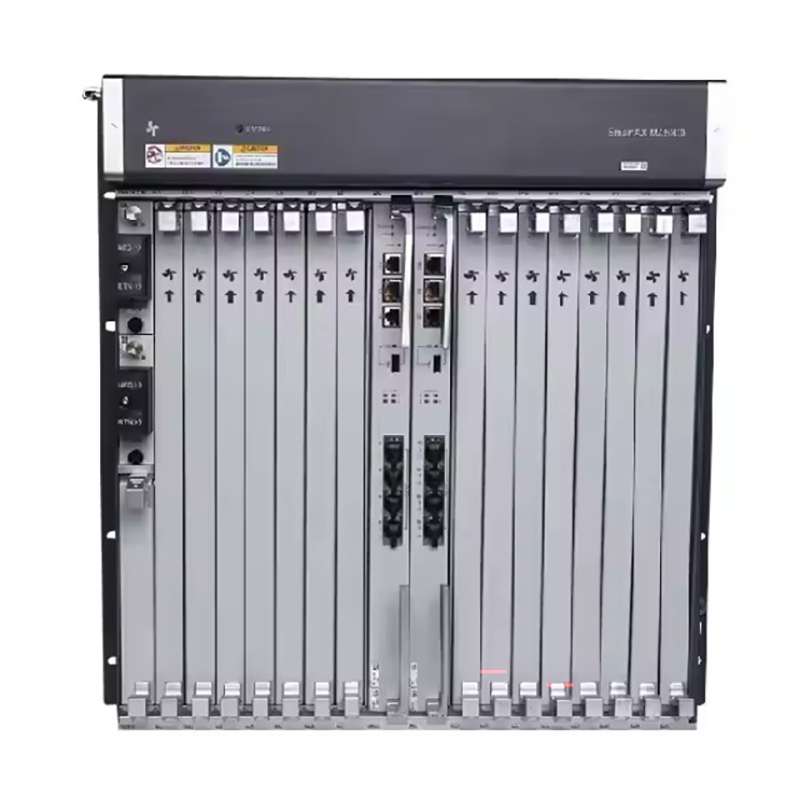

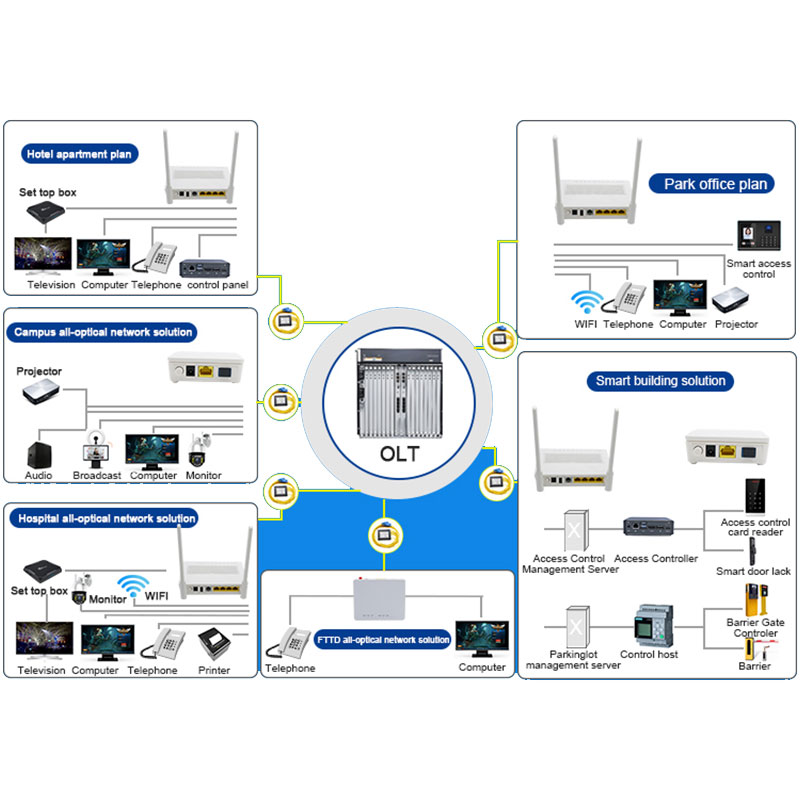

MA5800-X15 is the Huawei MA5800 model, supporting 15 service slots with backplane H901 BPIB. Developed based on the distributed architecture, the Huawei SmartAX EA5800 series multiservice access device is positioned as the next-generation OLT for NG-PON. With virtual access technology, it provides a unified carrying platform for multiple services over one fiber network, such as broadband, wireless, video, and monitoring. The EA5800 provides GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. Thus it simplifies network architecture and reduces OPEX.
Huawei MA5800 X15 is a next generation, 40G capacity Optical line Terminal (OLT), has 15 service slots, each service slot has 200G throughput capacity, smoothly evolve to 40G/100G PON. Support up to 8 times MAC address and ARP table than MA5680T, makes service configuration and expansion more easily.
16 ports GPON service board GPSF, 8 ports 10G PON service board XGHD is recommended service board for MA5800 X15, please contact with Huatenmax sales team your service ports needed.
Table 1 shows the quick spec.
Model |
|
Supported Cabinets |
N66E-22 or other OEM |

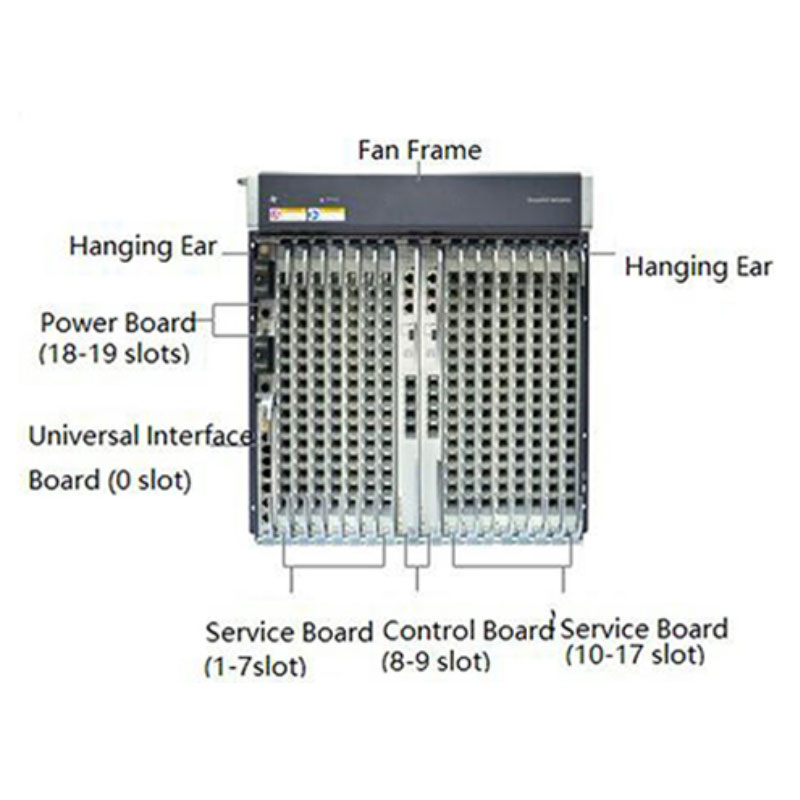

Board Configuration |
Control board slots: 8, 9 |
Dimensions |
11U high and 19 inches wide |
Maximum Input Current |
60A |
Power Supply Modes |
DC power support (dual for backup) |
Working Voltage Range |
-38.4V to -72V DC |
Rated voltage |
-48V/-60V |
Switching Capacity of the Control Board (load sharing mode) |
3.6 Tbit/s |
Maximum Bandwidth per Service Slot (load sharing mode) |
100 Gbit/s |
System Layer 2 Packet Forwarding Rate (load sharing mode) |
5,298 Mpps |
GPON Ports/ XG(S)-PON Ports |
240 |
GE/FE Ports |
720 |
10 GE Ports |
360 |
Huawei SmartAX MA5800 provide these highlights:
Table 2 shows the recommended boards of this model.
Category |
Model |
Description |

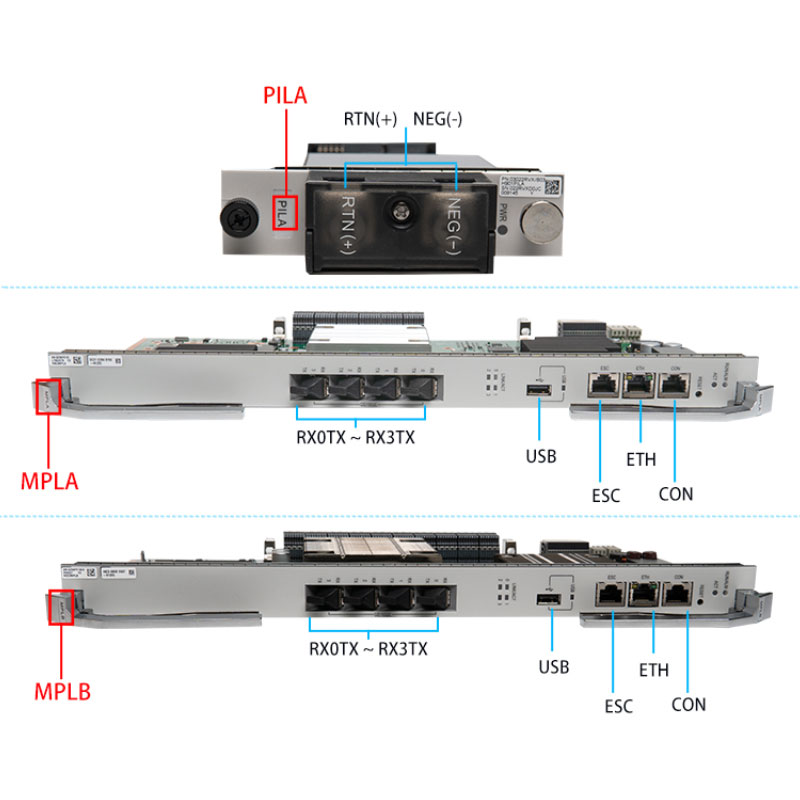

Control Boards |
Huawei SmartAX MA5800 Main Processing Board |
|
Huawei SmartAX MA5800 Main Processing Board |
||
Universal Interface Boards |
Huawei SmartAX MA5800 Combo Interface Transfer Board |
|
Service Boards |
Huawei SmartAX MA5800 8-port Advanced XG-PON OLT Interface Board |
|
Huawei SmartAX MA5800 48-port Advanced GE/FE Optical Interface Board |
||
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board |
||
Huawei SmartAX MA5800 8-port Advanced 10GE Optical Interface Board |
||
Huawei SmartAX MA5800 16-port GPON OLT Interface Board |
||
Huawei SmartAX MA5800 24 port Aggregationed 10GE/GE Optical Interface Board |
||
Huawei SmartAX MA5800 8-port Enhanced XGS-PON OLT Interface Board |
||
Huawei SmartAX MA5800 16-port XGS-PON OLT Interface Board |
||
Huawei SmartAX MA5800 16-port GPON OLT Interface Board |
||
Upstream Interface Board |
Huawei SmartAX MA5800 8-port Enhanced 10GE Uplink Interface Board |
|
Power Boards |
Huawei SmartAX MA5800 Power Transfer Board |
|
Huawei SmartAX MA5800 Power Transfer Board |
||
Huawei SmartAX MA5800 Power Transfer Board |
||
Huawei SmartAX MA5800 Power Transfer Board |
||

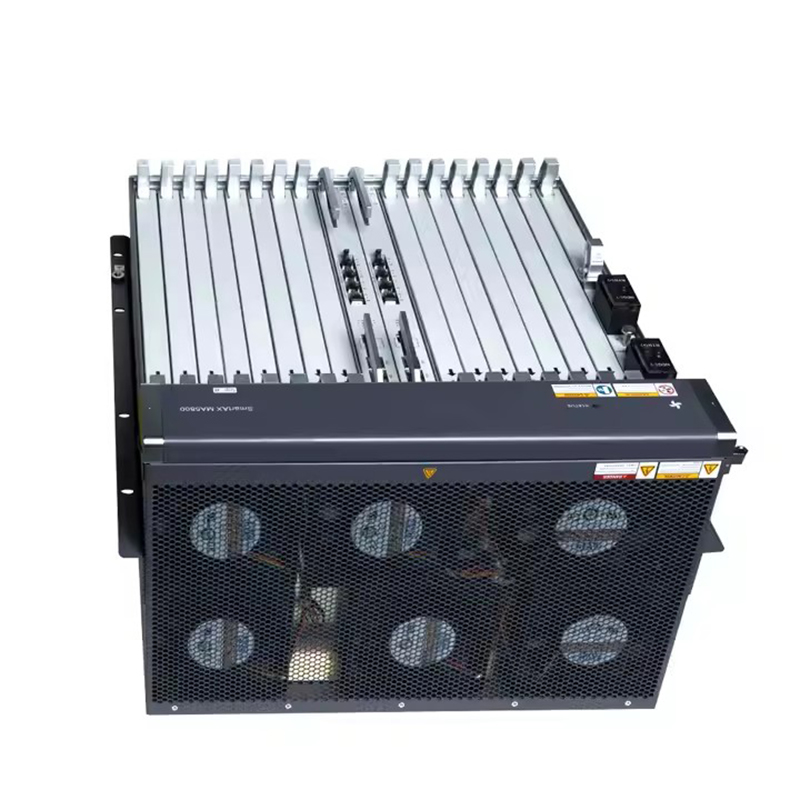

FAN Monitoring Boards |
Huawei SmartAX MA5800 EA5800-X15/X17 fan tray |
Table 3 shows the comparison.
Parameters |
||||
Board Configuration |
Control board slots: 9, 10 |
Control board slots: 8, 9 |
Control board slots: 8, 9 |
Control board slots: 3, 4 |
Switching Capacity of the Control Board (load sharing mode) |
3.6 Tbit/s |
3.6 Tbit/s |
3.6 Tbit/s |
480 Gbit/s |
Maximum Bandwidth per Service Slot (load sharing mode) |
100 Gbit/s |
100 Gbit/s |
100 Gbit/s |
80 Gbit/s |
System Layer 2 Packet Forwarding Rate (load sharing mode) |
5,298 Mpps |
5,298 Mpps |
5,298 Mpps |
714 Mpps |
Maximum Number of Concurrent 4K Video Users |
16,000 |
16,000 |
8,000 |
2,000 |
Maximum Number of MAC Addresses |
262,143 |
262,143 |
262,143 |
262,143 |
Maximum Number of ARP/Routing Entries |
131,072 |
131,072 |
131,072 |
131,072 |
GPON Ports/ XG(S)-PON Ports |
272 |
240 |
112 |
32 |
GE/FE Ports |
816 |
720 |
336 |
96 |
10 GE Ports |
408 |
360 |
168 |
16 |
Do you have any question about the MA5800-X15 or other Huawei OLT
Contact us now via Whatapp: +86 136 9226 0946 or Contact@huatenmax.com.
MA5800-X15 OLT Specification |
|
Model |
X15 |
Supported Cabinets | N66E-22 |
Board Configuration |
Control board slots: 8, 9 |
Dimensions |
11U high and 19 inches wide |
Maximum Input Current |
60A |
Power Supply Modes |
DC power support (dual for backup) |
Working Voltage Range |
-38.4V to -72V DC |
Rated voltage |
-48V/-60V |
Ambient Temperature |
-40°C to 65°C*. The EA5800 can start up at temperatures as low as -25°C. |
Ambient Humidity |
5% RH to 95% RH |
Atmospheric Pressure |
70 kPa to 106 kPa |
Altitude |
4,000m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with altitude. |
Switching Capacity of the Control Board (load sharing mode) |
3.6 Tbit/s |
Maximum Bandwidth per Service Slot (load sharing mode) |
100 Gbit/s |
System Layer 2 Packet Forwarding Rate (load sharing mode) |
5,298 Mpps |
Maximum Number of Concurrent 4K Video Users |
16,000 |
Maximum Number of MAC Addresses |
262,143 |
Maximum Number of ARP/Routing Entries |
131,072 |
Switching/Forwarding Delay |
Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets at a delay shorter than 20 μs. |
Bit Error Rate (BER) in full load |
A BER smaller than 10e-7 for a port that transmits data in full load. |
System Reliability Specifications |
System availability for typical configurations: > 99.999% |
GPON Ports/ XG(S)-PON Ports |
240 |
GE/FE Ports |
720 |
10 GE Ports |
360 |
