Position：Home / Products / Consumer / Huawei OLT

  • H80DSDMM1
  • H80DSDMM1

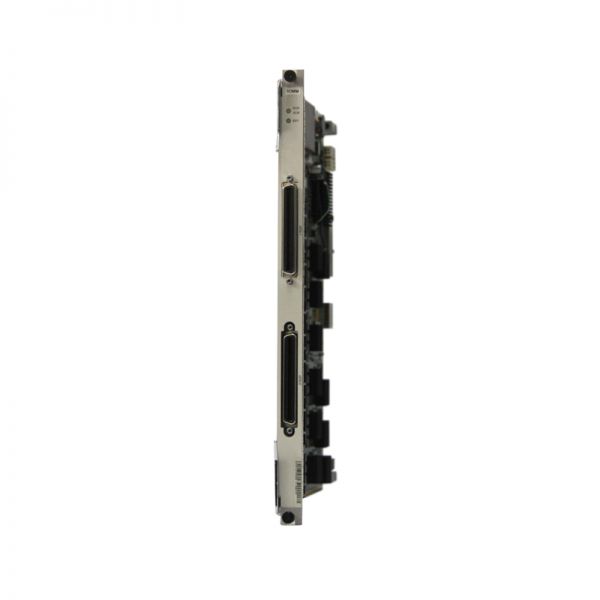

H80DSDMM1

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The H80DSDMM1 is a 48-port VDSL2 over POTS service board. It works with the VDSL transceiver unit-remote end (VTU-R) through the VDSL port to provide VDSL2 access service and support SuperVector.

Quick Spec

Table 1 shows the quick spec.

Models

H80DSDMM1

Applicable Line

VDSL2

G.INP

Yes

VDSL2 PTM Bonding

Yes (Supports a maximum of 4-pair bonding of any ports on the same board)

INM

Yes

SELT

-

MELT

Yes

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b

Compare to Similar Items

Table 2 shows the comparison.

Models

H80DSDMM

H80DSDMM1

Applicable Line

VDSL2

VDSL2

G.INP

Yes

Yes

VDSL2 PTM Bonding

Yes (Supports a maximum of 4-pair bonding of any ports on the same board, supports 8-pair bonding when being connected to the MA5694)

Yes (Supports a maximum of 4-pair bonding of any ports on the same board)

INM

Yes

Yes

SELT

-

-

MELT

Yes

Yes

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b

Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b

Get More Information

Do you have any question about the H80DSDMM1

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

H80DSDMM1 Specification

Applicable Line

VDSL2

G.INP

Yes

VDSL2 PTM Bonding

Yes (Supports a maximum of 4-pair bonding of any ports on the same board)

INM

Yes

SELT

 -

MELT

Yes

Spectrum Parameter Profile

Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b

Annex Type

G.992.1 Annex A

G.992.3 Annex A/B/J/L/M

G.992.5 Annex A/B/J/M

G.993.2 Annex A/B

Flexible Configuration Modes

Supports TR129, TI, and TR-165/TR-252.

Built-in Splitter

No

Temperature Query and High-temperature Alarm

Yes

Automatic Power Shutdown in Case of a High Temperature

Yes

Connector

Champ 64-pin
