Position：Home / Products / Consumer / Huawei OLT

  • H80DSDPM
  • H80DSDPM

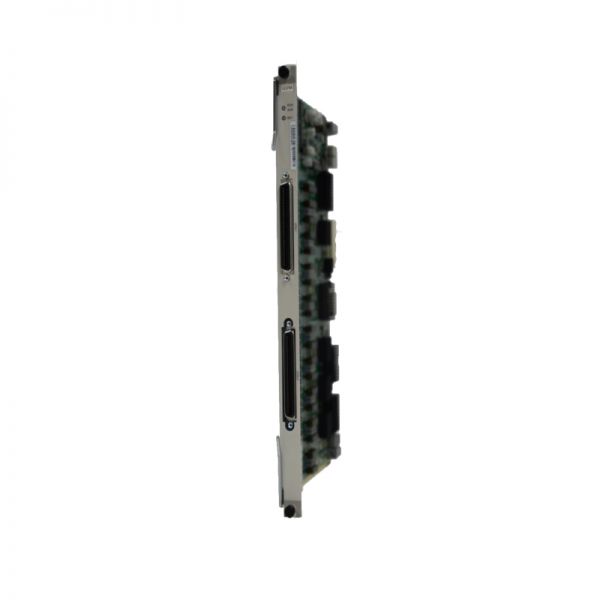

H80DSDPM

Model:
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The H80DSDPM board is a 64-channel VDSL2 service board, supporting MELT and SuperVector.

Quick Spec

Table 1 shows the quick spec.

Model

H80DSDPM

Connector

Delander 64-pin

Built-in splitter

None

Bandwidth between VDSL and control boards

6.4Gbit/s (with SCUN/SCUK)

1.3Gbit/s (with SCUB)

Maximum frame size

PTM: 2000 bytes

ATM: 1800 bytes

Product Details

H80DSDPM provides these benefits:

A high density VDSL2 board, supporting up to 64 ports

Supports 600-ohm built-in MELT functions

H80DSDPM provides these external interfaces:

2x32 VDSL2 lines

- G.993.2 (VDSL2 over POTS)

- G.997.1 (Physical layer management)

- G.998.2 (Ethernet-based multi pair bonding)

- G.998.4 (INP for DSL)

- G.994.1 (Handshake procedures)

- BF TR-129 (Protocol Independent Management Model)

Get More Information

Do you have any question about the H80DSDPM

Contact us now via Live Chat or Contact@huatenmax.com.

Specification

H80DSDPM Specification

Connector

Champ 64-pin

Built-in splitter

None

Bandwidth

• 6.4Gbit/s (with SCUN/SCUK)
• 1.3Gbit/s (with SCUB)

Maximum Frame Size

• PTM: 2000bytes
• ATM: 1800bytes

Operating temperature

-40° C to +65° C

Power consumption

With 17a profiles:
• Static: 29W
• Maximum: 73W

With 8b profiles:
• Static: 29W
• Maximum: 71W

With 35b profiles:
• Static: 29W
• Maximum: 78W

Annex

• G.992.1 (Annex A)
• G.992.3 (Annex A/L/M)
• G.992.5 (Annex A/M)
• G.993.2 (Annex A/B)

Profile

8a/8b/8c/8d/12a/12b/17a/35b

SuperVector

Supported

Bonding

8-pair

SRA

Supported

RFI notch

Supported

UPBO

Supported

DPBO

Supported

G.INP

Supported

INM

Supported

Built-in MELT

Supported

Built-in SELT

Supported

IPv6

Supported

N:1 VMAC

Supported

1:1 VMAC

Supported
