Overview

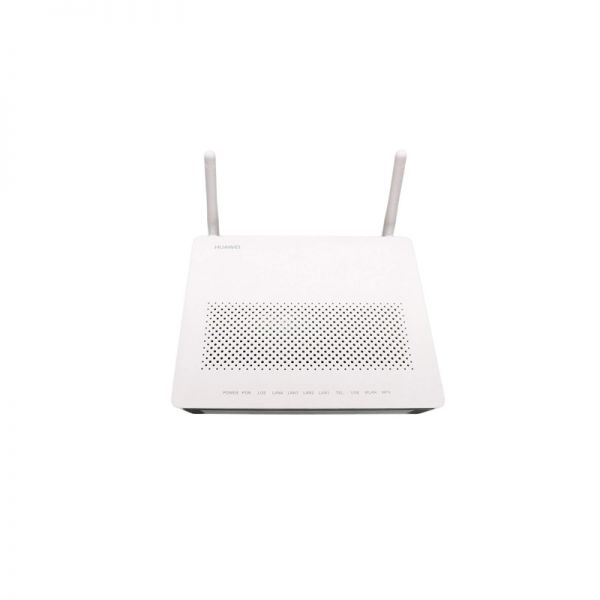

The Huawei EchoLife HG8546M is a high-performance HGU (Home Gateway Unit) GPON terminal designed to deliver reliable and fast internet connectivity. Equipped with a GPON interface, it offers superior speeds, robust performance, and an easy setup with its SC/UPC connector and Chinese plug adapter. Specialized for the Chinese market, this terminal is perfect for residential and small office applications.

Quick Spec

Product Name Huawei EchoLife HG8546M
Type HGU GPON Terminal
Interface GPON
Connector SC/UPC
Power Adapter Chinese Plug

Product Features

  • ● High-speed GPON connectivity ensuring stable and reliable performance.
  • ● Easy plug-and-play installation with SC/UPC connector.
  • ● Compact design tailored for residential and small office environments.
  • ● Supports multiple services, providing a comprehensive network solution.
  • ● Energy-efficient design to minimize power consumption.

Product Applications

  • ● Ideal for Home Internet setups, offering stable and high-speed connectivity to all household devices.
  • ● Perfect for Small Office/Home Office (SOHO) environments, ensuring reliable internet for business operations.
  • ● Suitable for Multi-Dwelling Units (MDUs), providing consistent internet access to multiple residences from a single GPON terminal.

Supported Options

Fiber Patch Cord Model FC-SC1M
Optical Splitter Model GPON-OS1x4
Wall Mount Kit Model WMK-HG8546

Compare to Similar Items

Product Differences
Huawei EchoLife HG8546D Offers additional support for dual-band Wi-Fi.
Huawei EchoLife HG8310M Designed specifically for single dwelling with fewer interfaces.
Huawei HG8245H Includes voice port (POTS) for VoIP services.

Get more information

Contact us through Live Chat or email at Contact@huatenmax.com for further information about the Huawei EchoLife HG8546M and its pricing.

Specification

HG8546M Specifications

Brand Huawei
Model HG8546M
Type GPON Terminal
Function Home Gateway Unit (HGU)
Fiber Connector SC/UPC
Wi-Fi Standard 802.11 b/g/n
Ethernet Ports 4 x GE
Telephone Ports 2 x POTS
USB Ports 1 x USB 2.0
Power Supply 12V DC, 1.5A
Adapter Type Chinese Plug Adapter
Operating Temperature 0��C to 40��C
Operating Humidity 5% to 95% (non-condensing)
Dimensions (HxWxD) 30 mm x 173 mm x 120 mm
Wavelengths TX 1310 nm, RX 1490 nm, CATV 1550 nm
Maximum Power Consumption 12W
Indicators Power, PON, LOS, LAN, TEL, USB
Color White
Compliance RoHS
Language Chinese
