Overview

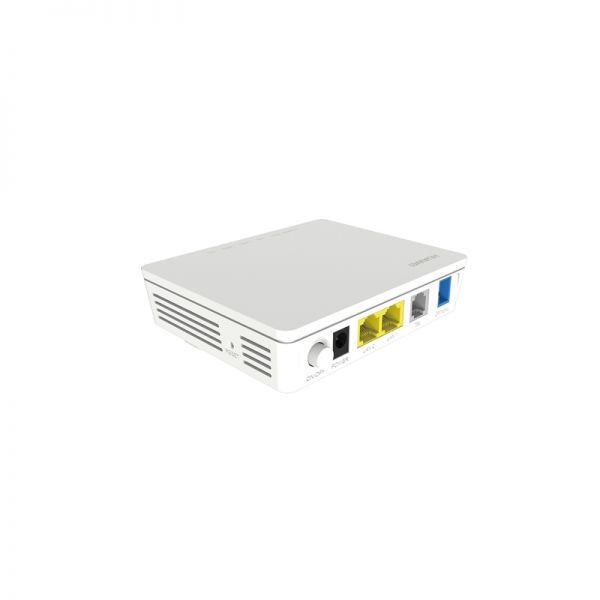

The Huawei EchoLife HG8120C is a high-performance GPON terminal designed for Home Gateway Unit (HGU) applications. This compact device supports SC/UPC and comes with a Chinese plug adapter, making it ideal for mobile and home networking solutions. Built to deliver reliable connectivity, the HG8120C stands out in versatility and efficiency for modern households.

Quick Spec

Brand Huawei
Model HG8120C
Type GPON Terminal
Connector Type SC/UPC
Plug Type Chinese Plug Adapter

Product Features

  • ● High-Speed GPON Access: Ensures high-speed internet connectivity with GPON technology.
  • ● Compact Design: Easily fits into any home setup with its sleek, compact design.
  • ● Multiple User Support: Can handle multiple devices connecting simultaneously for a seamless experience.
  • ● Energy Efficient: Designed to use minimal power without compromising performance.
  • ● Robust Security: Provides advanced security features to protect your network from threats.

Product Applications

  • ● Home Networking: Perfect for setting up high-speed internet access in homes.
  • ● Mobile Connections: Ideal for mobile users requiring reliable and fast internet connectivity.
  • ● Small Office Use: Suitable for small offices needing efficient and secure network solutions.

Supported Options

Option Model
Optical Fiber Cable HFSC-2M
Wall Mount Bracket HGH-WMB
Power Adapter HPA-15W-CN

Compare to Similar Items

Model Difference
HG8245Q2 Includes dual-band Wi-Fi support and multiple LAN ports.
HG8346M Offers additional voice ports along with data and Wi-Fi services.
HS8546V Equipped with VoIP capabilities and enhanced Wi-Fi features.

Get more information

For more details about the Huawei EchoLife HG8120C and its pricing, please contact us through Live Chat or email us at Contact@huatenmax.com.

Specification

HG8120C Specifications
Brand Huawei
Model HG8120C
Product Type GPON Terminal
Optical Interface SC/UPC
Power Adapter Chinese Plug Adapter
Language Chinese
Use Case For Mobile
Dimensions 176 x 138 x 28 mm
Ports 1 x GPON, 2 x GE, 1 x POTS
Data Rate Up to 2.488 Gbps/1.244 Gbps (downstream/upstream)
Power Supply 11 V DC, 1 A
Operating Temperature -5��C to +45��C
Operating Humidity 5% to 95% (non-condensing)
Power Consumption Less than 7 W
GPON ITU-T G.984.x compliant
Indicators Power/PON/LOS/LAN/TEL
Certification CE, RoHS
MTBF >50,000 hours
Warranty 1 year
