SFP-10G-ZCW1591

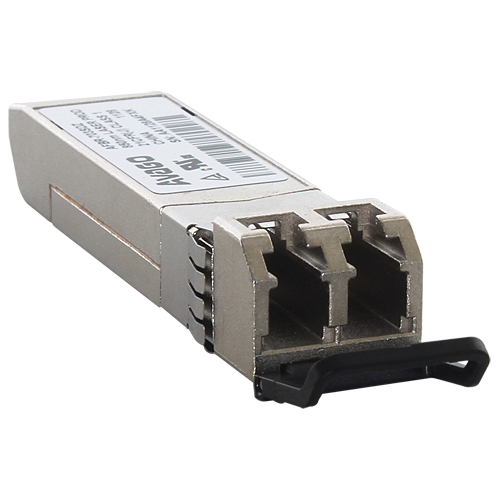

Model:Huawei SFP-10G-ZCW1591 Optical Transceiver
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Huawei SFP-10G-ZCW1591 is an advanced optical transceiver designed for high-speed data transmission. This SFP+ module supports a 10G data rate over single-mode fiber (SMF) and is optimized for distances up to 70km with a CWDM wavelength of 1591nm. It features an LC connector, providing a reliable and efficient solution for network expansions and upgrades.

Quick Spec

Brand Huawei
Model SFP-10G-ZCW1591
Form Factor SFP+
Data Rate 10G
Wavelength 1591nm
Distance 70km
Connector LC

Product Features

  • ● High-speed data transmission up to 10Gbps
  • ● Single-mode fiber support for long-distance transmission
  • ● CWDM technology with 1591nm wavelength
  • ● LC connector for easy and reliable connections
  • ● Suitable for distances up to 70km

Product Applications

  • ● Long-distance data center interconnections
  • ● Carrier Ethernet networks
  • ● High-speed metro networking applications

Supported Options

Accessory Model
Patch Cord Huawei PC-SM-LC
Transceiver Cleaning Kit Huawei CK-TC
Conversion Cable Huawei CC-LC-SC

Compare to Similar Items

Model Differences
SFP-10G-ZCW1550 1550nm wavelength, 40km distance
SFP-10G-LR 1310nm wavelength, 10km distance
SFP-10G-LRM 850nm wavelength, 220m distance, multimode fiber

Get more information

For further information about the Huawei SFP-10G-ZCW1591 and its price, please contact us through Live Chat or at Contact@huatenmax.com. Check Huawei SFP-10G-ZCW1591 price and SFP-10G-ZCW1591 datasheet, buy Huawei SFP-10G series with best price and fast shipping. Free Live Chat is supported.

Specification

SFP-10G-ZCW1591 Specifications

Brand Huawei
Model SFP-10G-ZCW1591
Product Type Optical Transceiver
Form Factor SFP+
Data Rate 10 Gbps
Wavelength 1591 nm
Transmission Distance 70 km
Connector Type LC
Fiber Type Single-mode
Feature CWDM
Compatibility Compliant with IEEE 802.3ae
Operating Temperature Range 0°C to 70°C (32°F to 158°F)
Storage Temperature Range -40°C to 85°C (-40°F to 185°F)
Power Consumption Less than 1.5W
Digital Diagnostics Monitoring Yes
Safety Certifications CE, FCC, RoHS
MTBF Over 1 million hours
Modulation Type NRZ
ESD Protection Human Body Model: Class 1A
EMI Immunity EN55022 Class B
Power Supply Voltage 3.3V
