SFP-10G-ZCW1511

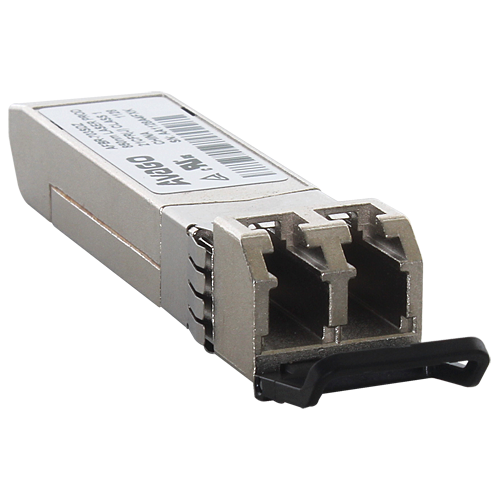

Model:Huawei SFP-10G-ZCW1511 Optical Transceiver
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Huawei SFP-10G-ZCW1511 is a high-performance optical transceiver designed to support 10G network speeds over single-mode fiber. Featuring a CWDM wavelength of 1511nm, this SFP+ module is capable of transmitting data over distances up to 70 kilometers. It is an ideal solution for long-distance data transmission, offering reliability and efficiency for various network applications.

Quick Spec

Brand Huawei
Model SFP-10G-ZCW1511
Form Factor SFP+
Data Rate 10G
Wavelength 1511nm
Distance 70km
Connector LC

Product Features

  • ● Supports 10G data rate for efficient data transmission.
  • ● Utilizes CWDM technology for optimized wavelength multiplexing.
  • ● 1511nm wavelength for enhanced performance in specific networks.
  • ● Capable of long-distance transmission up to 70km.
  • ● LC connector type ensures reliable fiber connection.

Product Applications

  • ● Ideal for long-haul telecommunications networks.
  • ● Suitable for data center interconnectivity.
  • ● Perfect for metropolitan area networks (MANs).

Supported Options

Accessory Model
Patch Cable LC-LC-3M
Optical Attenuator ATT-10DB
Cleaning Kit Cleaning-FTTH

Compare to Similar Items

Model Difference
SFP-10G-ZCW1513 Uses 1513nm wavelength
SFP-10G-ZCW1490 Uses 1490nm wavelength
SFP-10G-SR Supports only up to 300m transmission

Get more information

For further details about the Huawei SFP-10G-ZCW1511, contact us through Live Chat or Contact@huatenmax.com. Check Huawei SFP-10G-ZCW1511 price and SFP-10G-ZCW1511 datasheet, buy Huawei SFP-10G-ZCW1511 Optical Transceiver with the best price and fast shipping. Free Live Chat is supported.

Specification

SFP-10G-ZCW1511 Specifications

Brand Huawei
Product Name SFP-10G-ZCW1511
Form Factor SFP+
Data Rate 10 Gbps
Transmission Distance 70 km
Wavelength 1511 nm
Connector Type LC
Mode Type Single-mode
Optical Power Budget 24 dB
Tx Power -1 dBm to 4 dBm
Rx Sensitivity -25 dBm
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Power Consumption Less than 1.5 W
Laser Type DFB (Distributed Feedback)
EMI Class 1
Compliance RoHS, MSA, SFF-8472
DDM (Digital Diagnostic Monitoring) Supported
MTBF Over 1 million hours
Application 10G Ethernet, 10G Fibre Channel
Firmware Updatable
Housing Material Metal
