Position：Home / Products / Networking Accessories / Modules & Cards / Huawei Optical Transceivers

  • DWDM-XFP10G-1550-92
  • DWDM-XFP10G-1550-92

DWDM-XFP10G-1550-92

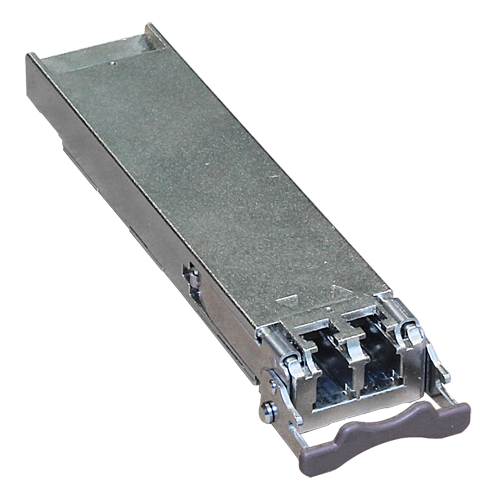

Model:Huawei DWDM-XFP10G-1550-92 Optical Transceiver
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

The Huawei DWDM-XFP10G-1550-92 is a high-performance DWDM Optical Transceiver designed for long-distance single-mode fiber optic communications. Operating at a wavelength of 1550.92nm, this XFP module supports 10G data rates and can cover distances up to 80km. It's the ideal solution for extending the reach of your network infrastructure.

Quick Spec

Brand Huawei
Model DWDM-XFP10G-1550-92
Wavelength 1550.92nm
Data Rate 10G
Distance 80km
Connector LC

Product Features

  • ● High-performance DWDM technology for enhanced data transmission rates.
  • ● Supports 10G data rates for high-speed network requirements.
  • ● Operates over single-mode fiber (SMF) up to 80km.
  • ● Compact XFP form factor for efficient space utilization.
  • ● Compliant with industry standards to ensure compatibility.

Product Applications

  • ● Long-distance data center interconnections, enabling high-bandwidth communication over 80km.
  • ● Metropolitan area networks (MANs) requiring robust and reliable optical transceivers.
  • ● Telecommunication infrastructure upgrades and enhancements for increased network performance.

Supported Options

Accessory Model
Compatible Optical Patch Cable OPT-CAB-10G-SM
Optical Transceiver Demodulation Tool DEM-TOOL-01
XFP Transceiver Protective Case XFP-CASE-01

Compare to Similar Items

Model Differences
Huawei DWDM-XFP10G-1550-33 Different wavelength of 1550.33nm, suitable for other specific channels.
Huawei DWDM-XFP10G-1600-92 Extended wavelength of 1600.92nm for specific network configurations.
Huawei DWDM-SFP10G-1550-92 SFP+ form factor, suitable for slots supporting such modules.

Get more information

Check Huawei DWDM-XFP10G-1550-92 price and DWDM-XFP10G-1550-92 datasheet, buy Huawei DWDM-XFP10G-1550-92 with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or Contact@huatenmax.com.

Specification

Huawei DWDM-XFP10G-1550-92 Specifications

Brand Huawei
Model DWDM-XFP10G-1550-92
Type DWDM Optical Transceiver
Form Factor XFP
Data Rate 10G
Optical Wavelength 1550.92nm
Maximum Distance 80km
Connector Type LC
Transmission Media Single-mode
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Maximum Power Consumption 3.5W
Hot Swappable Yes
Digital Diagnostics Yes
Compliance MSA Compliant
Receiver Sensitivity -14 dBm
Output Power -1 to +4 dBm
Modulation Format NRZ
EMI Standards FCC Part 15 Class B
ESD Protection 2kV (HBM)
